WS-2030-4A
2000x3000mm
9.0kw
Servo
Syntec
Cast iron
Product Description
WS-2030-4A 4 Axis CNC Wooden Airplane 3D Model Wood Molding Machine
Applicable Industry
> Wood molds milling and engraving of automobiles, motor cars, ships, aviation, cast iron, etc.;
> Molding and milling of MDF, aluminum, wood, paraffin, gypsum, etc;
> Bracketing and engraving of styrofoam (EPS) molds for automobiles, ships, yachts, rail transit, etc.
> Other industry molds: electrical molds, lighting molds, ceramic sanitary ware, large musical instruments, three-dimensional curved surfaces, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, automotive bumper molds, automotive instrument panel molds, etc.
This wood molding machine can manufacture the following effects: engraving, cutting, milling ,drilling, relief, shadow, encasement and so on.
Product features:
1. The wood molding machine spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which can designed by CAM softwares.
2. 3D Model Wood Molding Machine Heavy-duty structure to guarantee the stability. The 4 axis wood molding machine structure is welded by thick steel tube,then processed by professional maching center to mill the surface of guide rails and gear rack and drill holes,rust cleaning,then painting.
3. 3D Model Wood Molding Machine Beautiful and scientific structure design. For this large wooden molding machines, machines use disassemble design to load into container.
3. This wood molding machine equips with world class components: famous spindle, Yaskawa servo motors and drivers, Delta driver, Taiwan made guide rails and ballscrews,helical gear rack, best quality cable and components.
4. This cnc wood molding machine has professional 4-Axis control system,multi-functional,stable and easy to learn and operate.
Technical Parameter:
1 | X,Y,Z Working Area | 2000*3000*1000mm or as customized |
2 | Table Size | 3000*400*2300mm or as customized |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1800mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | T-slot table (Vacuum and T-slot option) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9KW |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | 850W /1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3/Ucancam/ powermill/UG |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 3500X2100X2300mm |
26 | N.W. | 6000KG |
27 | G.W. | 6500KG |
28 | Optional Parts | Dust Collector |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors |

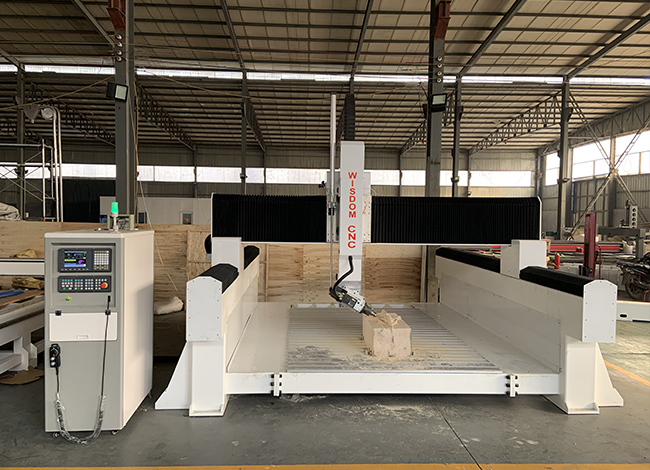

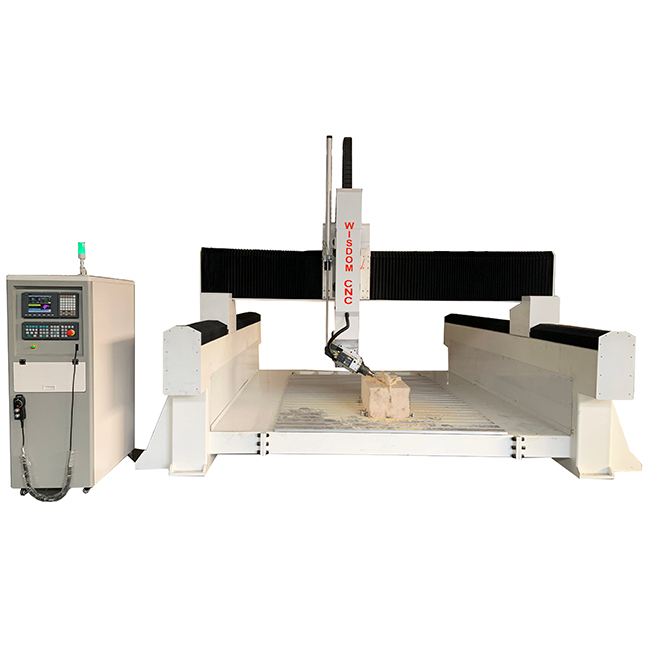

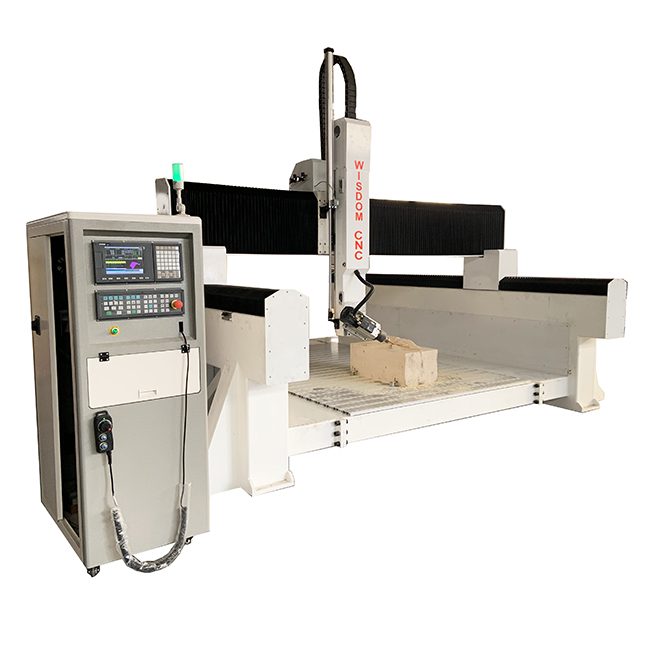

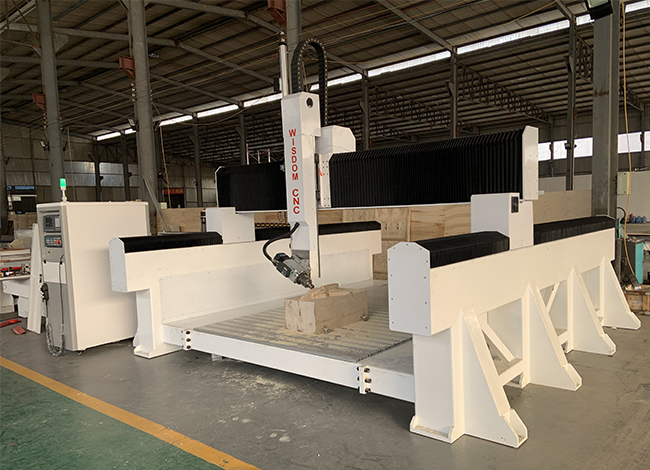

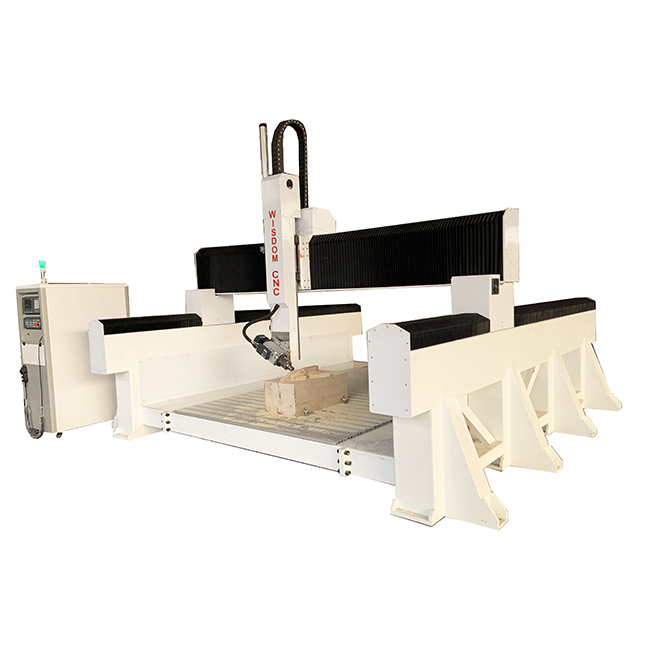

Details of 3D Model Wood Molding Machine:
Main 3D Model Wood Molding Machine project and customer cases:
This wooden molding machine engraves all kinds of large wooden molds, nonmetallic molds, cut polyfoam; especially automotive foam mold, polyfoam casting mold making, styrofoam mold making, EPS cutting, wooden ships mold, aviation and train wood molds. And wood mold casting, food mold (such as moon cake mold) and other precision mold making.
Company Information
Company introduction:
Jinan Wisdom CNC Equipment Co., Ltd is one of the premium and quality-focused manufacturer and supplier in China integrating manufacture, research, marketing and service. We design, develop and manufacture CNC router machine (CNC wood router, stone engraving machine, metal engraving machine, 3 axis CNC router, 4 axis CNC router, 5 axis CNC router, 3D CNC router, CNC milling machine), CNC wood turning lathe, CO2 laser engraving and cutting machine, laser marking machine, fiber laser cutting machine, plasma cutting machine, etc.
Quality makes the core of our organization's philosophy, we are committed to providing customers with high quality products, competitive prices, excellent services and customized solutions. For decade of years development, our products have good market in more than 70 countries and regions including Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. Besides, we have 24hr customer service hot line, regularly consult customers' needs and suggestions to further improve our products and service.
We make use of the rich Internet information, integrate global market resource, and create a unique marketing and brand promoting mode belonging to "Wisdom". We insists on customer-oriented and non-stopping innovating to achieve common benefits, we whole-heartedly supply products with competitive price and perfect solutions to all users in all kinds of industries.
Packing and Delivery
Packaging and delivery:
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
FAQ
FAQ:
A. This is our first cooperation with you, are you believable?
First we are legal China company, with complete formalities.
Second we have been in cnc business industry for 8 years, with long term cooperated agent and end client, and we work for exporting for 8 years, we deal all based on machine quality and honest service.
Third, we can deal from alibaba assurance which can make sure your quality and delivery, we accept all the supervision from the third party.
B. how to select the cnc router machine for our first time?
We will select suitable machine according to your detailed work, better show me your sample picture.Then please tell me the machine size you want, we can customed for you.
Last about the configuration we will make decision according to your work and budget.
C. How to deal with you?
We will make a PI according to our negociate with you about the machine details.
Then you can arrange prepayment for us, after we receive prepayment, we will arrange the manufacture, when machine done, we will take pictures and videos for you, if you satisfy please arrange the balanced payment, then i will arrange ship for you.
D. What's the warranty?
We will provide full 24 months warranty, and whole life time free service. Video call, online support, email communications, Teamviewer support are available.
E. how to learning machine?
We will provide operation manual and working video to guide you how to use it. Our engineer always support as well.
