Product Description

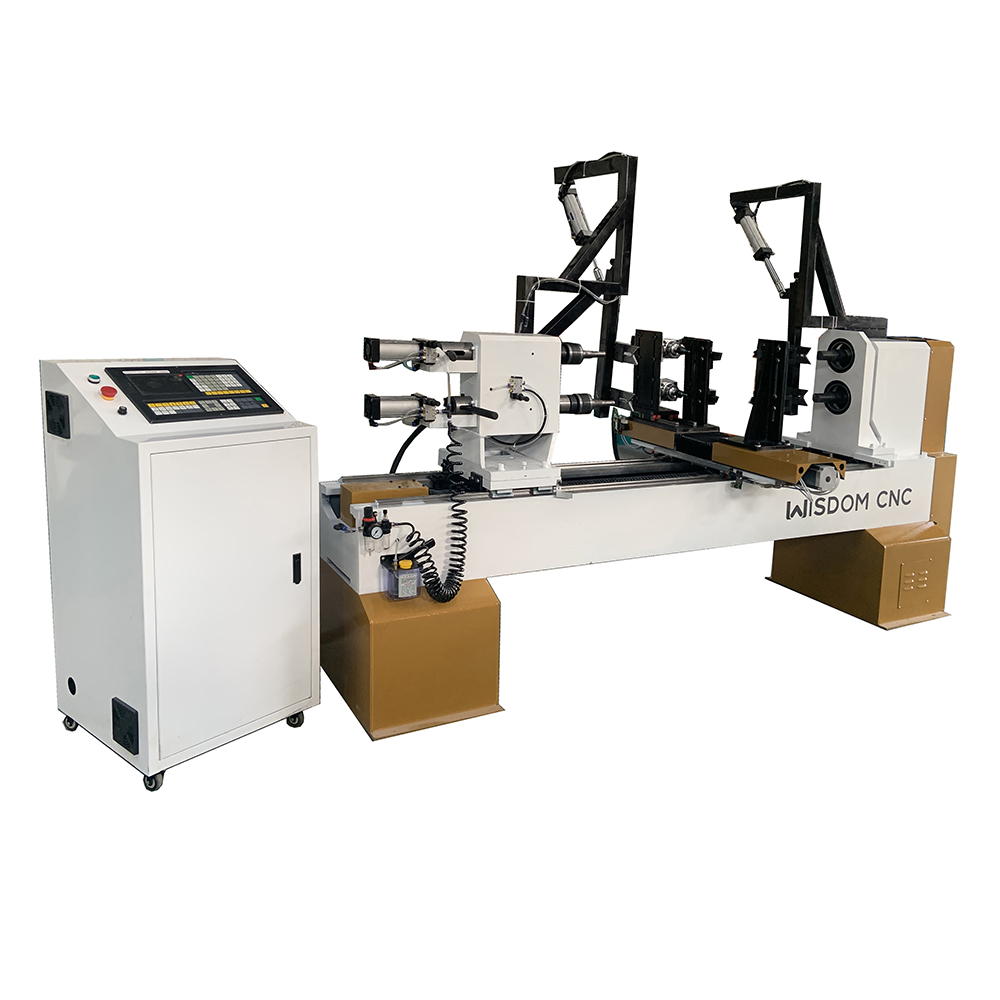

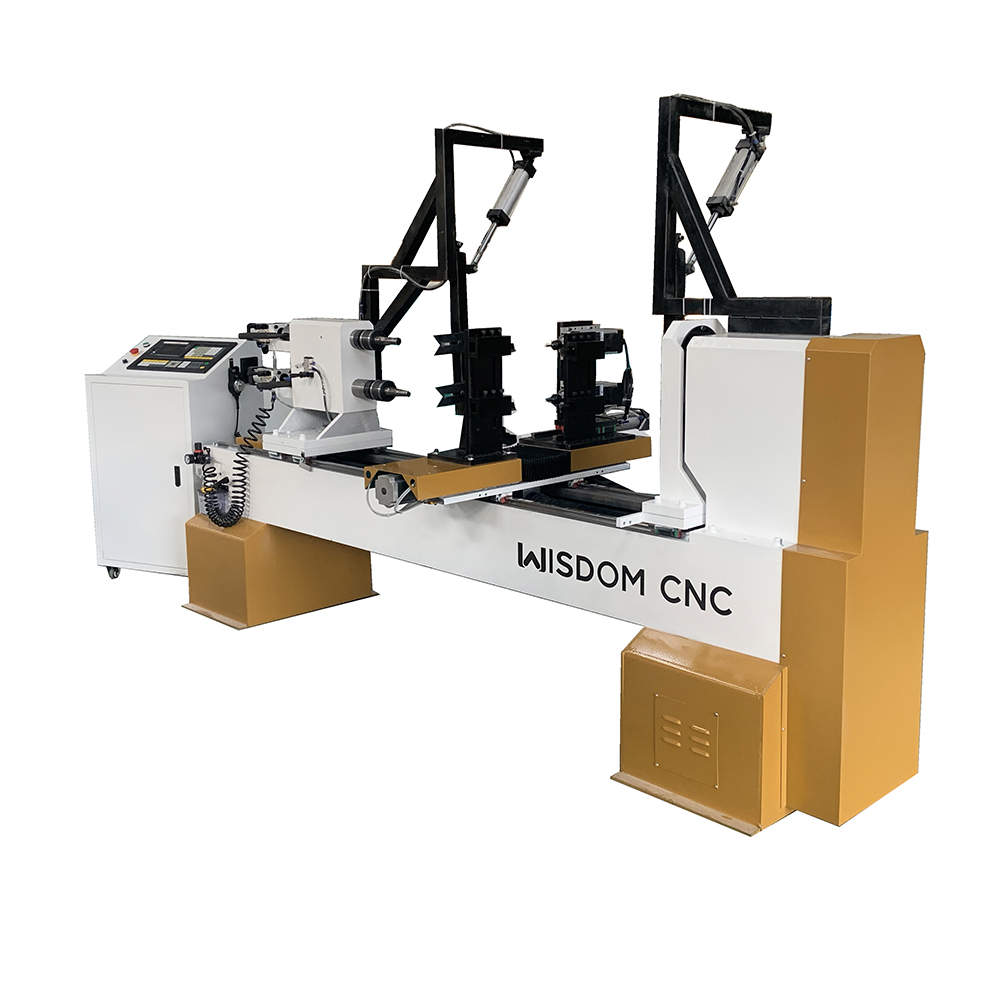

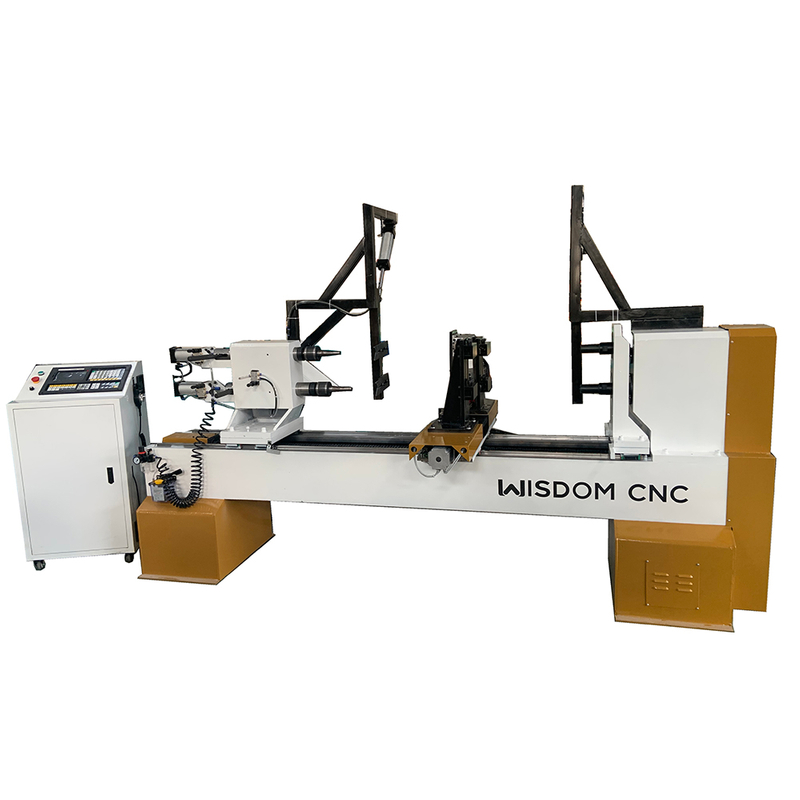

This double axis cnc wood lathe is mainly used for processing wooden handle, baseball bat, wood chair legs, staircase column, stairway balusters, stairway newel posts, dining table legs, sofa table legs, Roman column, wooden furniture, chair arm posts, etc.
Model | WS-L1516 |
Max turning diameter | 160～300mm |
Max turning length | 1500mm (2000mm, 2500mm, 3000mm could be customized) |
Number of axis | Double axis, four lathe cutter |
Max feed rate | 200cm/min |
Max setting unit | 0.01cm |
Driving system | Servo motor and drivers |
Control system | LCD screen |
Spindle speed | 0-3500r/min |
Fixing part | Auto fixing device |
Working speed | 5X60cm Standard staircase column 40s/pcs |
Power supply | 380v or 220v 50/60hz |

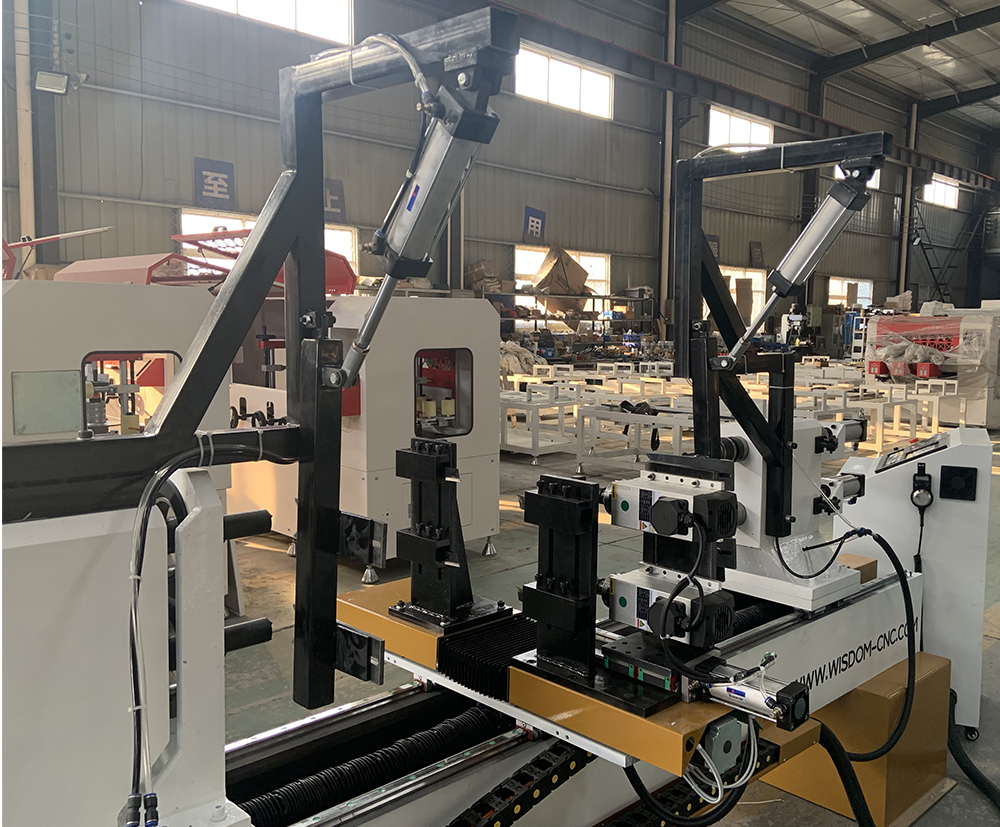

| ◀ Auto fixing device |
Double Axis, four blades ▶ |
|
| ◀Upgrade LCD Controller |
Double Air-cooling Engraving Spindle▶ |
|
| ◀Air cylinder |
Air filter and oil lubrication▶ |
|
| ◀Electrical control cabinet and Yako drivers |
Wood Turning | √ |
Wood Milling | √ |
Wood Broaching | √ |
Wood Grooving | √ |
Wood Twisting Line | √ |
Wood Engraving | √ |
Auto Fixing Central Point | √ |
