Product Description
Control System | Fangling 2300 |
Driving System | Stepper or Servo motor |
Power Supplier | US Hypertherm or China Huayuan |
Relay accessories | Schneider |
X Guide Rail | HIWIN square guide rail |
THC | Automatic torch height controller |
Cutting Torch Lifting Mode | Arc Voltage Height Controller |
| Drilling head | One unit |
| Plasma Torch | One unit |
Flame Torch | One unit |
Nesting Software | FASTCAM |

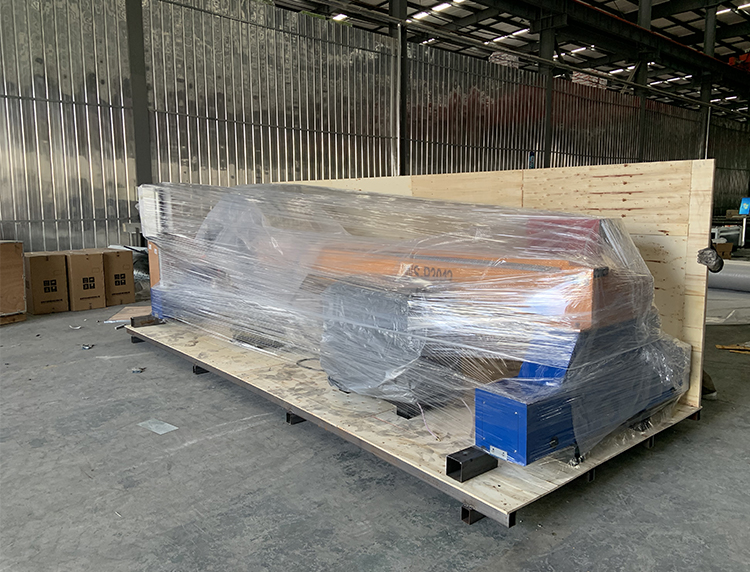

Packing type | Standard plywood case |

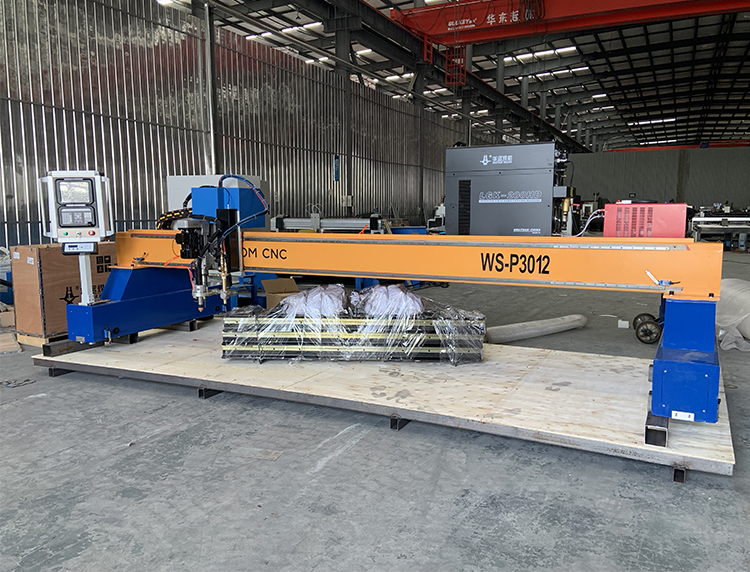

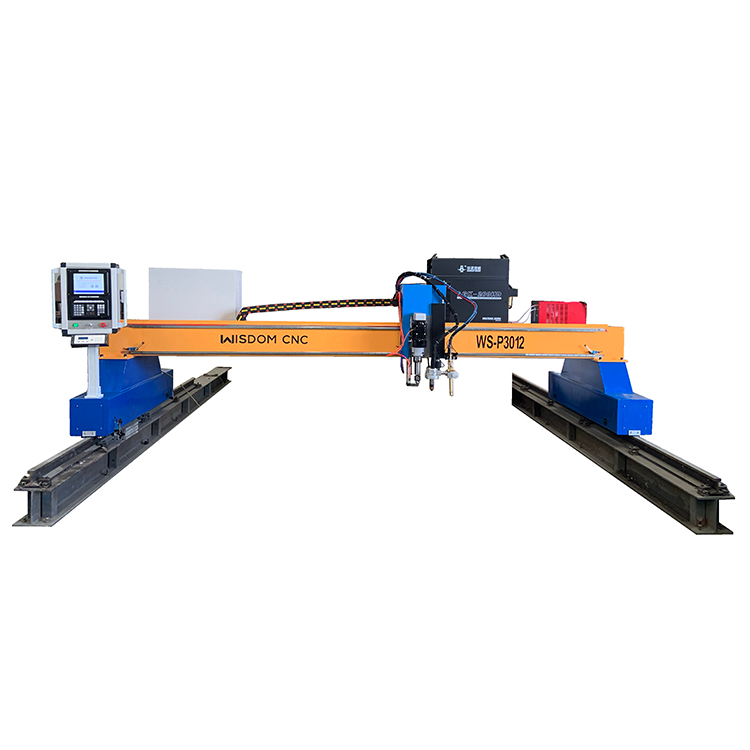

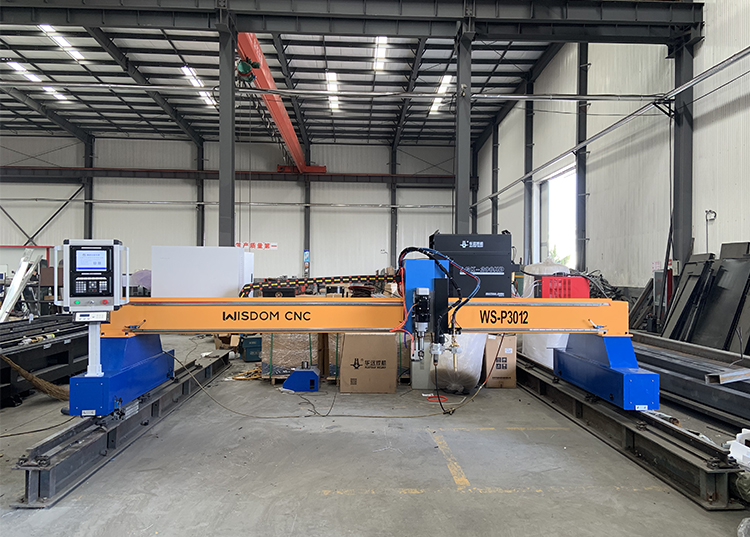

Model | WS-P3012 |
Working Voltage | AC 220V/380V, 50HZ/60HZ |
Working Size | 3000mm*12000mm |
Cutting Speed | 0-12000mm/min |
Plasma Cutting Thickness | 0-30mm |
Flame Cutting Thickness | 30-200mm |
| Drilling size | 0-16mm |
Power source | 200A |
Working position accuracy | ±0.1mm |
File output mode | USB interface |
Command Code | G code |
 | 1. Multifunctions of plasma cutting, flame cutting and drilling |

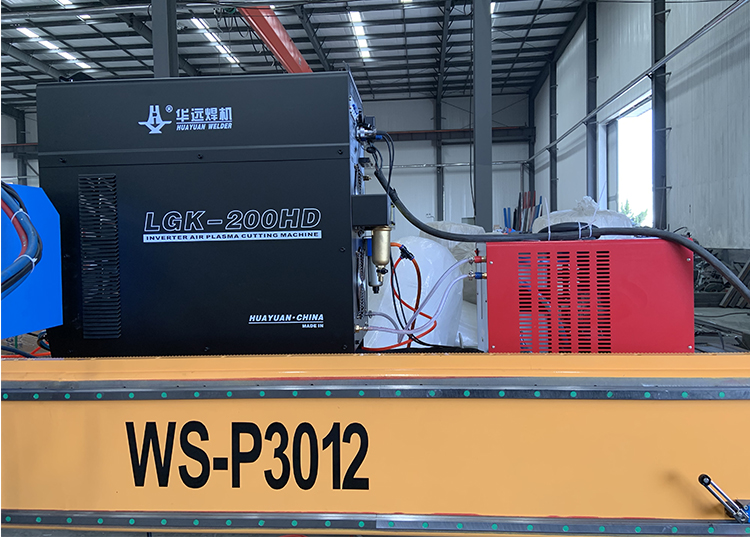

2. China Huayuan 200A plasma source This 200A Huayuan plasma cutting machine is an updated model based on LGK-200IGBT, has plasma torch consumables life monitoring function; Intelligent fan is used to reduce the dust, which makes this plasma cutter more reliable; Max cutting thickness for cnc machine can upto 45mm; With gas pressure and coolant liquid flow displaying, detecting, warning and controlling function; With automatic protection of over-heating and low voltage; | |

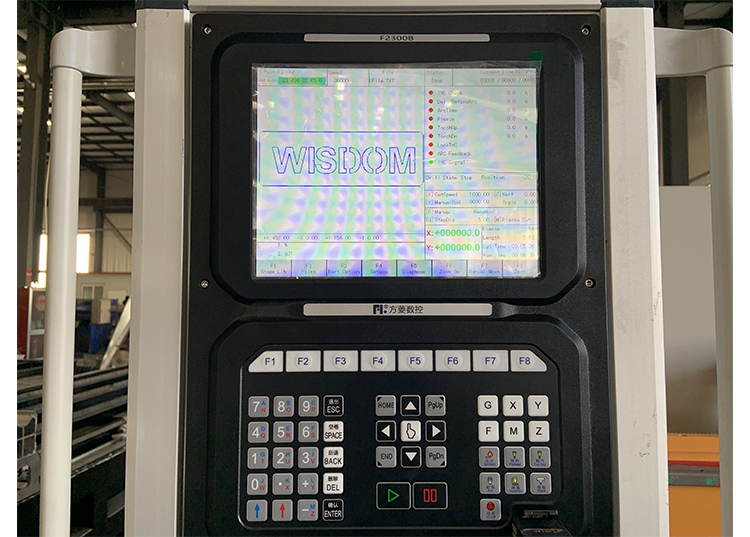

 | 3. Fangling 2300B control system ● The system upgrade adopts the U disk upgrade method, which is convenient, simple and practical, and provides a lifetime upgrade service ● Support different mode of plasma cut, flame cut and drill mode ● Support edge cutting, which can reduce the preheating time for thicker steel plates ● According to the thickness of the steel plate, the speed can be automatically limited at the corner to effectively prevent over-burning ● With power-off, breakpoint protection memory function |
4. Automatic torch height controller During cutting process, the cutting current always keep constant, and the cutting arc voltage will be changed with the height of torch. When the distance between the torch nozzle and work piece increases, the arc voltage increases, on the opposite, the arc voltage will decrease. AVC168 plasma arc voltage torch height controller will detect the voltage changes, then control the distance between cutting torch andwork piece via the lifting motor in order to keep the arc voltage within a given range, so that the height of cutting torch is kept within a corresponding range. |  |

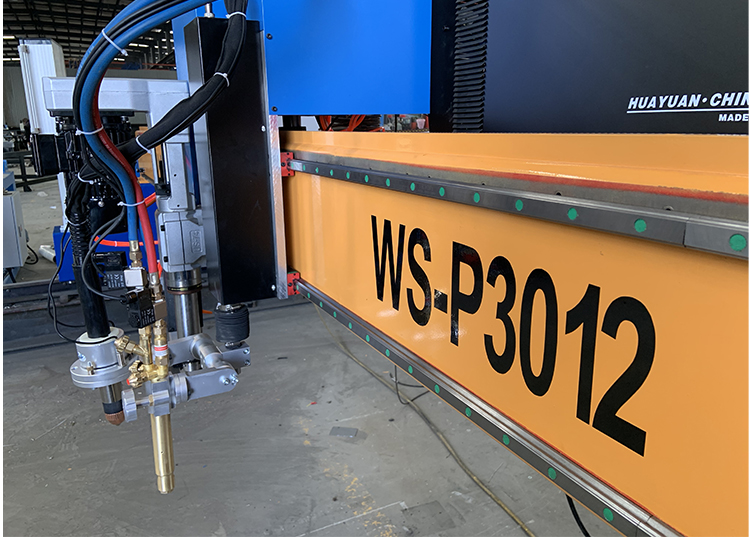

 | 5. Linear square guide rail transmission Ensure high precision, good running stability and long service time |
 |  |
