Product Description
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.
Model | WS-P1530 | WS-P2030 | WS-P2040 | WS-P2060 |
Working area | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x6000mm |
Cutting head | Plasma Cutting torch + Flame cutting torch | |||
Cutting thickness | Plasma by 30mm Flame by 200mm | |||
Control System | Advanced Starfire | |||
Transmission System | Rack Pinion And Hiwin Linear Rails | |||
Driving System | Stepper Motor and Drivers Option: Servo motor and drivers | |||
Max. Cutting Speed | 12000mm/Min | |||
Max. Travelling Speed | 20000mm/Min | |||
Working Voltage | 380V 220V/3ph 50/60HZ | |||
For more machine details and specifications, please feel free to communicate with us by email or whatsapp.
Steel | √ |
Stainless Steel | √ |
Carbon Steel | √ |
Iron | √ |
Aluminum | √ |
Titanium | √ |
Galvanized sheet | √ |
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN
| LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm
| Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |

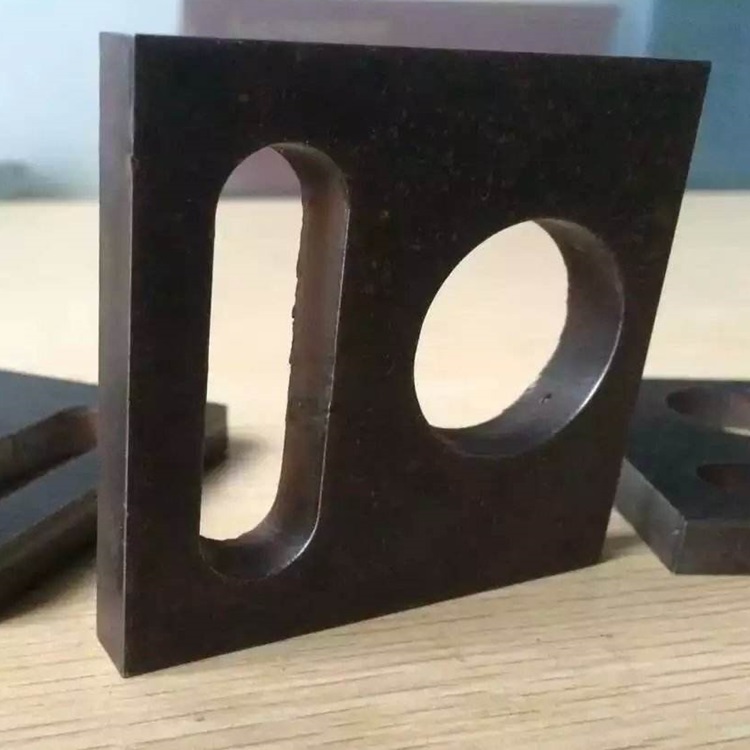

What's the design can be processed？
 |  |  |
Welcome to contact with us now to get detailed specifications, special offer and free accessories.
Packing and Shipping

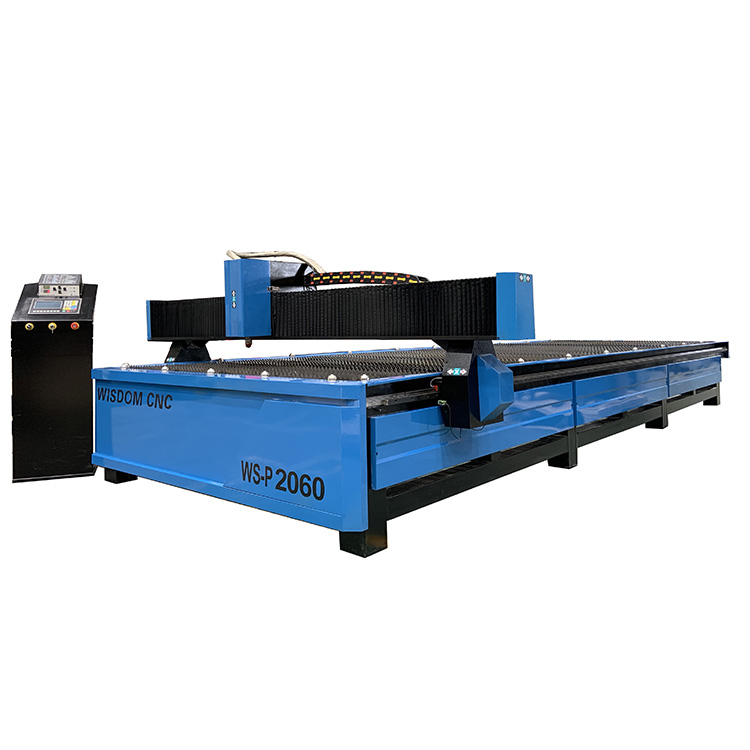

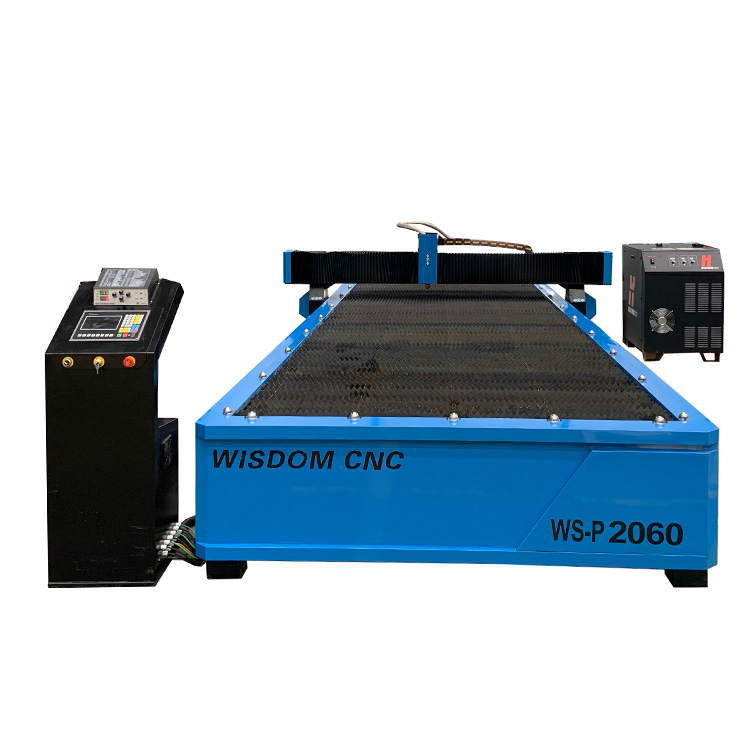

WS-P2060 Table plasma cutting machine will be loading by 40ft container or LCL.
