Product Description
1. The beam uses light structural design, with good rigidity structure, light weight and small movement inertia.
2. The gantry structure, X,Y axis all use straight rail that make the machine driving smoothly with high-precision.
3. CNC system equipped with automatic arc starting and large capacity strong function, convenient to read and process.
4. Current can be adjusted from power supply according to different thickness of material.
5. Good software compatibility, it support UCANCAM, STARCAM, FASTCAM,etc.
All kinds of metal materials such as steel, copper, aluminum, stainless steel, iron plate, aluminum plate, galvanized sheet, white steel plate, titanium plates, and so on.
Applies in cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.

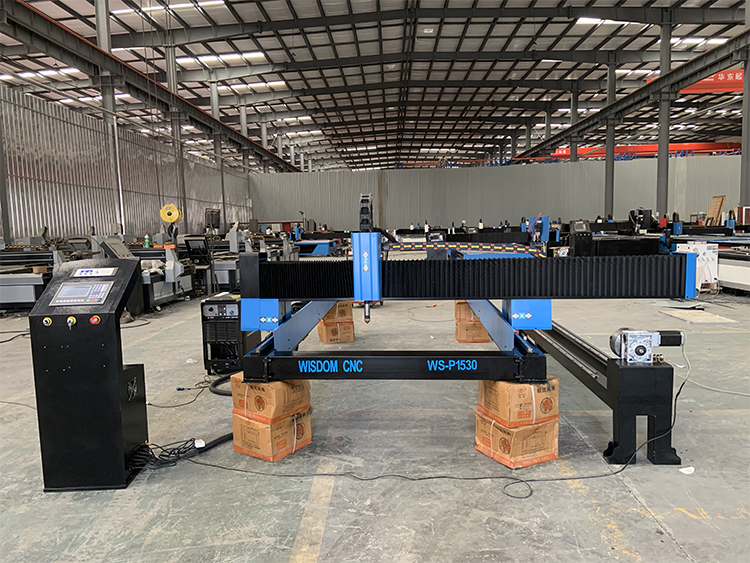

Model | WS-P1530 |
Working area | 1500*3000mm |
Head | Plasma cutting torch |
Usage | Metal plate or pipe cutting (rotary attachment optional) |
Design software | Fastcam |
THC | Torch Height Controller |
Repeat positioning accuracy | ±0.05mm |
Process precision | ±0.3mm |
Transmission system
| Square guide rail |
Rack pinion | |
Max. cutting speed | 6000mm-90000mm/min |
Working voltage | AC380 /220V 3PH 50 /60HZ |
Control system | Starfire control system |
Instruction format | G code |
Drive system | Stepper motor and drivers |
Drive mode | Double side driving motor |
File output mode | USB interface |

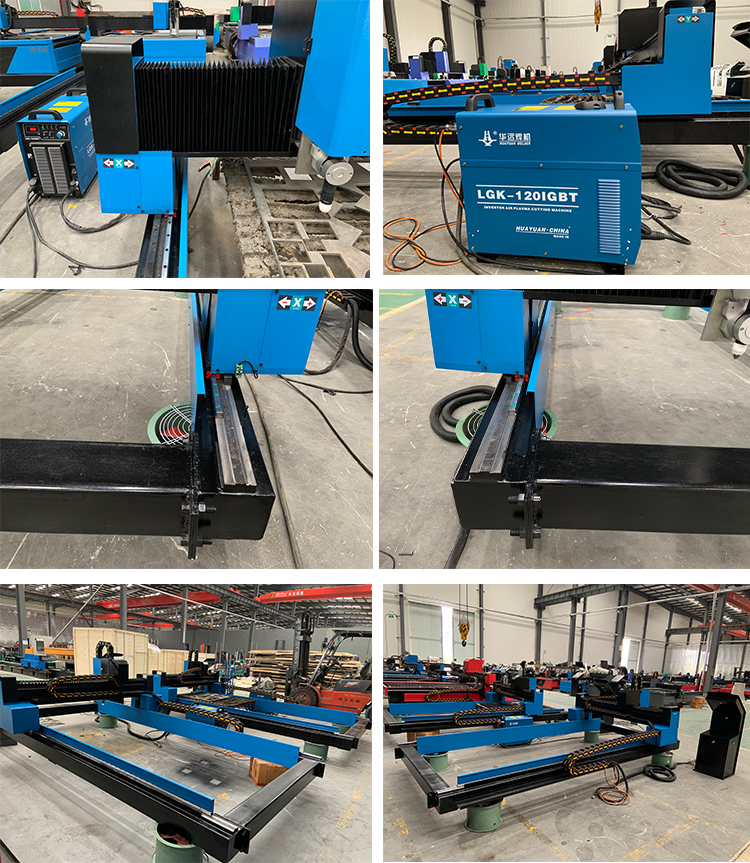

Plasma source | China Huayuan LGK120 |
Cutting thickness | 0.5-12mm |
1) Table cnc plasma cutting machine
2) Portable cnc plasma cutting machine
3) Gantry cnc plasma cutting machine
4) Metal plate and tube plasma cutting machine
5) Square tube and round pipe plasma cutting machine
If any inquiry and demands, welcome to contact with us now to get special $300 discount!
