Product Description
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.

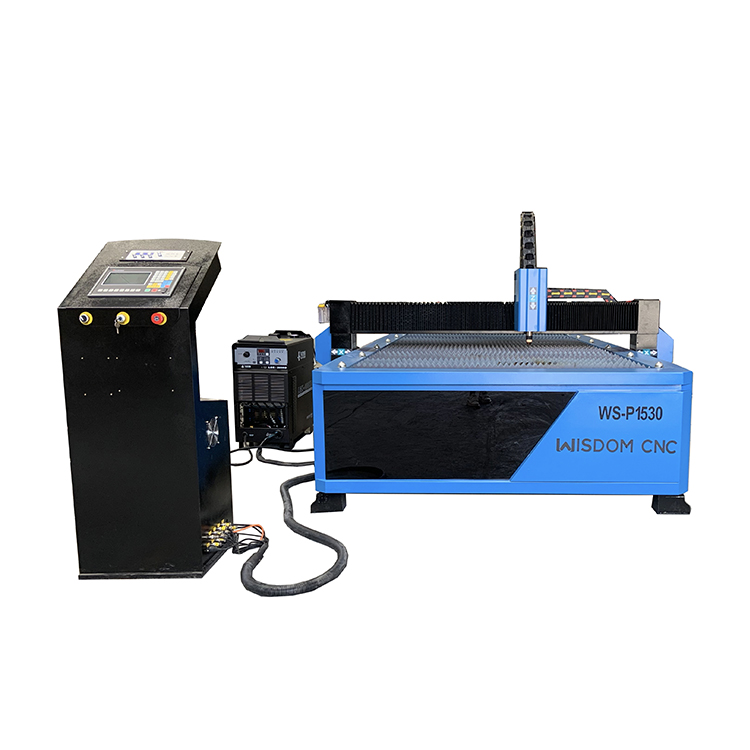

Model | WS-P1325 | WS-P1530 | WS-P2030 | WS-P2060 |
Working area | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x6000mm |
THC | Torch Height Controller | |||
Control System | Advanced Starfire | |||
Software | Fastcam | |||
Transmission System | Rack Pinion And Hiwin Linear Rails | |||
Driving System | Stepper Motor and Drivers Option: Servo motor and drivers | |||
Max. Cutting Speed | 12000mm/Min | |||
Max. Travelling Speed | 20000mm/Min | |||
Working Voltage | 380V 220V/3ph 50/60HZ | |||

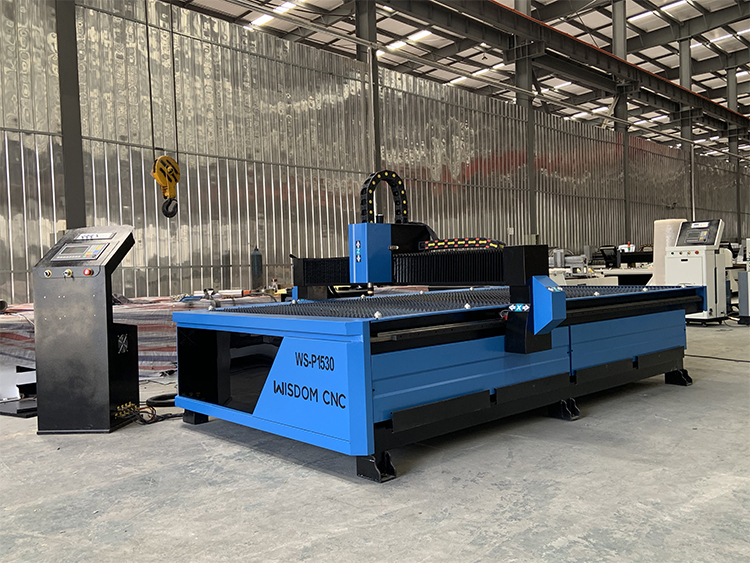

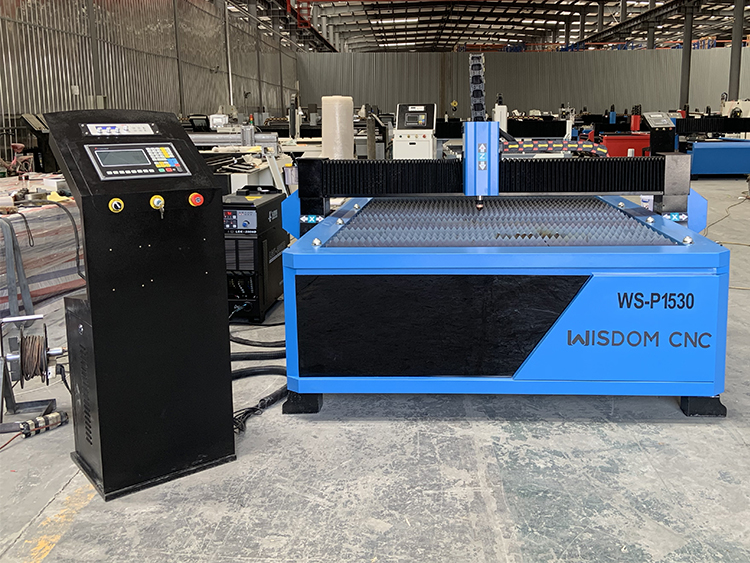

Metal Plasma Cutting Machine details and features:

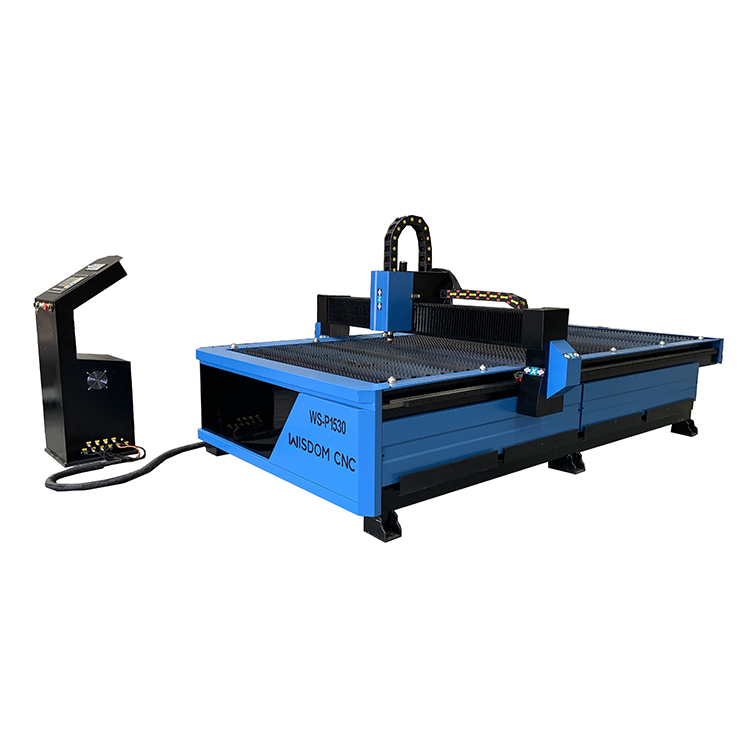

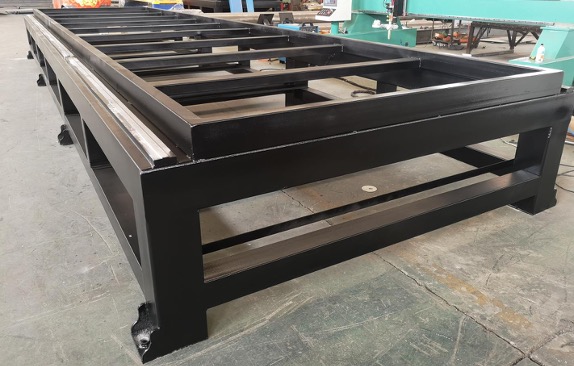

| ◀ Metal Plasma Cutting Machine Table, Solid Steel Structure |

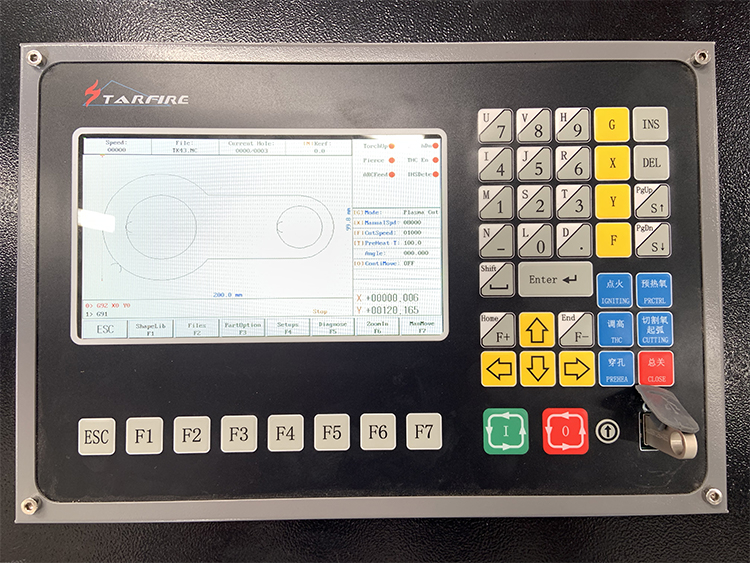

Advanced Starfire controller ▶ It support different languages such as Chinese /English /RUSSIAN /Spainsh /French /Czech /Janpanese /Slovakian etc. Functional, intelligent and easy to operate. |
|
| ◀Metal Plasma cutting source 200A Used for cutting 0-30mm metal. Different power used for different thickness cutting. |
Metal plasma cutting machine collect drawer▶ Collect small metal cutting workpieces. |
|
To get metal plasma cutting machine details and plasma cutting machine price, please feel free to communicate with us by email or whatsapp.
Optional parts of 5x10ft 1530 CNC plasma cutting machine:
 |  |  |

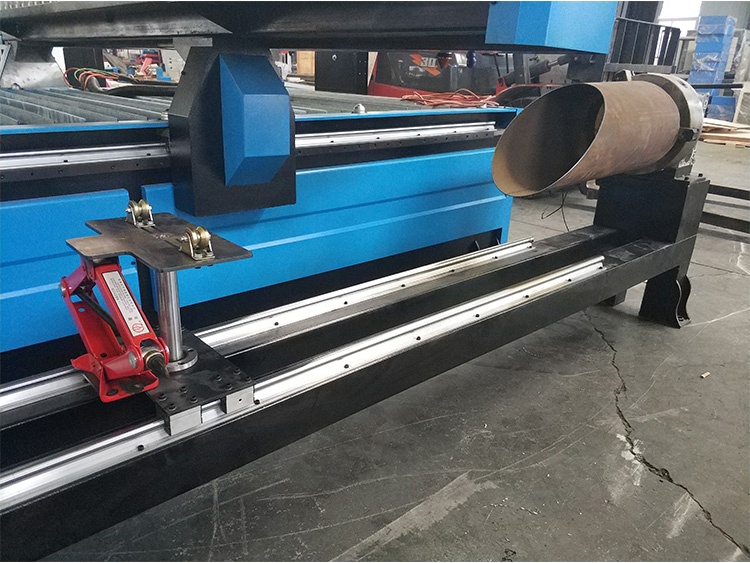

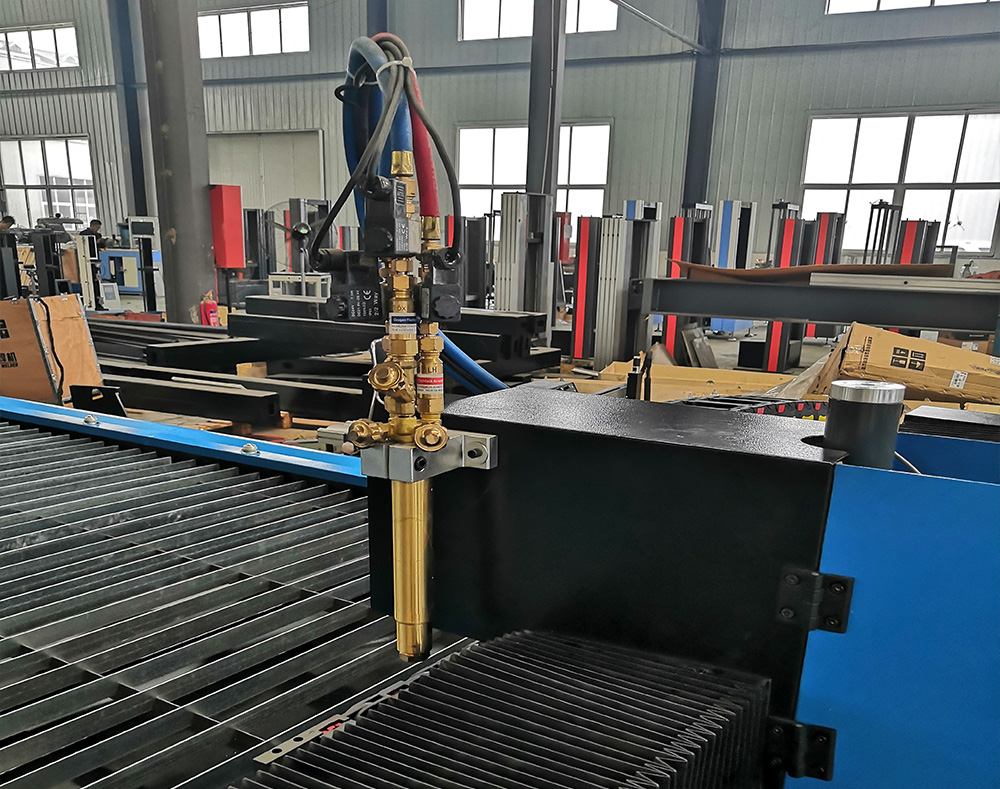

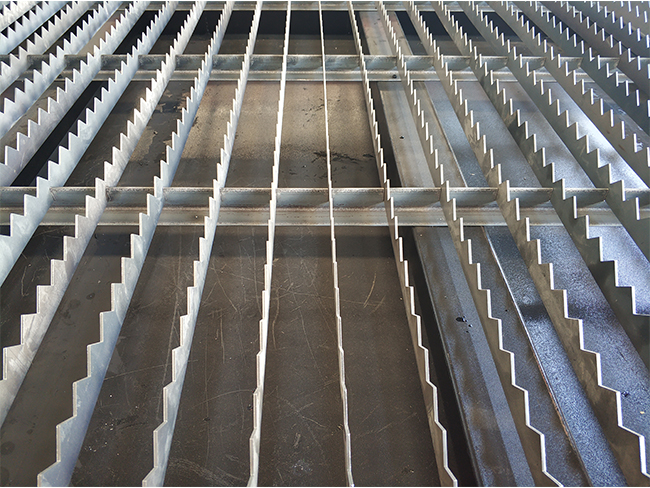

| Flame cutting head | Rotary attachment | Water table |
What materials can be processed by metal plasma cutting machine?
Steel | √ |
Stainless Steel | √ |
Carbon Steel | √ |
Iron | √ |
Aluminum | √ |
Titanium | √ |
Galvanized sheet | √ |
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN
| LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm
| Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |

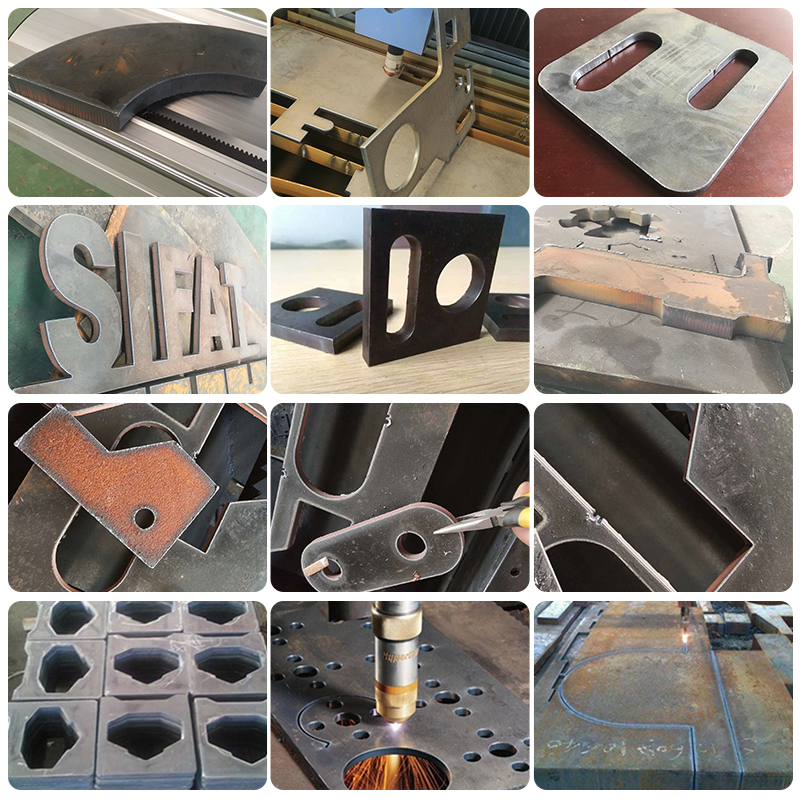

What's the design can be processed by metal plasma cutting machine？
For 1530 CNC plasma cutting machine, welcome to contact with us for detailed specifications, special offer and free accessories.
Packing and delivery
This table 1530 plasma cutting machine will be packed by free-fumigation wooden case.
Comments and Feedback info
1) Table cnc plasma cutting machine
2) Portable cnc plasma cutting machine
3) Gantry cnc plasma cutting machine
4) Plate and tube metal plasma cutting machine
5) Square tube and round pipe metal plasma cutting machine
