Product Description

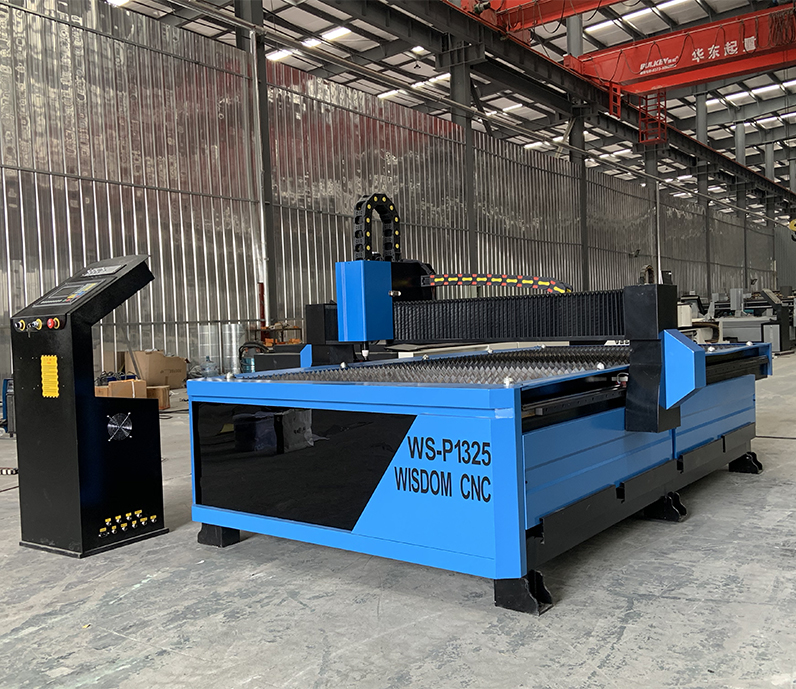

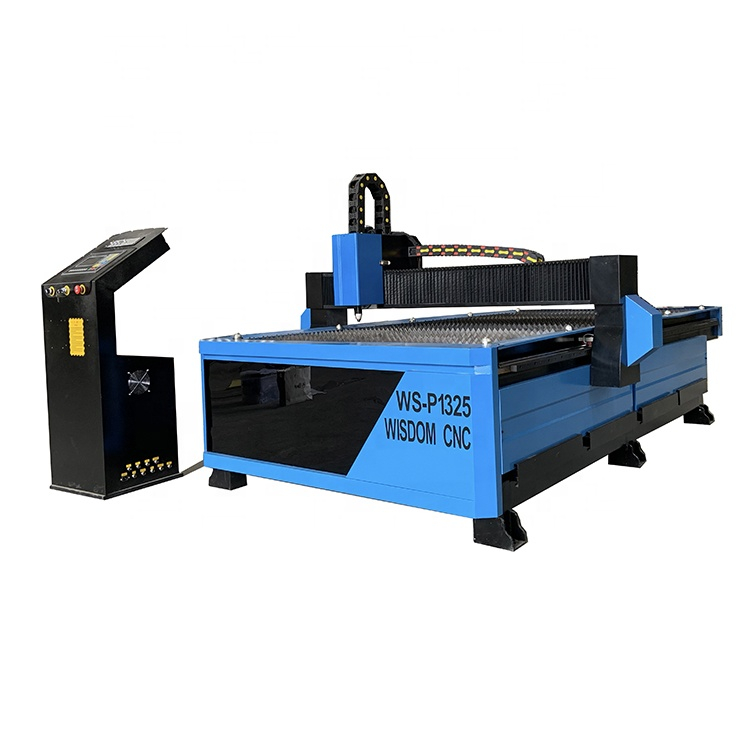

WS-P1325 Table plasma cutting machine is applied for processing aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet, stainless steel, etc.
Model | WS-P1325 | WS-P1530 | WS-P2030 | WS-P2060 |
Working area | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x6000mm |
Working head | Plasma Cutting Head (Option: marking head and drilling head) | |||
Function | Plasma Cutting (Option: marking and drilling) | |||
Control System | Advanced Starfire or Fangling controller | |||
Transmission System | Rack Pinion And Hiwin Linear Rails | |||
Driving System | Stepper Motor and Drivers | |||
Max. Cutting Speed | 12000mm/Min | |||
Max. Travelling Speed | 20000mm/Min | |||
Working Voltage | 380V 220V/3ph 50/60HZ | |||
| ◀ Plasma Cutting Head Mainly consumable parts: nozzles and electrodes. |
Advanced Starfire controller ▶ It support different languages such as Chinese /English /RUSSIAN /Spainsh /French /Czech /Janpanese /Slovakian etc. Functional, intelligent and easy to operate. |
|

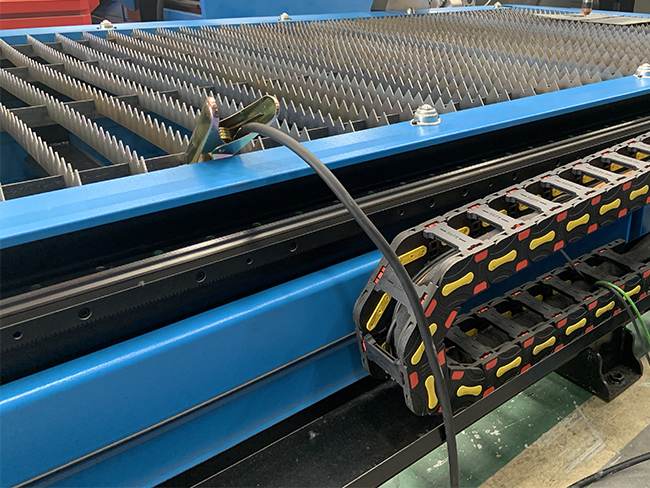

| ◀Sawtooth working table |
Fastcam software▶ Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents |
|
For more machine details and specifications, plese feel free to communicate with us by email or whatsapp.
Steel | √ |
Stainless Steel | √ |
Carbon Steel | √ |
Iron | √ |
Aluminum | √ |
Titanium | √ |
Galvanized sheet | √ |
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN
| LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |

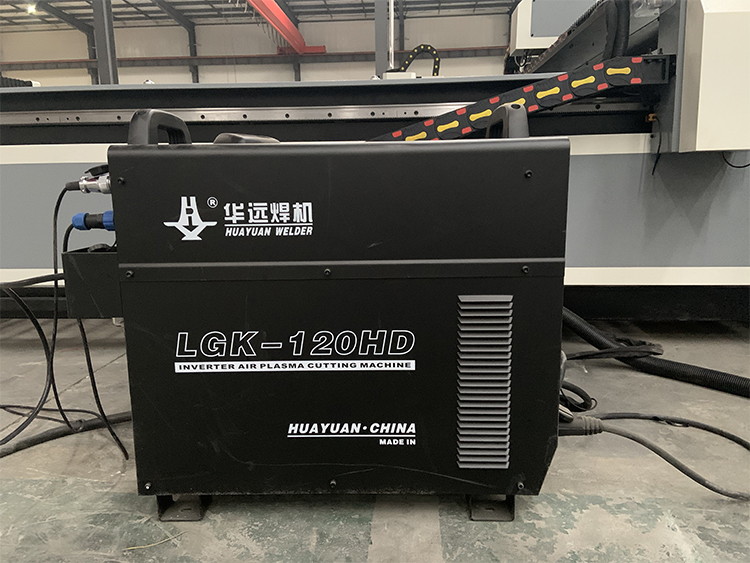

LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm
| Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |

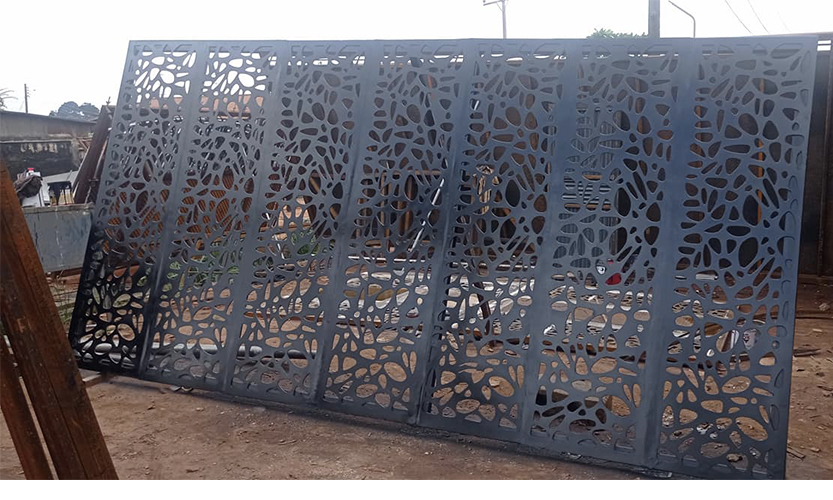

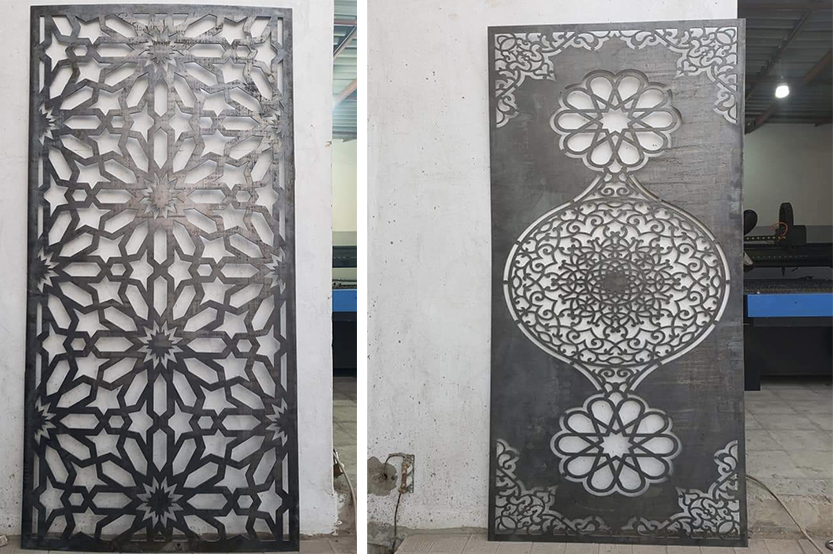

What's the usage and design can be processed?
