Product Description
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.
| Model | WS-P1325R | WS-P1530R | WS-P2030R | WS-P2060R |
Working area | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x6000mm |
Rotary attachment | Diameter 200-300mm, length 2500mm, 3000mm, 6000mm | |||
Function | Metal plate and metal tube cutting Drilling Marking | |||
Control System | Advanced Fangling F2300A Controller | |||
Transmission System | Rack Pinion And Hiwin Linear Rails | |||
Driving System | Stepper Motor and Drivers | |||
Max. Cutting Speed | 12000mm/Min | |||
Max. Travelling Speed | 20000mm/Min | |||
Working Voltage | 380V 220V/3ph 50/60HZ | |||

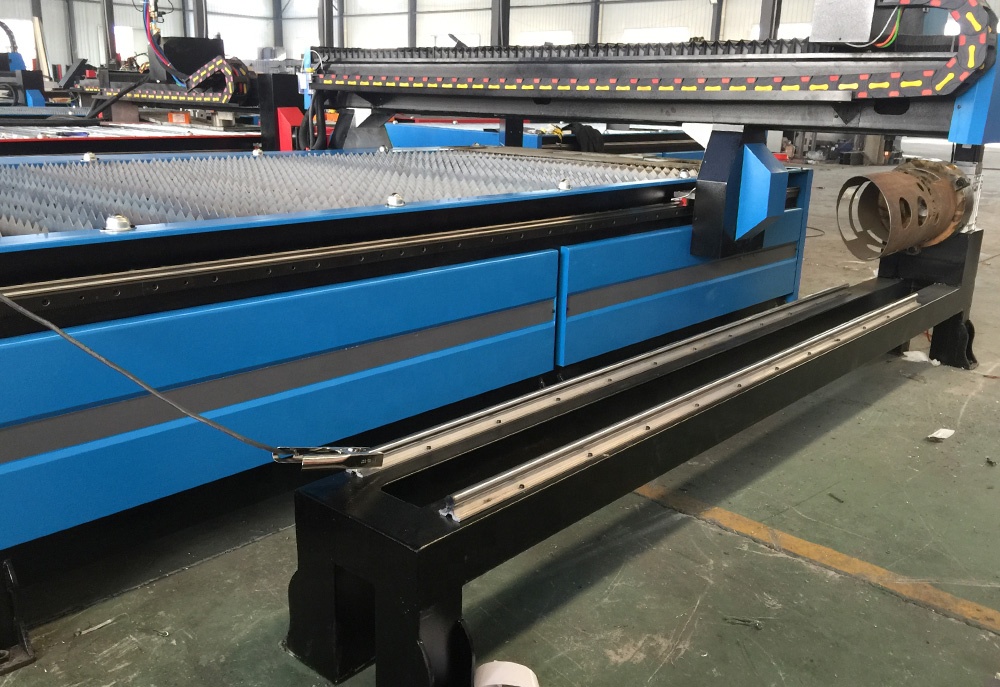

| ◀ Rotary attachment This plasma cutting machine rotary attachment is used for cutting metal pipe and metal tube, diameter can be 200mm, 300mm, length can be same along with Y-axis. |
Advanced Fangling controller ▶ |
|

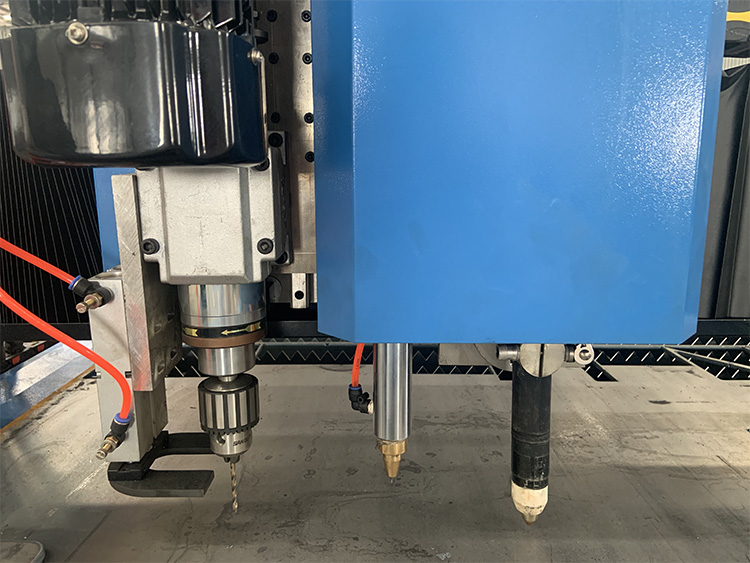

| ◀Multi-heads of plasma cutting, drilling and marking |
Plasma source▶ Different power choose for different cutting thickness. |
|
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN
| LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm
| Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |
Welcome to contact with us now to get detailed specifications, special discount and free accessories.

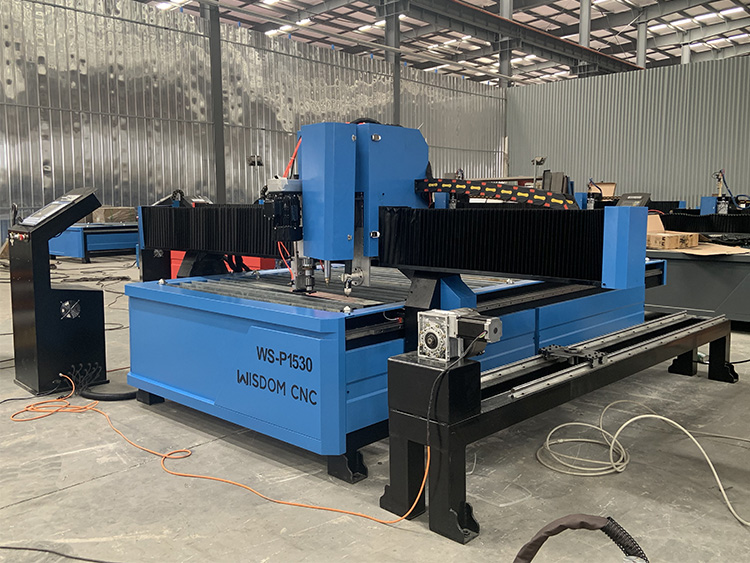

Real Machine Photo
