WS-D1625
1600x2500mm
2.2kw/3.0kw
Servo
DSP
T-slot
Artcam,JDpaint,Ucancam
Product Description
Woodworking Industry: Multi-head woodworking engraving machines are often used in the processing of furniture manufacturing, cabinet doors, artistic relief screens, craft windows, woodworking calligraphy engraving, artistic photo frames and other products. This machine is able to handle multiple small workpieces simultaneously, significantly improving production efficiency.
Advertising industry: Multi-head engraving machines are also widely used in advertising production, and can quickly complete a large number of small billboards, signboards and other production tasks.
Crafts Industry: Suitable for fine engraving needs such as relief craft gifts, solid wood art murals, metal products, etc., and can ensure product consistency and high quality.
Efficient processing: The multi-head engraving machine can perform multi-spindle work at the same time, which greatly improves the processing speed and is suitable for mass production.
High precision: Using high-precision linear guide transmission and micro-stepping stepper motor to ensure processing accuracy and stability.
Multi-function: Supports processing codes generated by multiple CAD/CAM design software, with strong compatibility.
Durability: The overall thick-walled all-steel structure design does not deform or shake during long-term high-speed operation, and is suitable for long-term continuous operation.
1. Ball screw for Z axis. It's stable running,precision and fast speed.
2. X and Y axis transmited by helical gear rack,stable,fast,durable and fast speed.
3. DSP A18 four axis control system,not only can carve round columns,but also statue,figure and other irregular products. Read G code generated by artcam,powermill,rhino,mastercam,vcarve,etc.

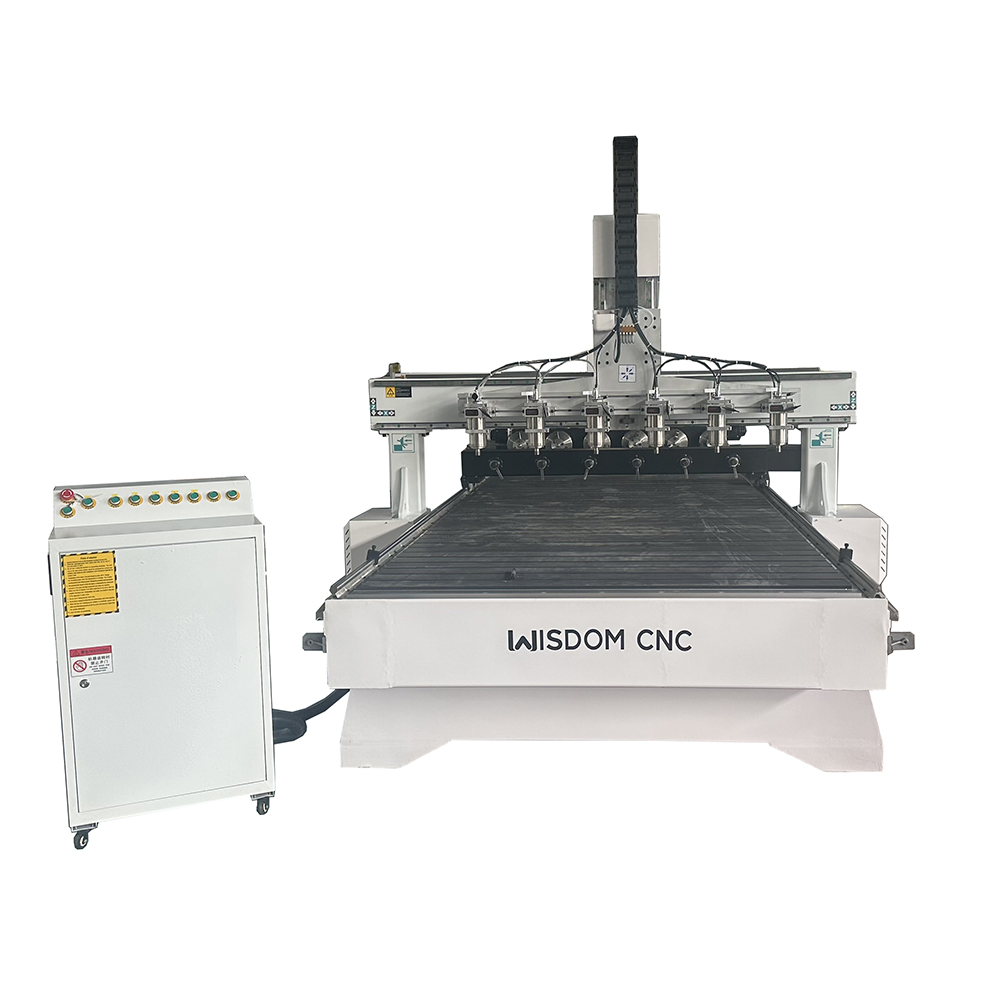

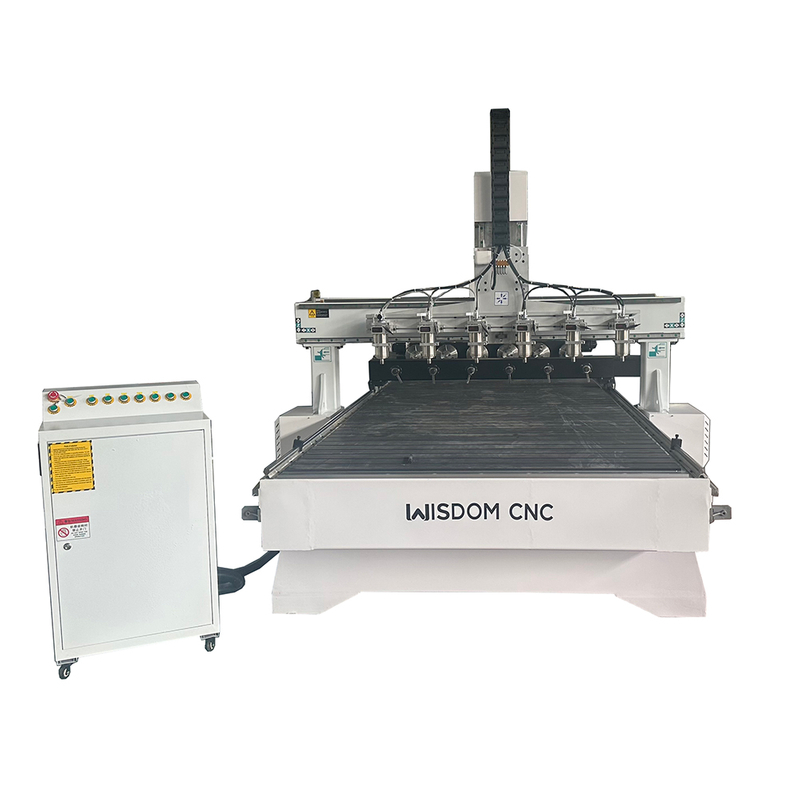

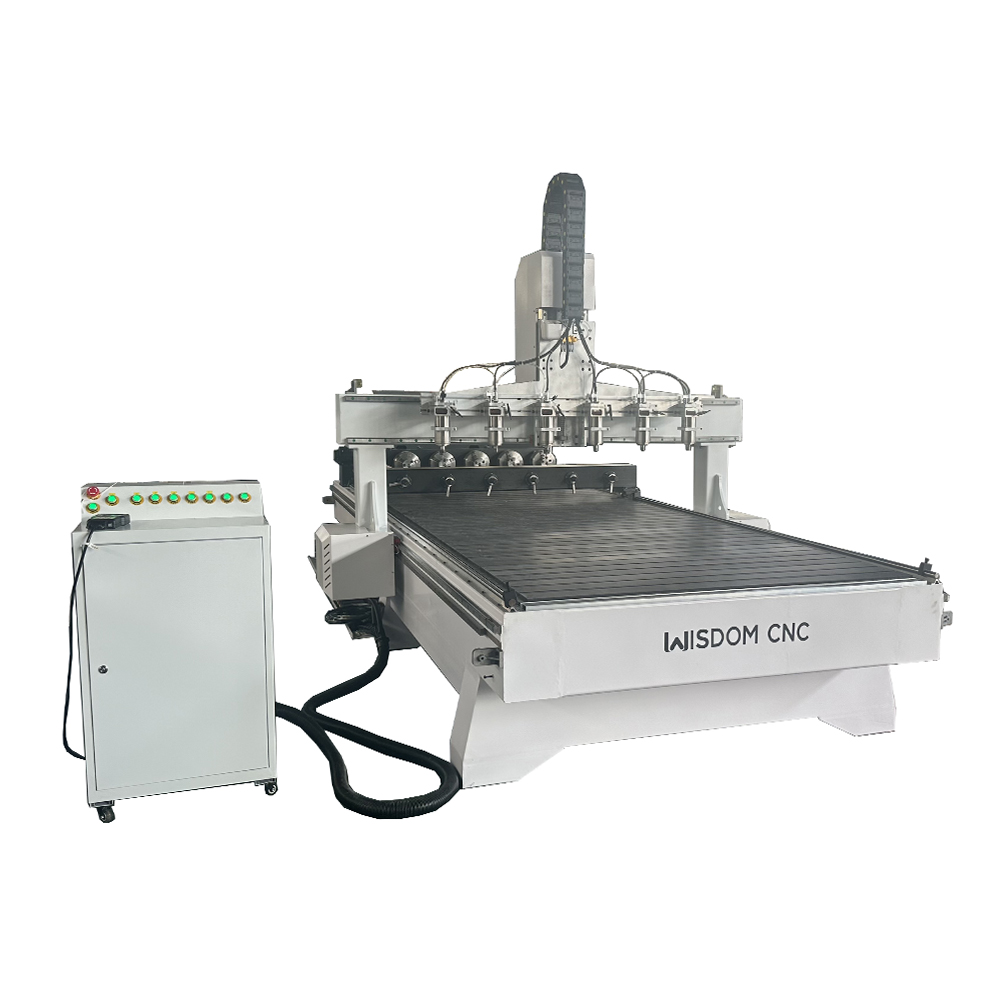

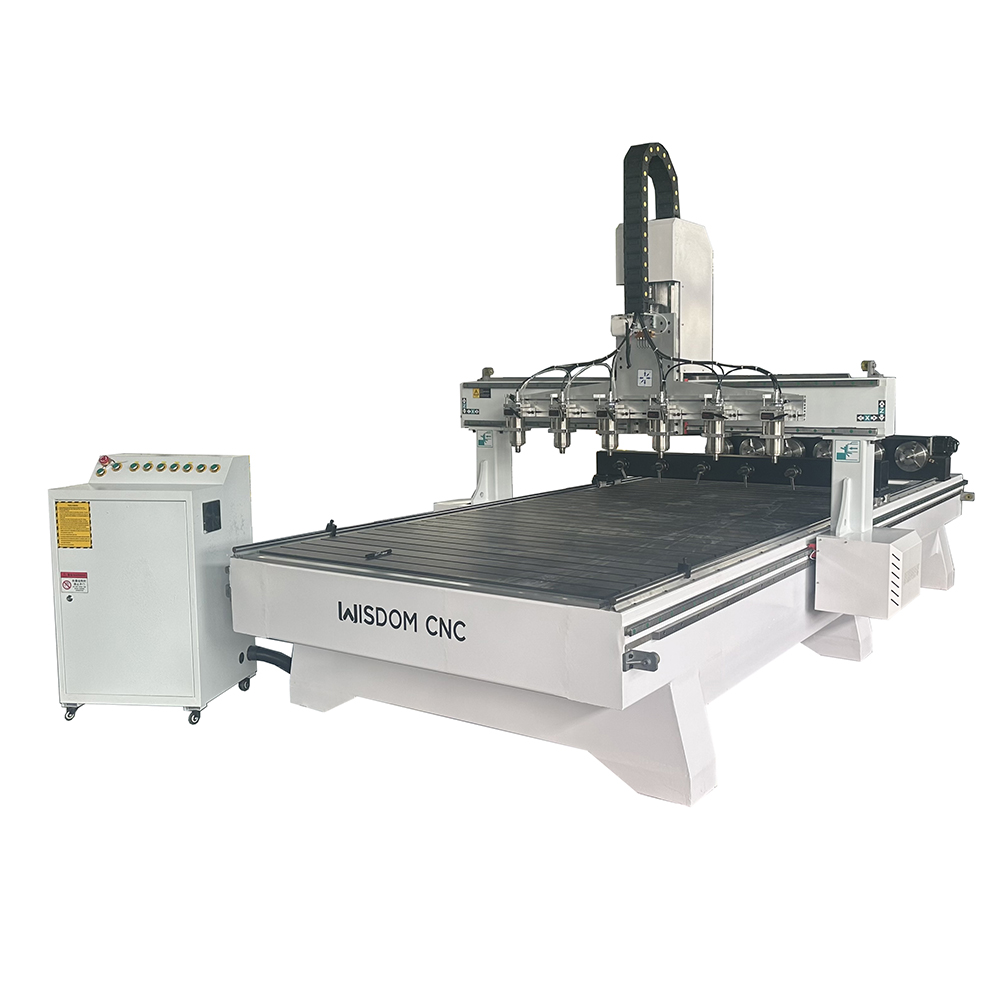

4. Multi-heads Rotary Wood CNC Router with 2-8 pieces rotaties for columns 3D carving, can process 1-8 pieces products at a time.
5. Multi-heads Rotary Wood CNC Router equips with rotaries and flat table,can process both flat and columns materials.
Machine Model No. | WS-1625R / WS-1630R |
X Y Z axis working area | 1600x2500mm /1600x3000mm |
Rotaries diameter | 200mm or customized |
Spindle power | 2.2kw * 6 |
Table | T-slot Clamp table |
X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
Max.rapid travel rate | 24000mm/min |
Max.working speed | 12000mm/min |
Spindle speed | 0-24000RPM |
Driving system | Servo motor & drivers |
Working voltage | 220V/380V/50HZ |
Command language | G code |
Control system | DSP A18 |
Software compatibility | Artcam,Ucancam,Type3,Powermill,Mastercam,Vcarve |
Running environment | Temperature:0~45°C Relative humidity:30%~75% |
Oil system | Automatic |
