Product Description
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal materials.
Model | WS-P1325 | WS-P1530 | WS-P2030 | WS-P2060 |
Working area | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x6000mm |
Working head | Plasma Cutting Head Drilling Head | |||
Function | Plasma Cutting and Drilling | |||
Control System | Advanced Fangling controller | |||
Transmission System | Rack Pinion And Hiwin Linear Rails | |||
Driving System | Stepper Motor and Drivers | |||
Max. Cutting Speed | 12000mm/Min | |||
Max. Travelling Speed | 20000mm/Min | |||
Working Voltage | 380V 220V/3ph 50/60HZ | |||
| ◀ Plasma Cutting head and Drilling head This plasma drilling and cutting machine will cutting and drilling metal plate effectively. |

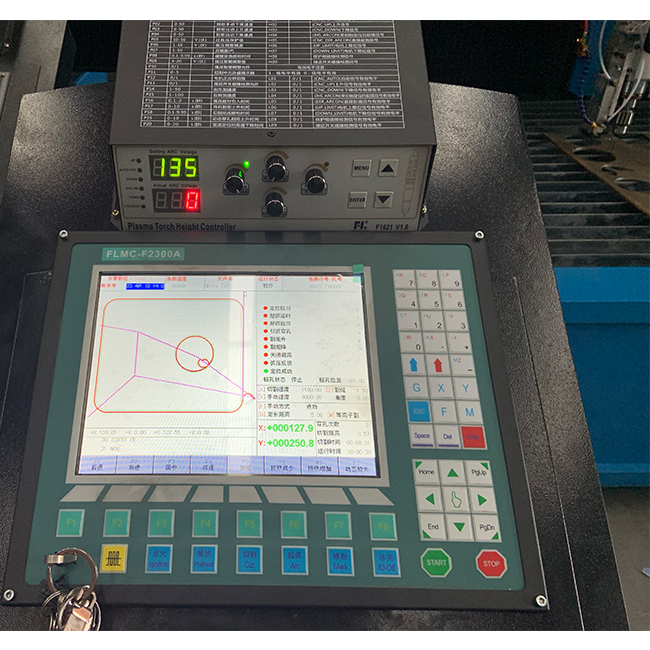

Advanced Starfire controller ▶ It support different languages such as Chinese /English /RUSSIAN /Spainsh /French /Czech /Janpanese /Slovakian etc. Functional, intelligent and easy to operate. |
|
| ◀Plasma Cutting Machine Drawer it will collect small metal cutting workpieces under the table. |

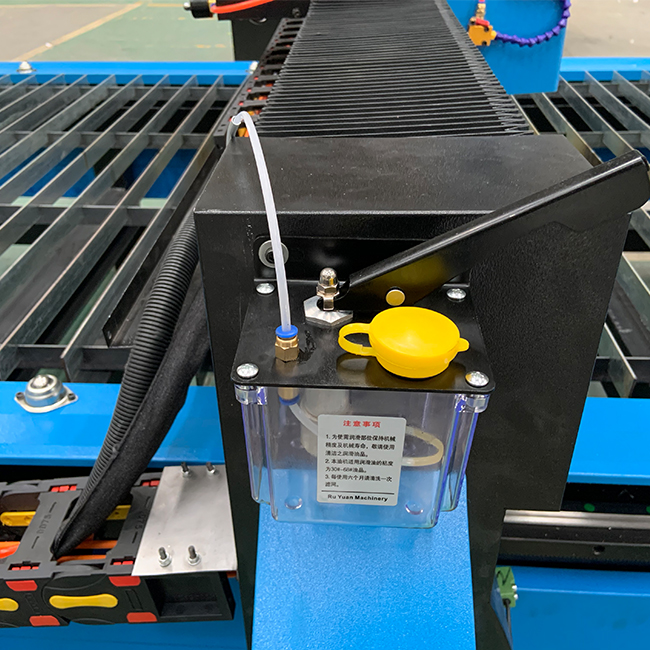

Oil lubrication system▶ Effective lubrication to keep the guide rail surface continuously supplied with new oil. |
|
For more machine details and specifications, please feel free to communicate with us by email or whatsapp.
Steel | √ |
Stainless Steel | √ |
Carbon Steel | √ |
Iron | √ |
Aluminum | √ |
Titanium | √ |
Galvanized sheet | √ |
Plasma Source | Power | Suggested cutting thickness | Stainless steel |
China brand HUAYUAN
| LGK 63A | 6mm | 3mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 12mm | |
US brand Hypertherm
| Powermax 45A | 6mm | 3mm |
Powermax 65A | 10mm | 5mm | |
Powermax 85A | 12mm | 6mm | |
Powermax 105A | 15mm | 8mm | |
Powermax 125A | 20mm | 10mm | |
Powermax 200A | 30mm | 15mm |

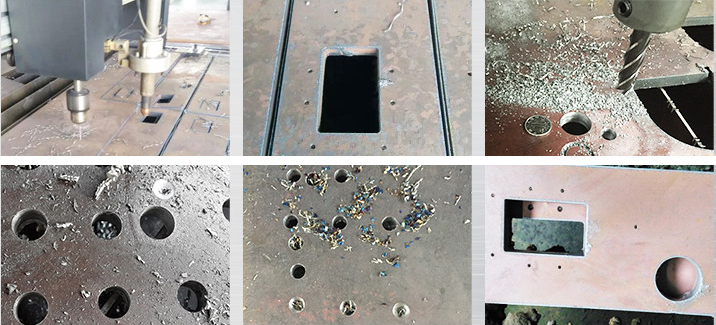

What's the usage and design can be processed？
Welcome to contact with us to get detailed specifications and free accessories.
Packing and Delivery
This metal drilling and plasma cutting machine will be packed by wooden case, loading by 20ft container or LCL.
