WS-L1530A
5.5kw
Stepper or servo motor
LCD screen
300mm
1500mm
CAD
Product Description
This popular auto feeding cnc wood lathe is mainly used for processing various cylindrical workpiece,wooden handle,baseball bat,bowl sharp, tubular sharp and vehicle wood crafts, various staircase column,stairway balusters,stairway newel posts,dining table legs,end table legs,sofa table legs,bar stool legs,Roman column,General column,washstand,wooden vase,wooden table,basebal bat,car wooden furniture,children's bed column,chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts and so on.

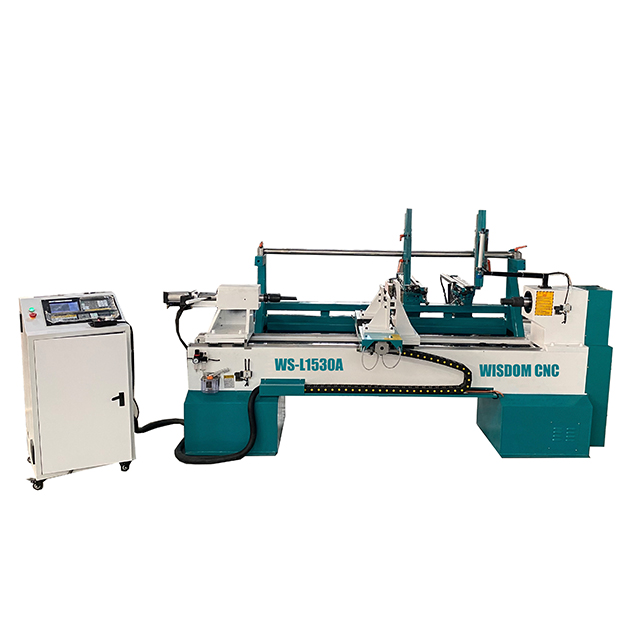

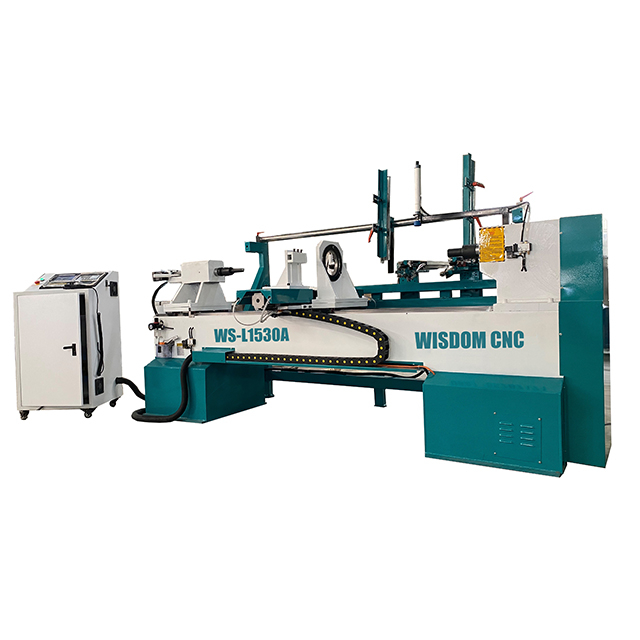

Model | WS-L1530A lathe machine with auto feeding device |
Max turning diameter | 20-300mm |
Max turning length | 100-1500mm |
Number of axis | Single axis, single blade Single axis, double blades |
Max feed rate | 200cm/min |
Max setting unit | 0.01cm |
Driving system | Big Stepper motor |
Control system | LCD screen |
Spindle rotating motor | 5.5KW |
Spindle speed | 0-3000r/min |
Feeding parts | Combined high-quality rails with precise screw drive , effective control error |
Working speed | 5X60cm Standard staircase column 40s/pcs |
Power supply | AC380v /220v 50 /60hZ |
Cutter | 2 white steel blades (18x18x200mm), 2 Korea imported alloy blades |
Auxiliary hardware and software | Turning center with the knife (5cm wood, 6cm wood) tail top pin manualstretching, combined with pneumatic, convenient and flexible, intelligentprotection work table (limit alarm system) to prevent the collision phenomenon. |

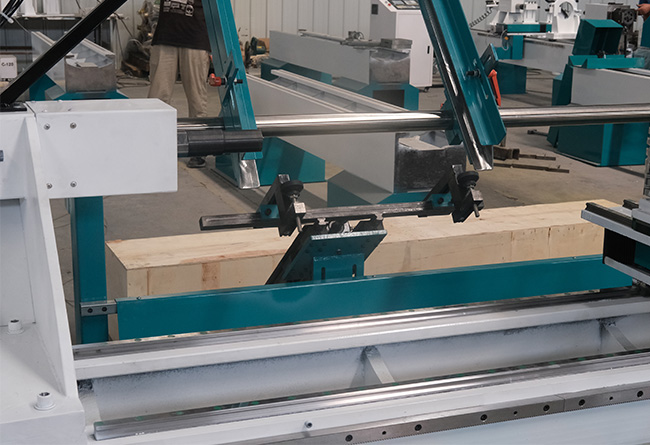

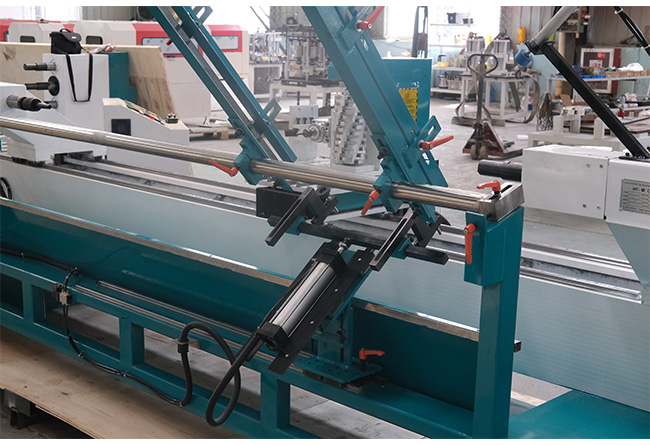

| ◀ Auto feeding device |
Auto loading unloading device ▶ |
|
| ◀Advanced Wood Lathe Controller |
Heavy lathe bed with strong rigidity▶ |
|
For more machine details and specifications, please feel free to communicate with us by email or whatsapp.
Wood Turning | √ |
Wood Milling | √ |
Wood Broaching | √ |
Wood Grooving | √ |
Wood Twisting Line | √ |
Wood Engraving | √ |
Auto loading unloading | √ |
Welcome to contact with us now to get detailed specifications, special discount and free accessories.

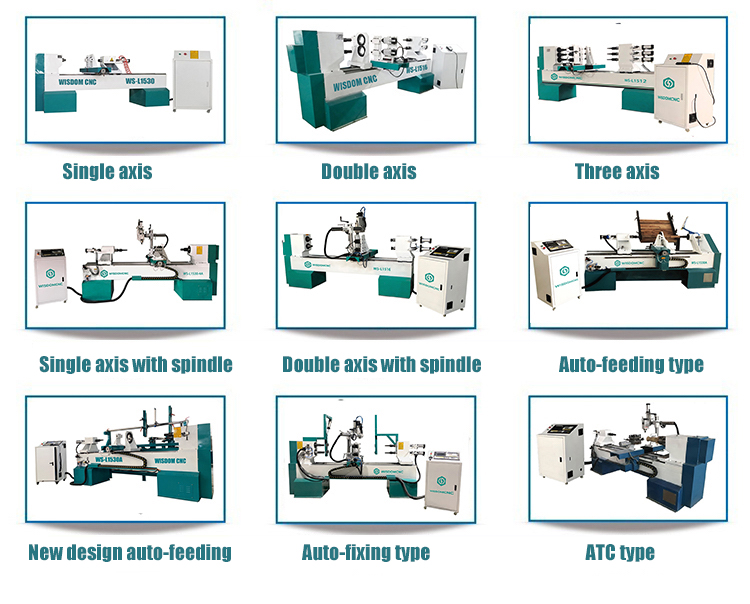

Related Wood Lathe Machine
1) Single axis cnc wood lathe
2) Double axis cnc wood lathe
3) Three axis cnc wood lathe
4) Auto feeding cnc wood lathe
5) 4 axis spindle wood lathe machine
6) ATC wood lathe machine
