Product Description

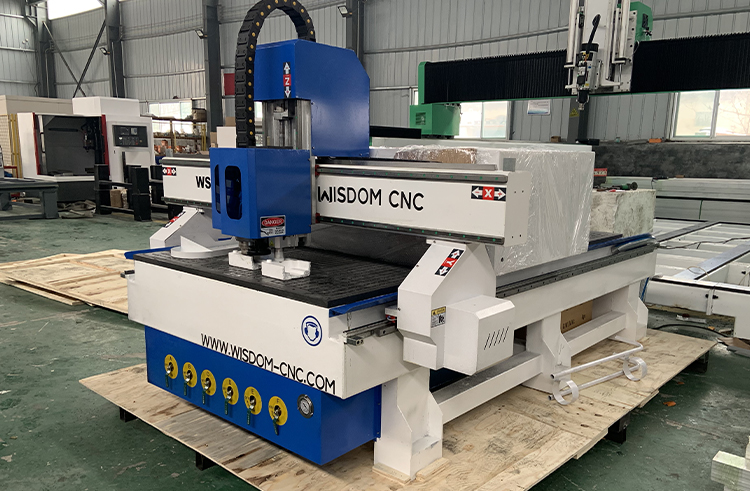

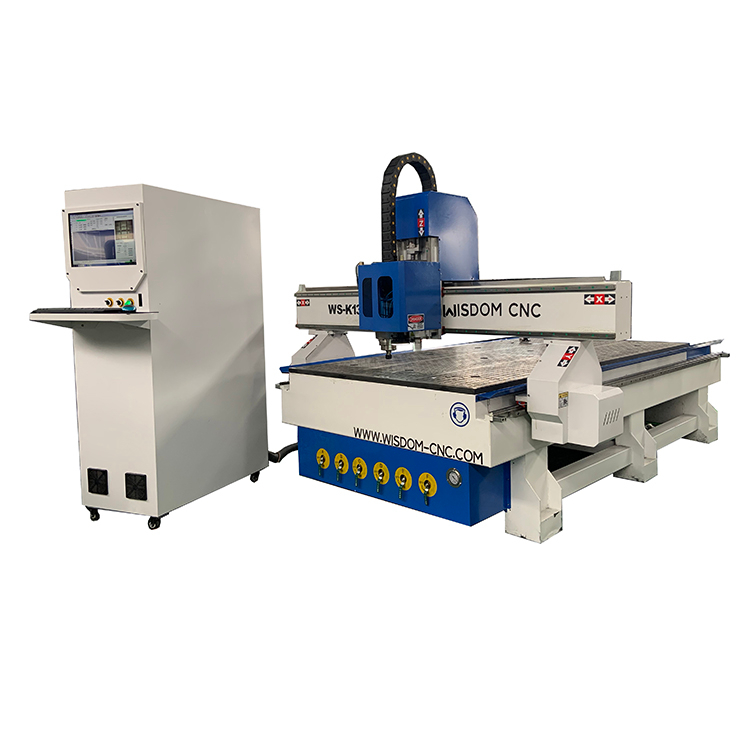

1) The cnc router machine is equipped with oscillating knife and CCD camera. Specifically for cutting KT boards. There is another spindle cutting head next to the oscillating knife and CCD, which is used to cut advertising boards such as wood plywood acrylic and MDF etc.
2) This oscillating knife cutting cnc router machine is equipped with 6 vacuum zones and 12 vacuum holes. Vacuum adsorption can absorb the advertising board and make the board more stable, achieve the good cutting effect.
3) The oscillating knife cutting machine supports NC, eng, dxf and other formats of files, and can make cutting, engraving, drilling, and milling all in one machine.
4) There are special seprated control system, spindle cutting and oscillating knife cutting can be operated conveniently.

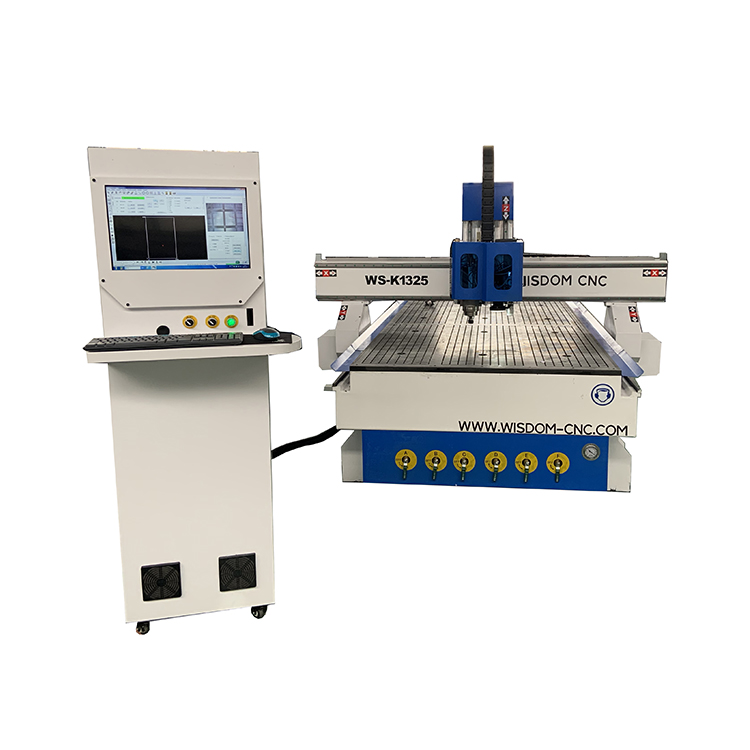

5) CCD camera system is suitable for cutting trademarks, pictures, etc with intelligent recognition. The recognition and cutting speed is fast, and the operation is simple and convenient.
6) Scan the MARK point in the picture before cutting. The four corners of the picture need to be marked when the picture is printed. The marking point is positioned through the CCD vision system, automatically calculate the size and position of the oscillating knife cutting.
Oscillating knife cutting cnc machine is suitable for clothing, cloth toys, computer embroidery and cutting, handbags, footwear, plastics, advertising, packaging, industrial gifts, appliques, models, prototypes, furniture, etc industry. At the same time, it is also suitable for professional users who need large-format cutting and engraving in UV printing, advertising, decoration, construction, template and other industries.
Model | WS-K1325 | WS-K1530 |
Working area | 1300x2500mm or 1500x3000mm | |
Spindle power | 4.5kw water-cooling | 9.0kw air-cooling |
Spindle speed | 18000-24000rpm/min | |
Inverter | 5.5kw | 11.0kw |
Driving system | YASKAWA Servo motor and drivers | |
Transmission | Taiwan Hiwin Square linear guide rails with X Y axis TBI Ball screw with Z axis | |
Operation system | MarkCut control system | |
Dust collector | 3.0kw with double bags | |
Oil lubrication | Automatic | |
Software compatibility | Artcam,Ucancam,JDpaint,etc | |
Working platform | Vacuum with vacuum pump | |
Gantry | Heavy cast steel | |
Lathe bed | Thicken steel tube | |
Electronic parts | Schneider | |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 48000mm/min | |
Max Working speed | 24000mm/min | |
Working voltage | 380/220V 3PH 50/60Hz | |
Oscillating Knife Cutting Machine details and features:

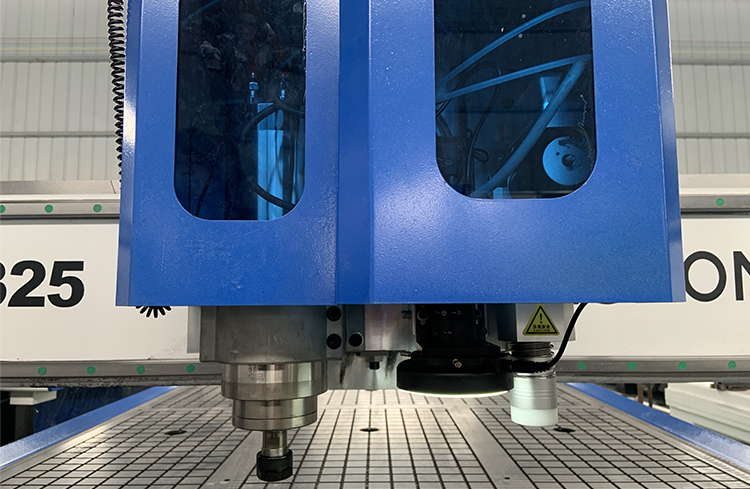

| ◀ Independent spindle head, CCD camera and oscillating knife Achieve different usages and different materials cutting |

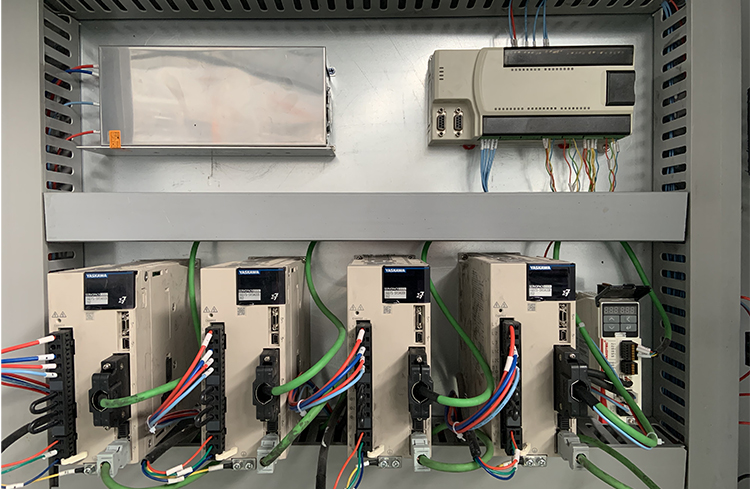

Japan Yaskawa servo motor ▶ Ensure high working efficiency and stable running ability Equipped with Japan Shimpo Reducer |
|
| ◀Markcut control system Spindle cutting and oscillating knife cutting can be switched conveniently. Easy operation and stable performance. |

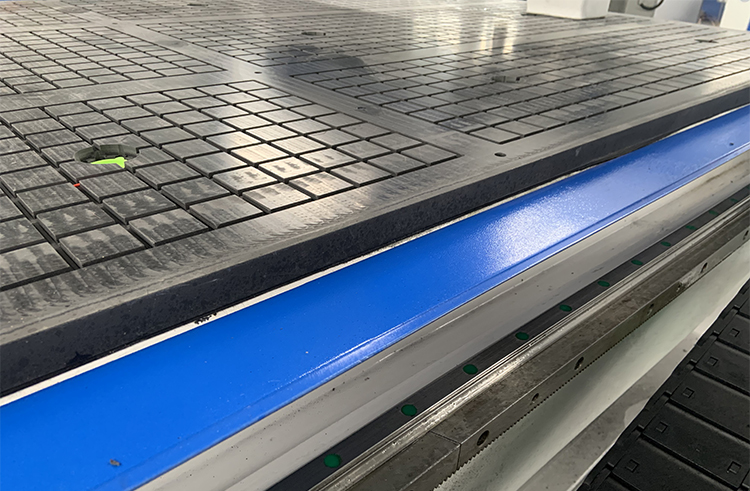

Vacuum table with 5.5kw vacuum pump ▶ It will absorb hard materials steadily such as wood plywood mdf etc. Ensure good cutting effect. |
|

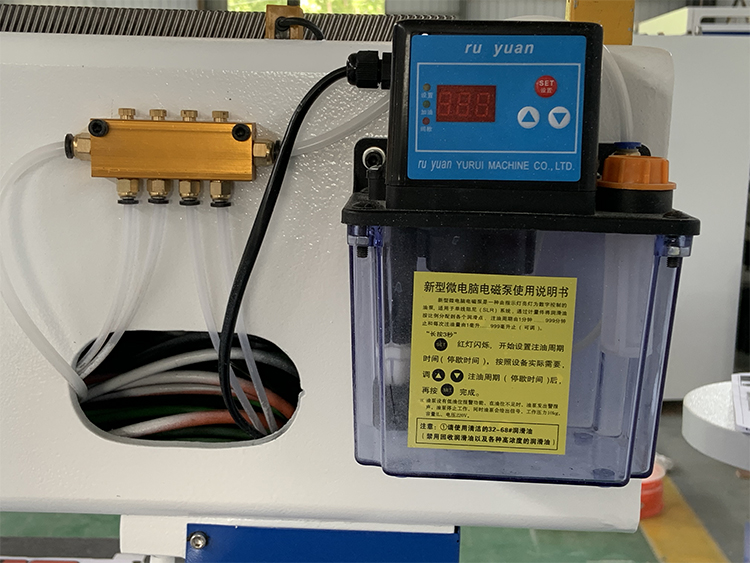

 | ◀Automatic oil lubrication system It will lubricate mechanical parts especially guide rails ensure machine long-time working. |
For more machine details and specifications, please feel free to communicate with us by email or whatsapp.
KT board | √ |
UV flat panel | √ |
PVC | √ |
Trademarks | √ |
Pictures | √ |
Self-adhesive | √ |
Decoration | √ |
Wood /Plywood /MDF | √ |
ACP (aluminum composite panel) | √ |
ACM | √ |
Gypsum | √ |
Acrylic | √ |
Plastic | √ |
Aluminum | √ |
Welcome to contact with us now to get detailed specifications, special discount and free accessories.
