Product Description

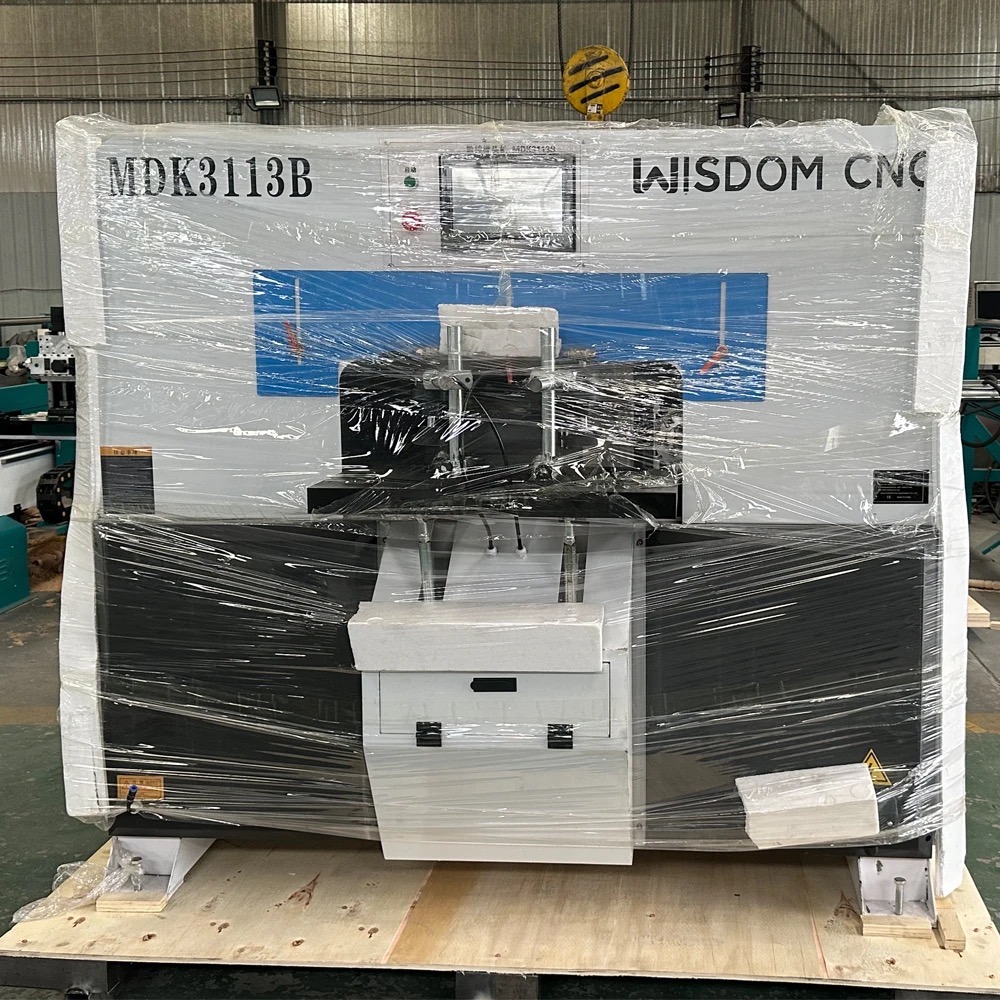

CNC tenoning machine, also known as woodworking CNC tenoning machine, woodworking tenoning machine, tenon machine, is widely used in furniture manufacturing. It is a device for making and milling tenons through automation modules, digital control, servo motors and drive modules. The tenons made by CNC tenoning machine have a neat appearance and high consistency. They are an integral part of any tenon processing for chairs, tables and other types of furniture.
1. Imported slider screw with high precision, high hardness, good dustproof effect and long service life.
2. Double-end tenon, high productivity, increased productivity, labor saving, can process two kinds of workpieces with two different shapes at the same time.
3. Touch screen CNC operating system product molding at a high density.
4. Selected quality raw materials, durable and low maintenance rate.
Model | MDK3113 |
Max.Quadrate Tenoning Size | 140x80mm |
Max.Horizontal Elliptical Tenoning Width | 430/140mm |
Max.Tenoning Width | 80mm |
Max.Round Tenoning Diameter | 80mm |
Spindle Speed | 6000-12000r/min |
Install power | 7.3kw |
Weight | 850kg |
Overall Dimension | 1850x1200x1780mm |
Voltage | 380V 3PH |
