Product Description
Applied Materials: Bodhi, Bodhi root, mahogany, gold-rimmed nanmu, rosewood, mahogany, boxwood.

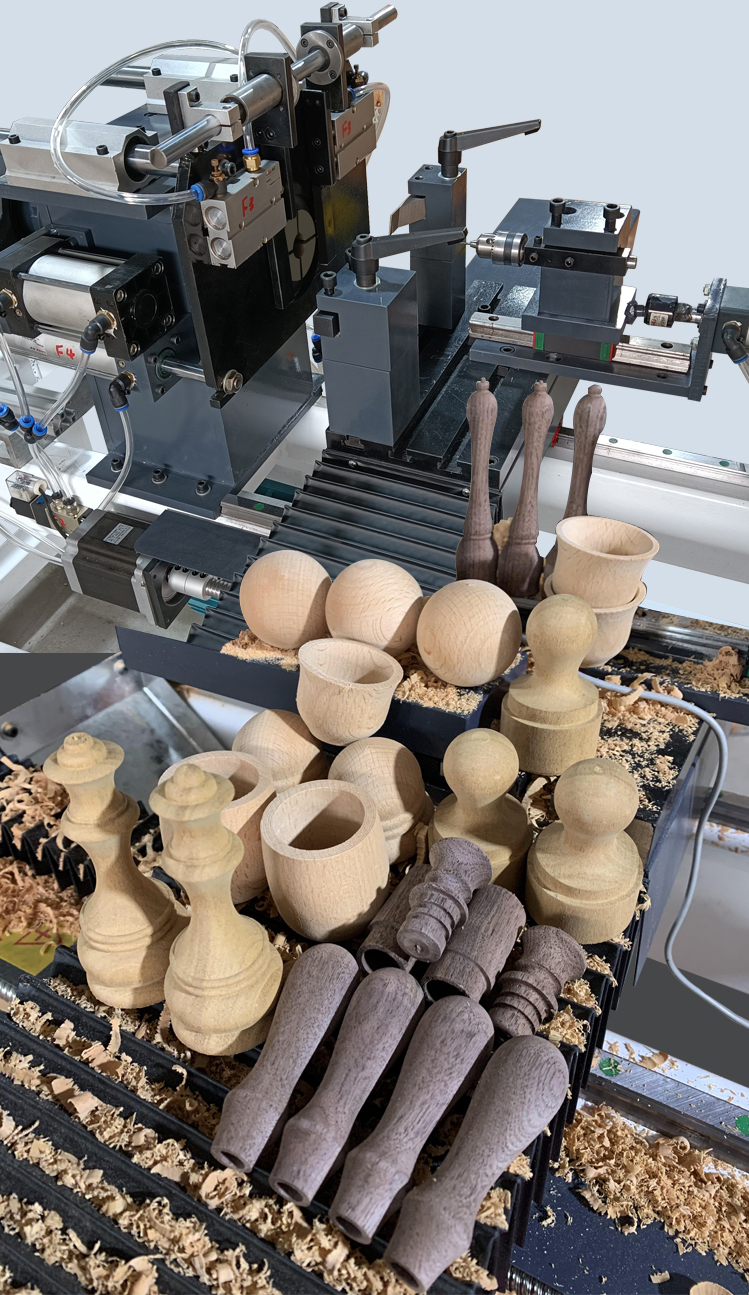

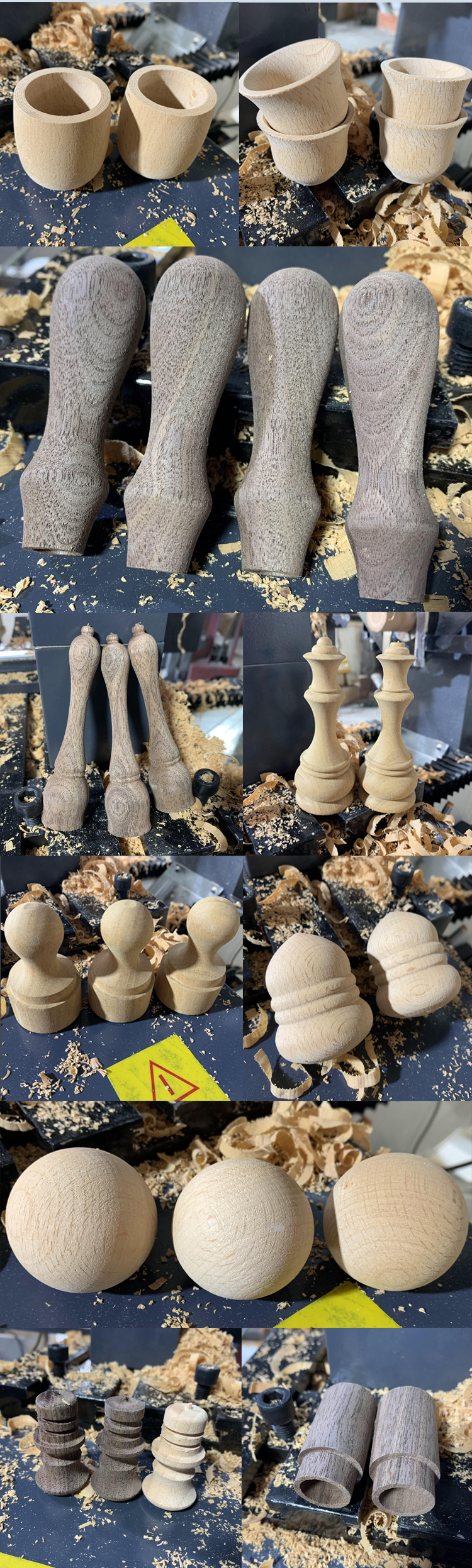

Applied Industries: Bead, barrel, all kinds of buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, pens and wine stoppers.
Processing size: Max diameter 50mm/70mm.
Different chuck be customized according to exact working dimension and sample.
High precision square guide rail and ball screw transmission. Ensure long lifetime and good stability.
Cutter: Adopt super hard alloy lathe cutter ensure long lifespan and smooth cutting.
Model | WS-L50/WS-L70 |
Max processing diameter | 50mm/70mm |
Feeding | Automatic |
Processing precision | 0.01mm |
Operating system | Fully CNC automatic |
Drawing software | CAD/Photoshop |
Drawing format | *.dxf, *.png |
Transmission way | Square guide rail and ball screw transmission |
Driving system | Stepper motor and driver |
Cutter | Super hard alloy wood lathe cutter |
Motor power | 1500w |
Working voltage | 380V 3phase |
Dimension | 155*106*129cm |
Weight | 500kgs |

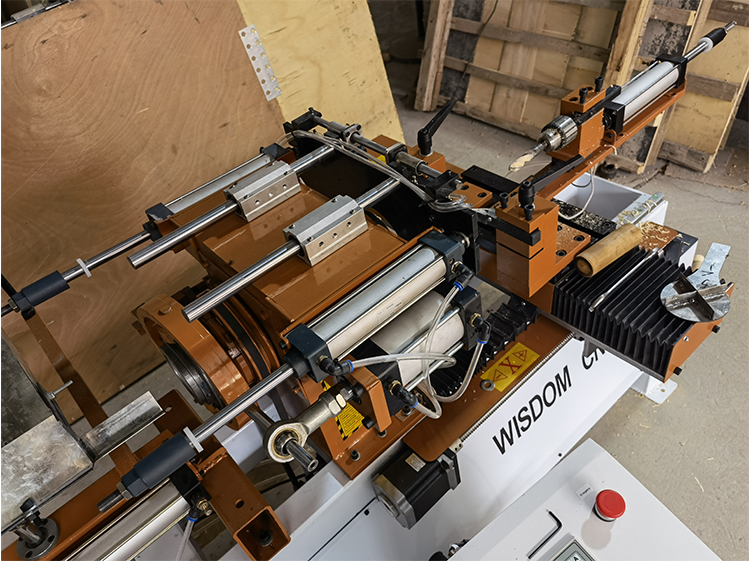

 | ◀ Moveable lathe cutter base, for external cutting and internal cutting and drilling |
Air cylinder ▶ |  |

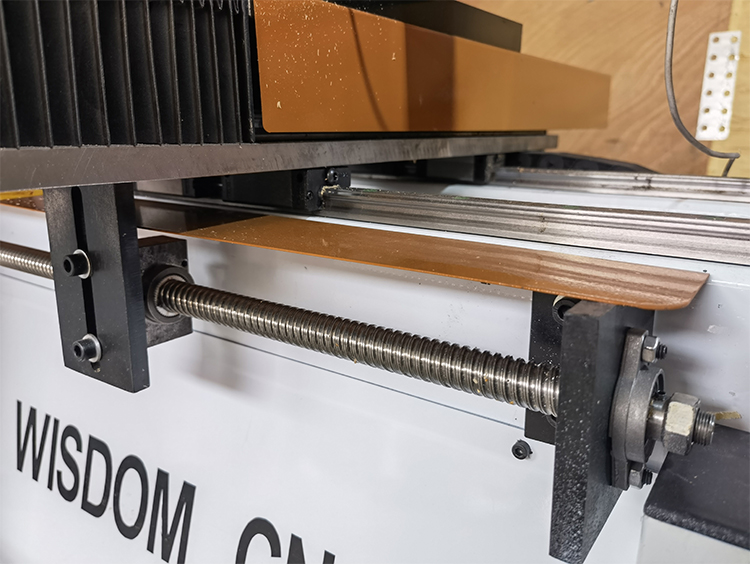

 | ◀ High quality square guide rail and ball screw transmission |

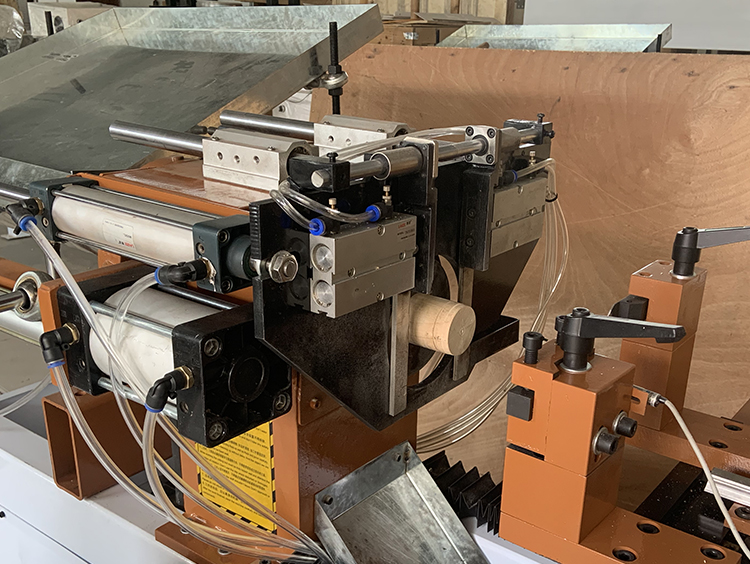

| Functional pneumatic chuck ▶ |  |

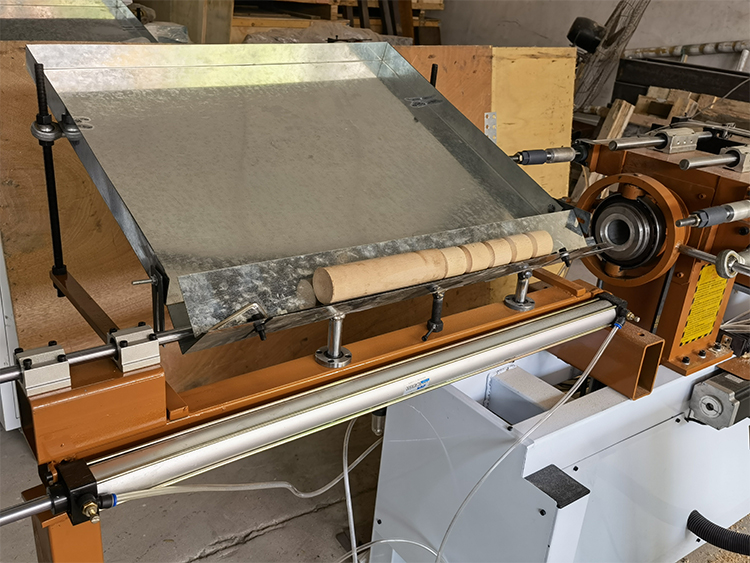

 | ◀ Automatic loading base |
