Product Description
Widely used in electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevalor equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precidion parts, all kinds of metal cutting industry etc.
Plasma torch and Rotating shaft
The fully automatic pneumatic chuck can align materials by itself, reducing the time spent by workers to go to the calibration center.

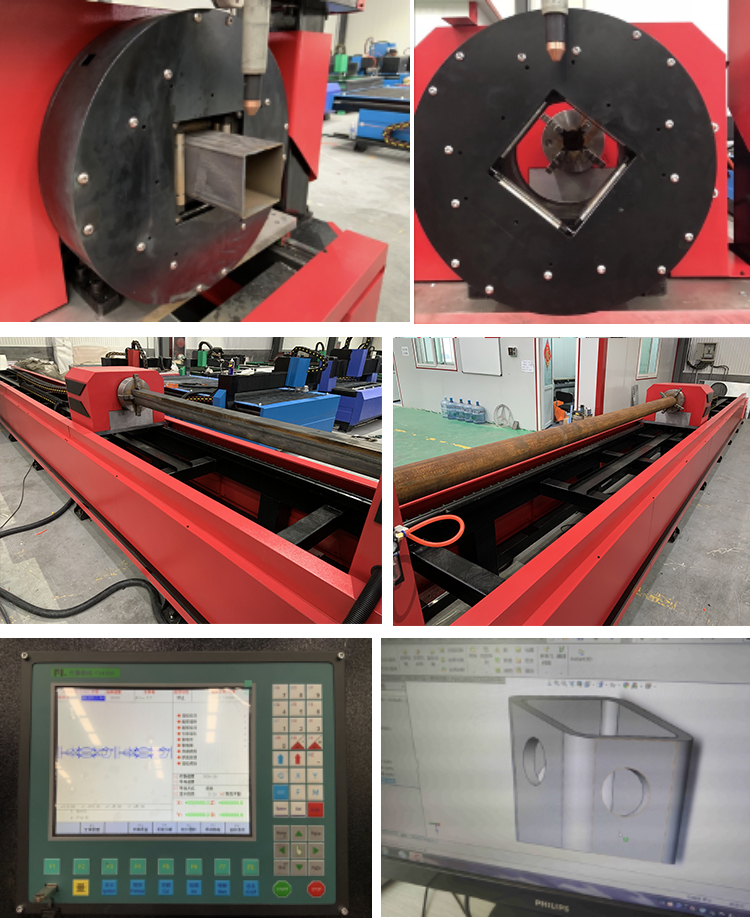

Pneumatic chuck, dual driver
Two chucks can work at same time, what is to confirm cutting precision.
Pneumatic chuck is more smart, it can open and fix pipe by switch automatic, easy to confirm the center place than normal chuck. It not only can cut square pipe, also can cut round pipe, rectangular tube etc. Besides, it not only can cut square pipe surface, also can cut pipe angle.
Double driver is more strong power to make front and behind chuck rotate in same frequency to avoid smaller pipe be twisted when working to confirm cutting precision.
Model | WS-P6000 |
Rotary attachment | Max diameter 200-300mm, length 6000mm |
Head | Plasma cutting torch |
Usage | Metal round tube + square pipe cutting |
Design software | Solidwork |
Nesting software | TubeMaster |
Repeat positioning accuracy | ±0.05mm |
Process precision | ±0.3mm |
Transmission system
| Taiwan Hiwin Square guide rail |
Rack pinion with X Y and ball screw with Z | |
Max. cutting speed | 15000mm-20000mm/min |
Working voltage | AC380 /220V 3PH 50 /60HZ |
Control system | Fangling |
Instruction format | G code |
Drive system | Servo motor and drivers |
Relay accessories | Schneider |
Nesting Software | FASTCAM |
File output mode | USB interface |

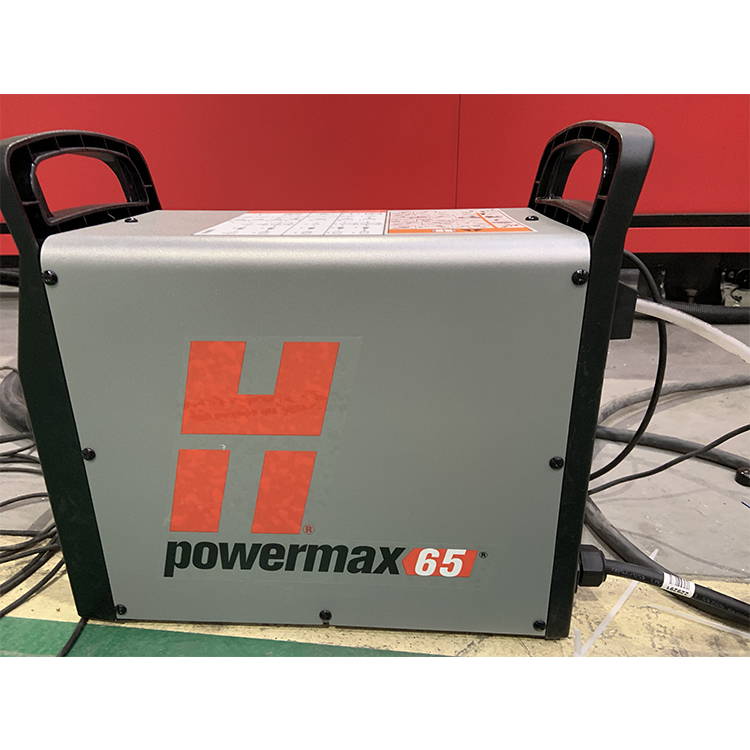

Plasma source | China Huayuan 63A/100A/120A/160A/200A US Hypertherm 45A/65A/85A/105A/125A/200A |
Cutting thickness | Depends on the plasma source |
Looking forward to serve and cooperate with you. Welcome to contact with us now to get special USD500 discount!
