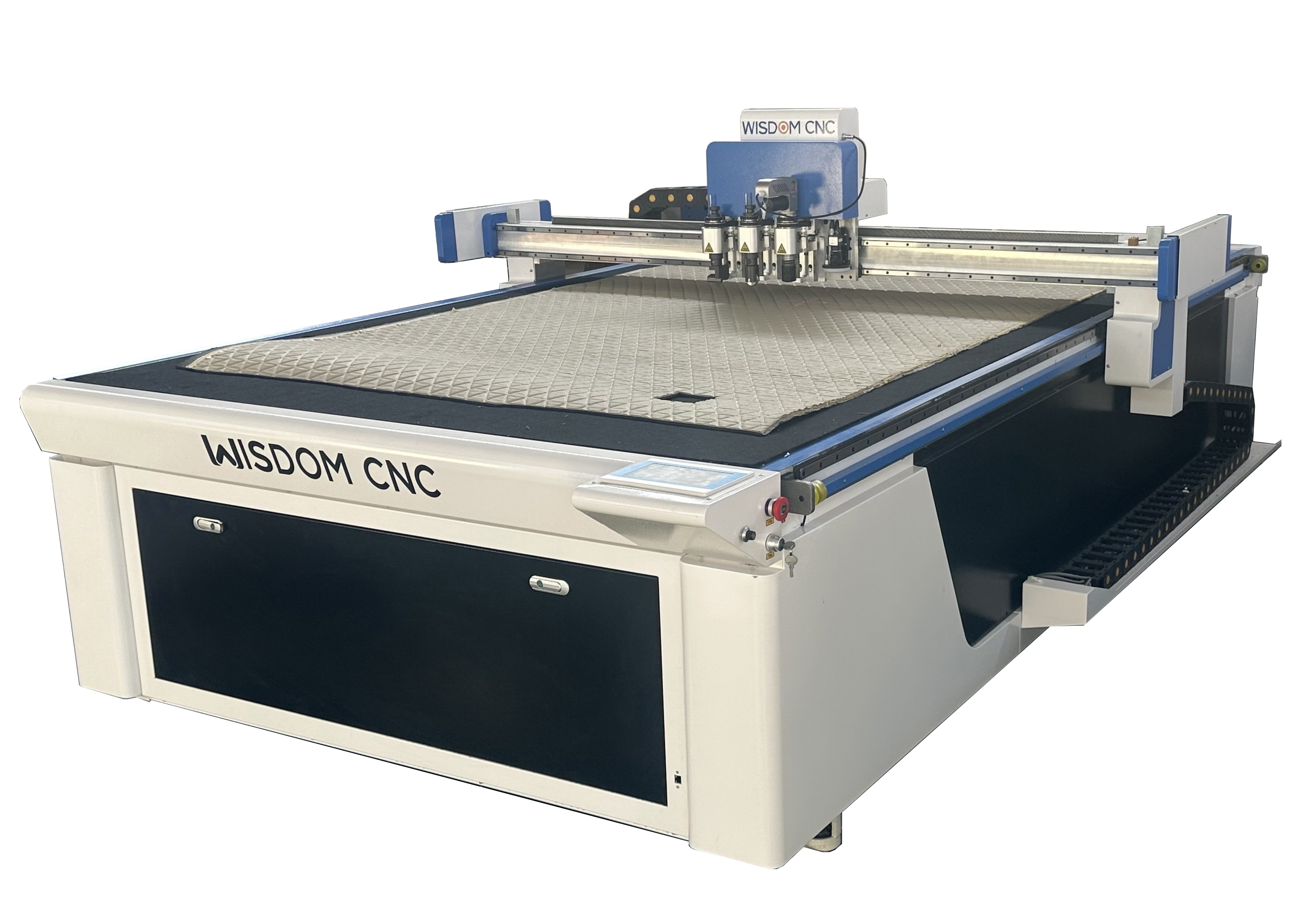

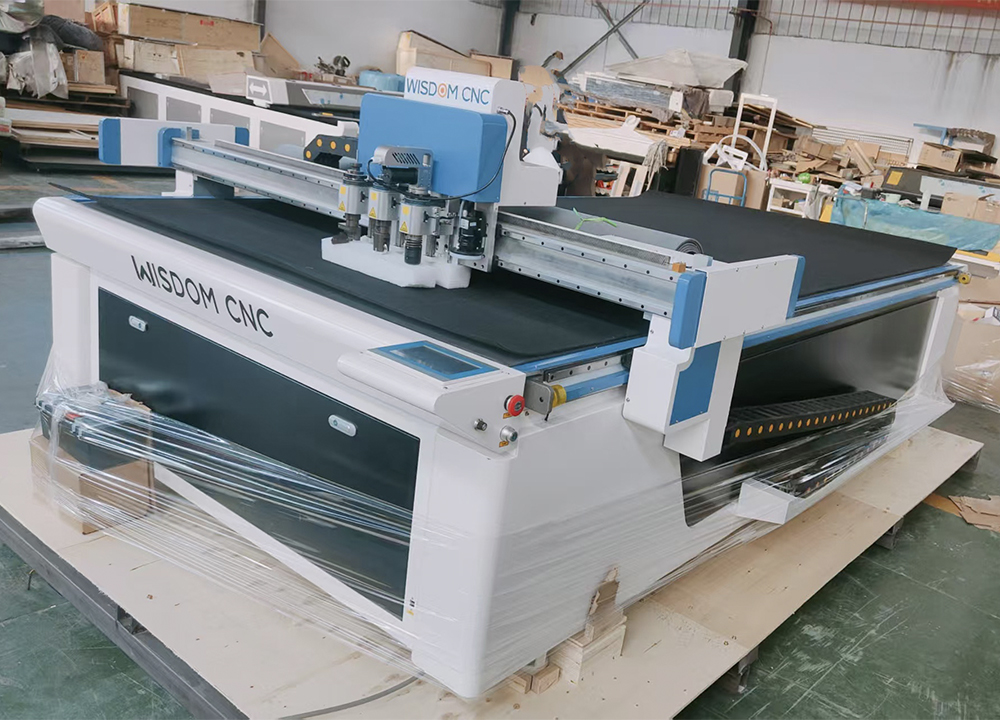

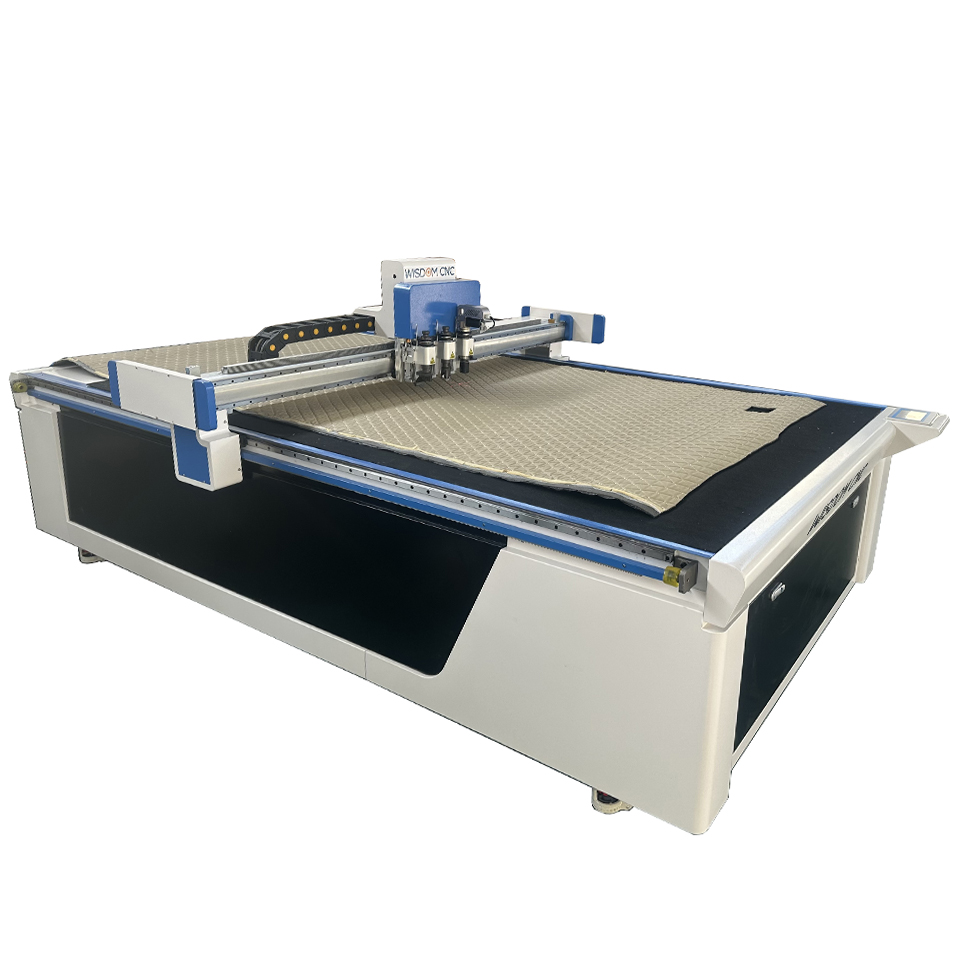

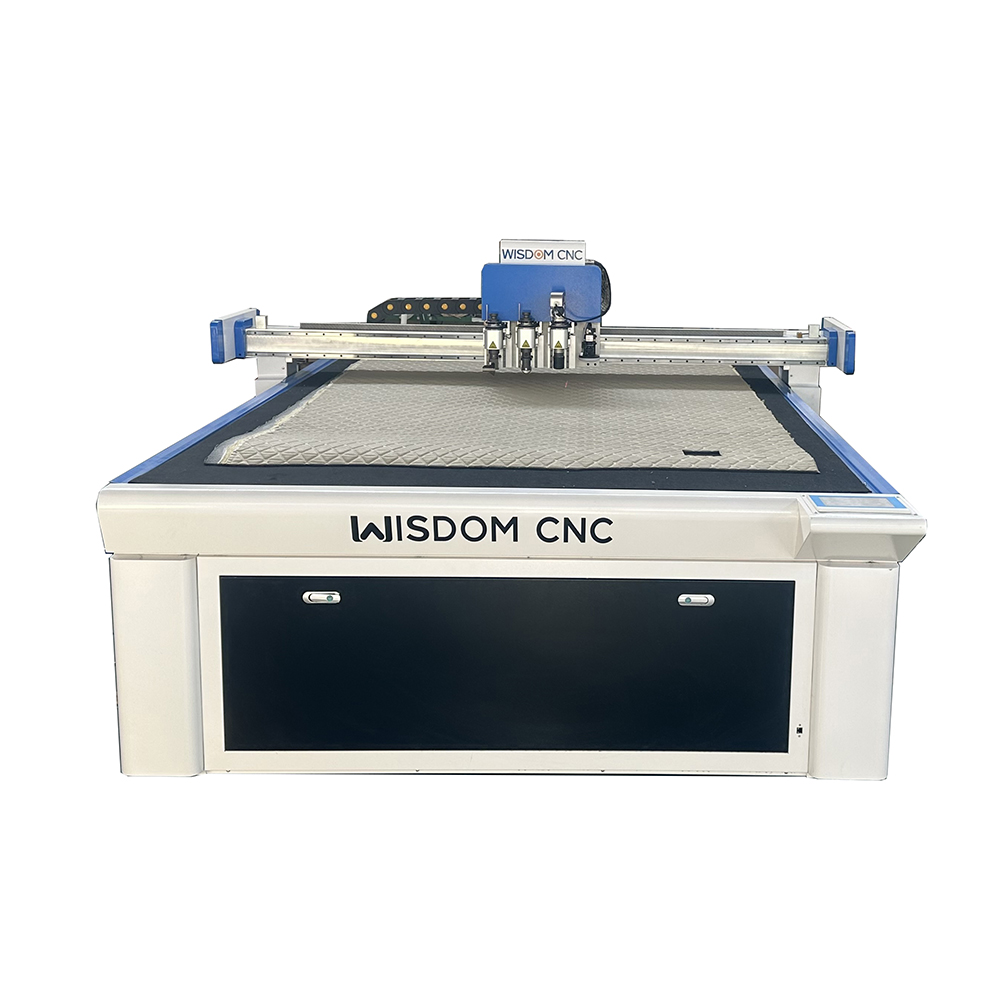

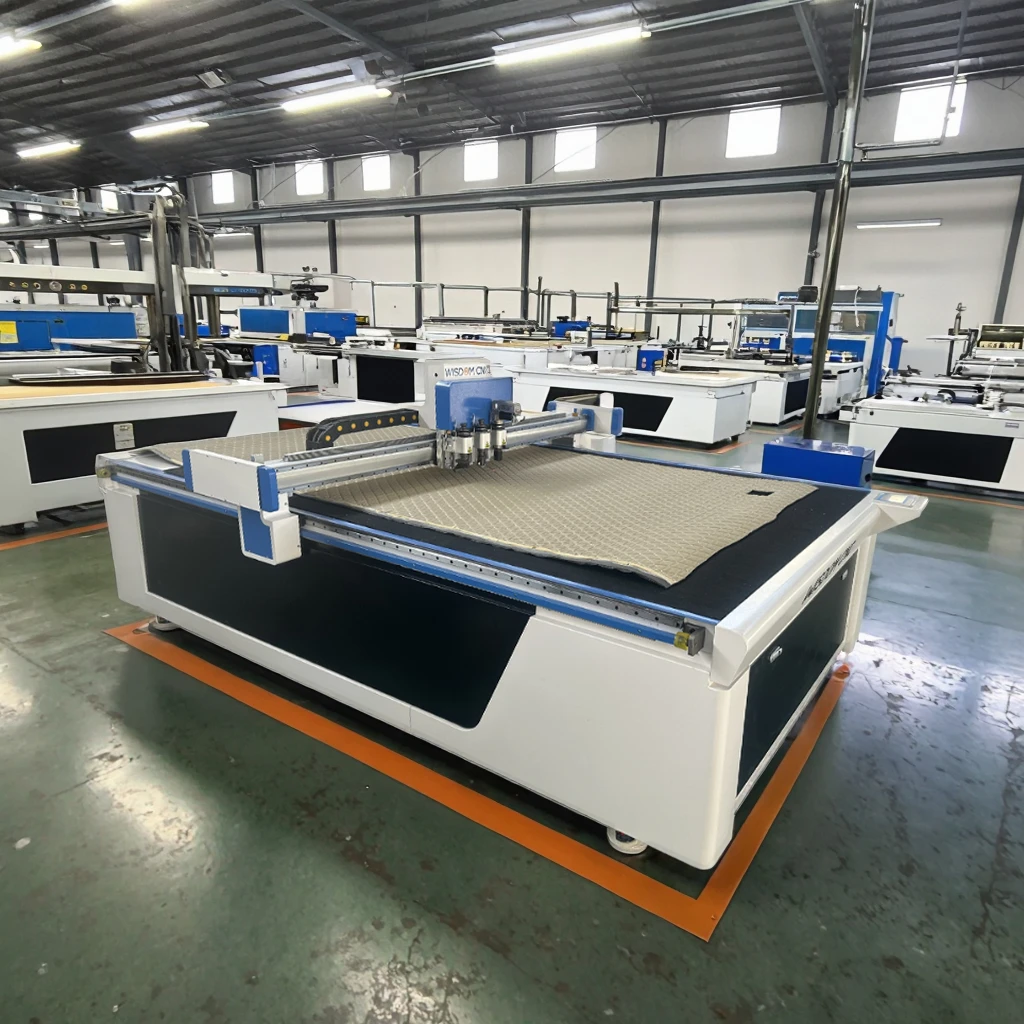

WS-K1625
1600x2500mm
Servo
Ruida
Vacuum
Product Description
Soft plastic PVC, fiber glass, leather, sticker, polycarbonate, cardboard, fiber glass,corrugated cardboard, film, foam board, acrylic board, rebound rubber, rubber cloth, gasket material ,garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.
Oscillating blade: The machine's primary cutting tool is a blade that vibrates at high frequencies (up to 20,000 times per minute) as it moves down through the material.
Clean and precise cuts: This high-speed oscillation slices through materials cleanly, preventing tearing, fraying, or distortion that can occur with other cutting methods.
CNC control: A computer numerical control (CNC) system guides the cutting head, allowing for complex, high-precision, and repeatable cuts according to a digital design.
Flatbed design: The material is placed on a flatbed, and the cutting head moves over it to perform the work. Many systems use a vacuum to hold the material securely in place during cutting.
Versatility: Can be used with a wide range of materials, including soft materials like fabric and foam, and some harder materials like certain plastics and composites.

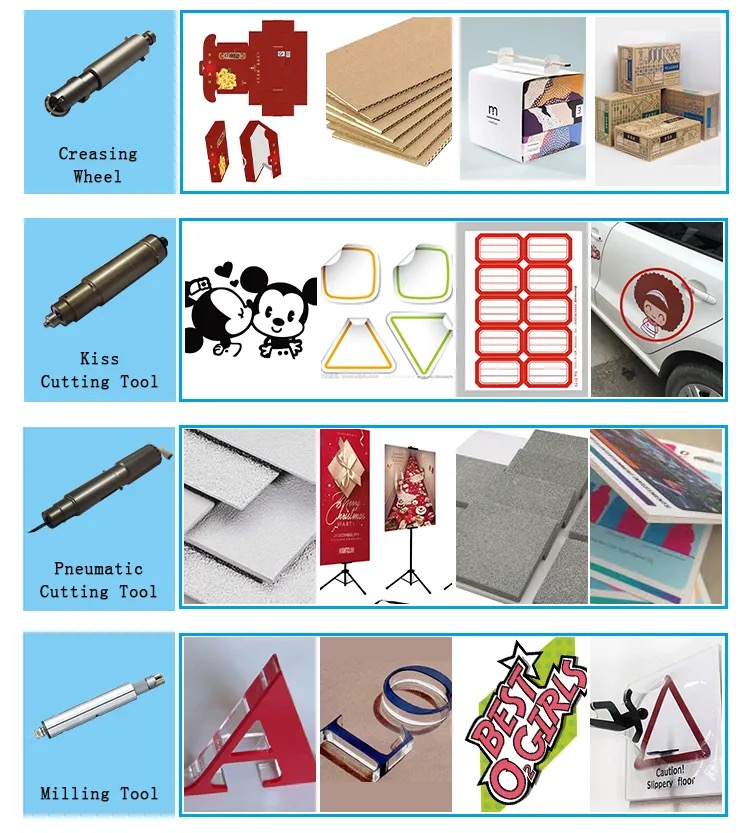

Multiple tools: Many machines have a multi-tool head, allowing them to perform various functions beyond simple cutting, such as creasing, kiss-cutting, V-cutting, and even drawing.
Automation: Features like automatic material feeding and intelligent nesting can be included to speed up production and reduce manual intervention.
High precision and speed: These machines can achieve high accuracy and cutting speeds, making them suitable for both intricate designs and high-volume production.
Model | WS-K1625 | |
Working area | 1600*2500mm | |

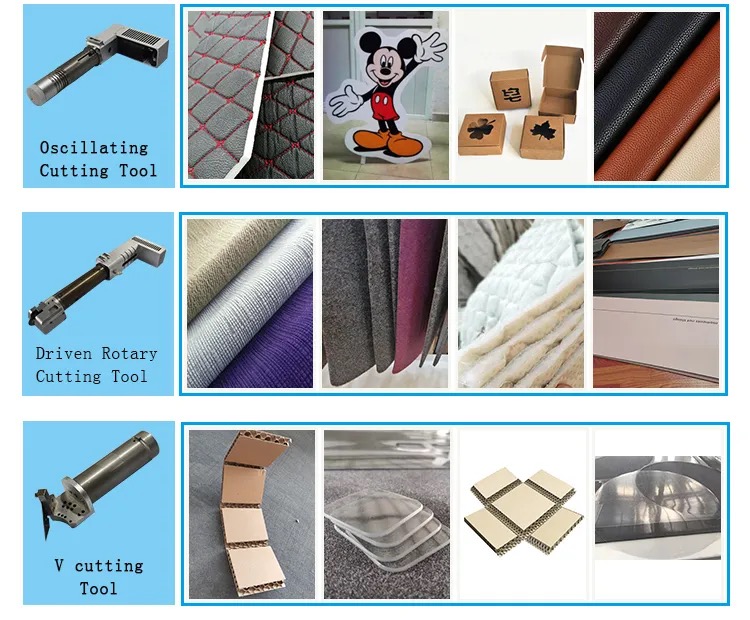

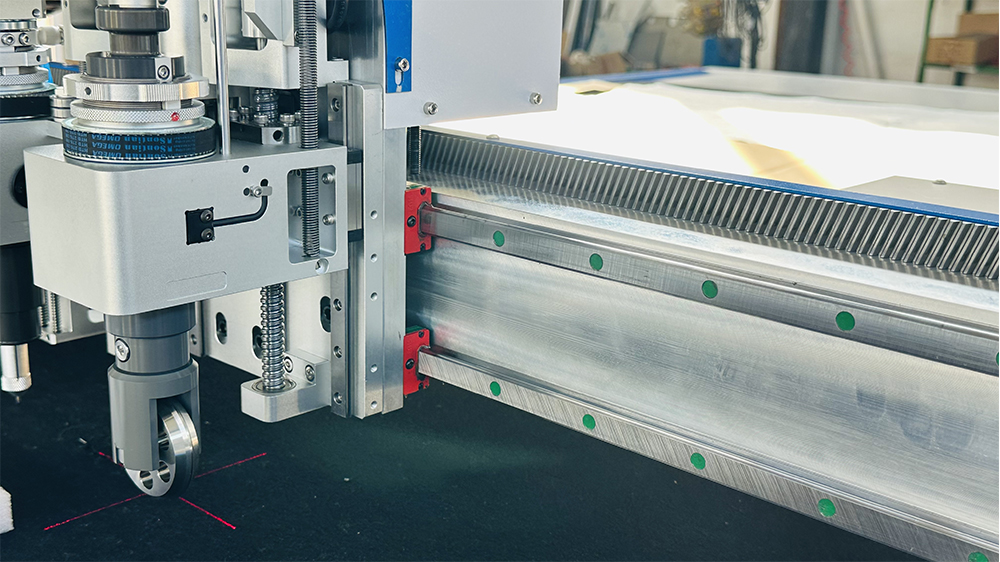

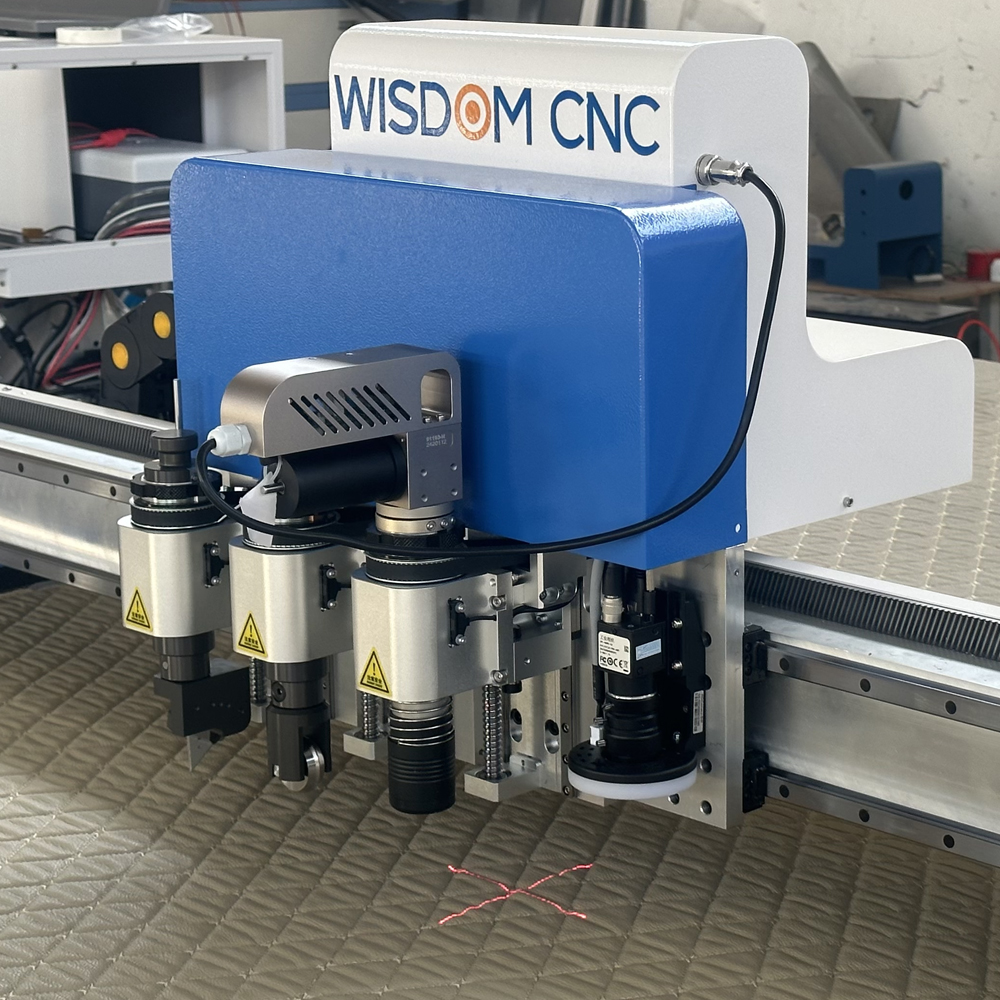

Multifunctional head | *Oscillating knife tool *Creasing wheel* V-Cut tool *CCD camera | |
Tool configuration | Multiple cutting knives | |
Using infrared sensors, responsive, safe and reliable | ||
800-1200mm/s | ||
Cutting speed | 200-1000mm/s(according to different cutting materials) | |
Cutting thickness | ≤22mm (according to different cutting materials) | |
Cutting materials | Carton, Cardboard, Corrugated box, Paper, Soft PVC etc. | |
Buffer Capacity | 2GB | |

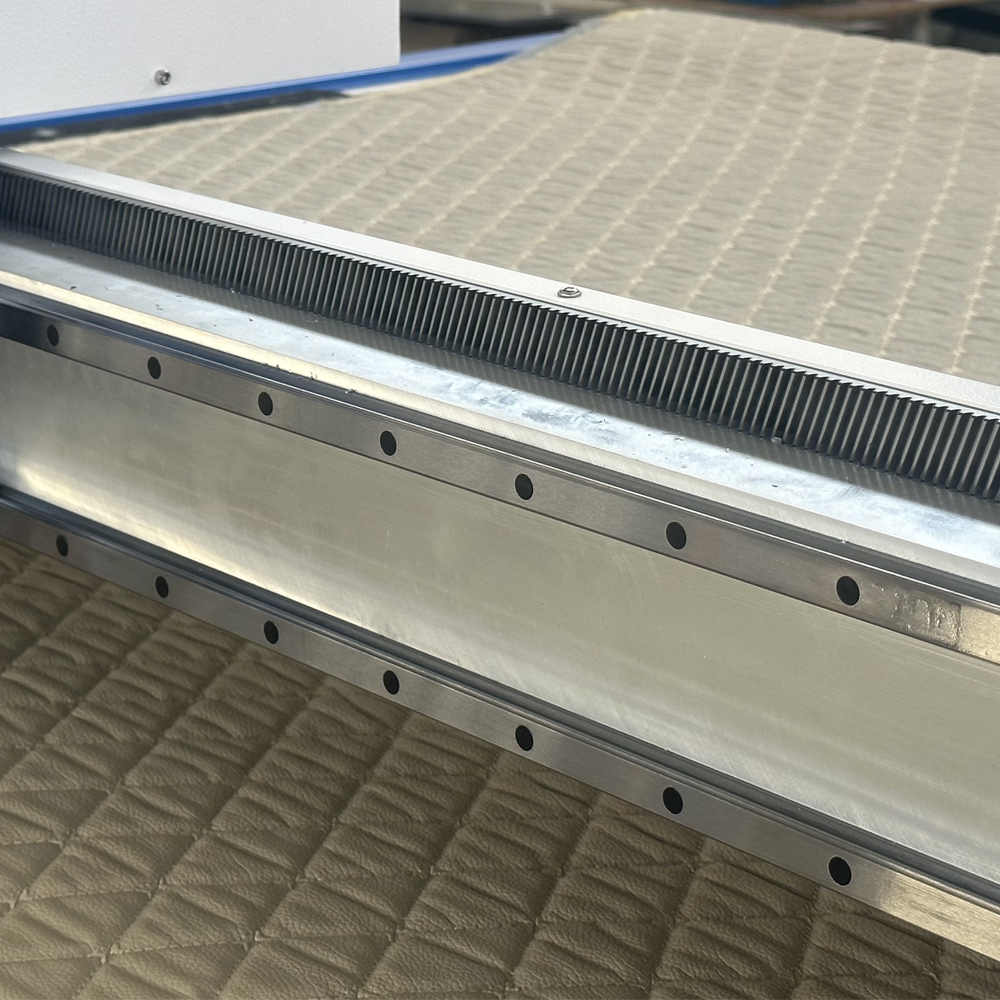

Transmission system | Digital servo motor, linear guide, synchronous belt | |
HP-GL compatible format | ||
Voltage | 380V 50/60HZ | |

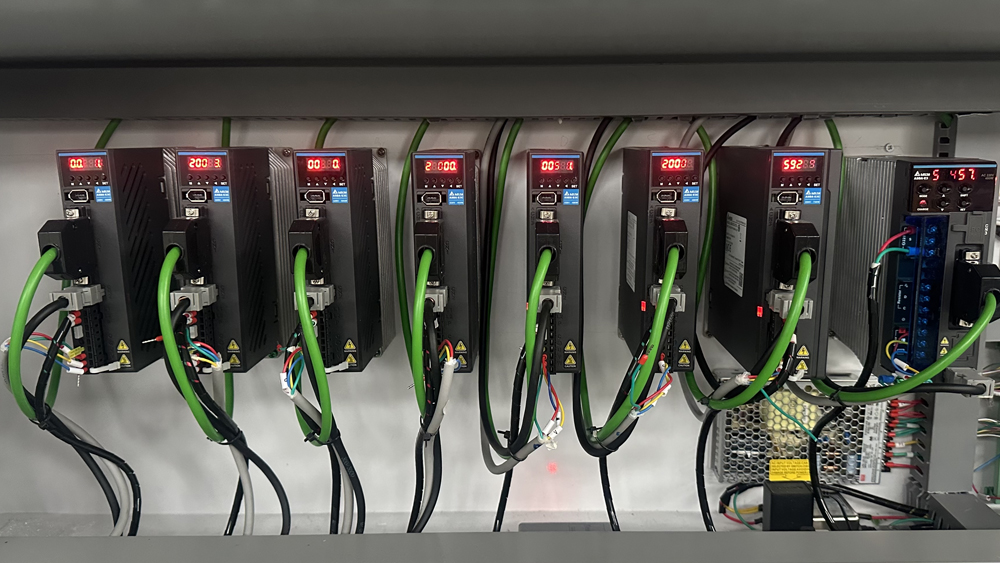

Other configuration | Delta servo motor, Germany imported conveyor belt, Vacuum table, Taiwan square rail, 7.5kw vacuum pump | |
Material fixing method | High power vacuum absorption and intellectual partition 8 zones | |
Repeated positioning accuracy | Maximum 0.01mm | |
Mechanical Precision | Maximum 0.02mm | |

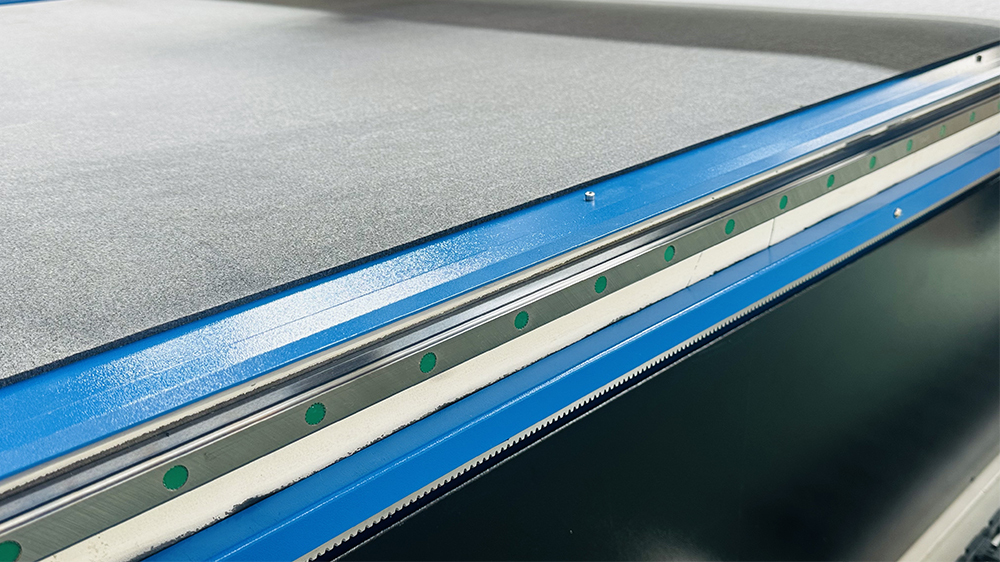

Drive system | Belt transmission, AC servo motor, linear guide rail | |
Operating mode | Operation platform + data output control software (operation platform can be divided into connected and separated parts) | |

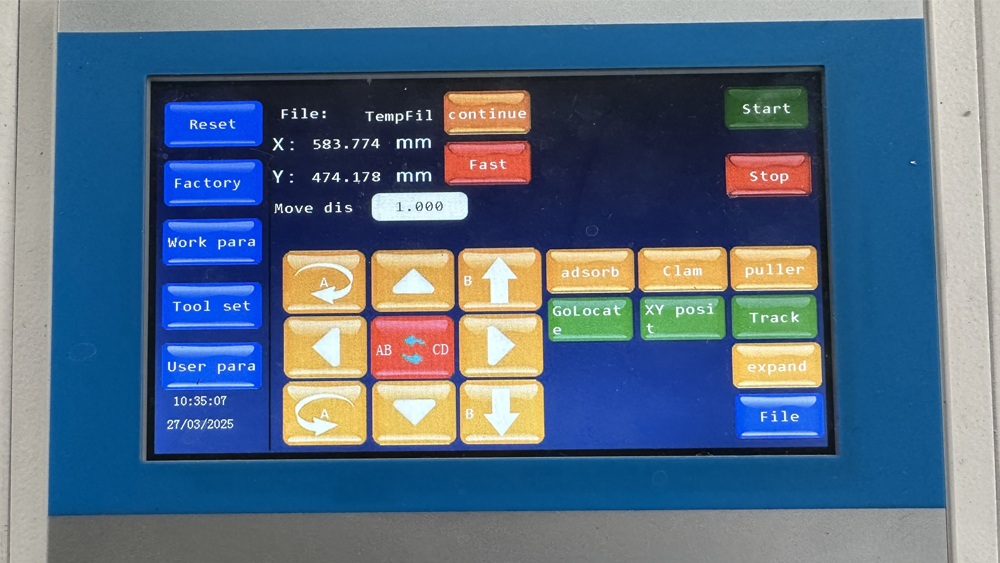

Display mode | English LCD screen | |
Data transmission method | Ethernet | |
 |  |
 |  |
 |  |
