WS-K1325
1300x2500mm
5.5kw/6.0kw/7.5kw/9.0kw
Stepper /Servo
NC Studio/MarkCut
Vacuum+T-slot
CAD/Artcam
Product Description

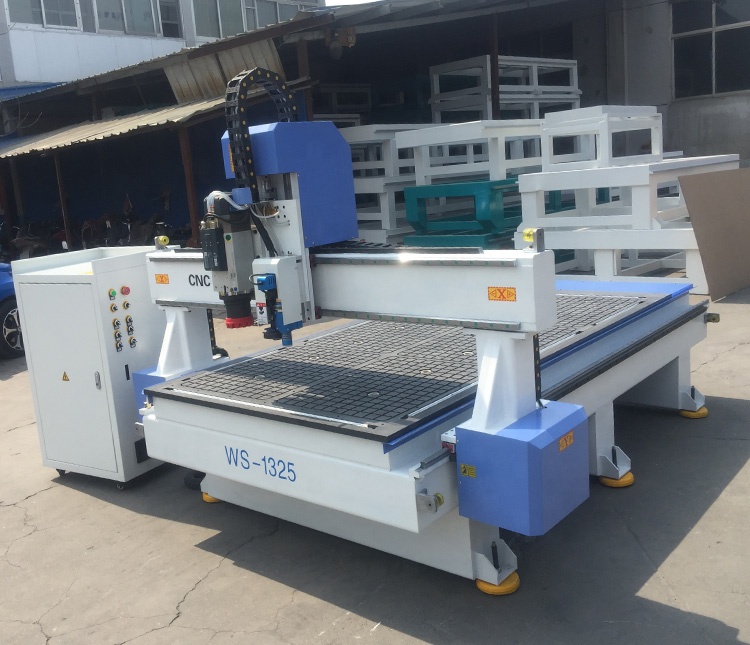

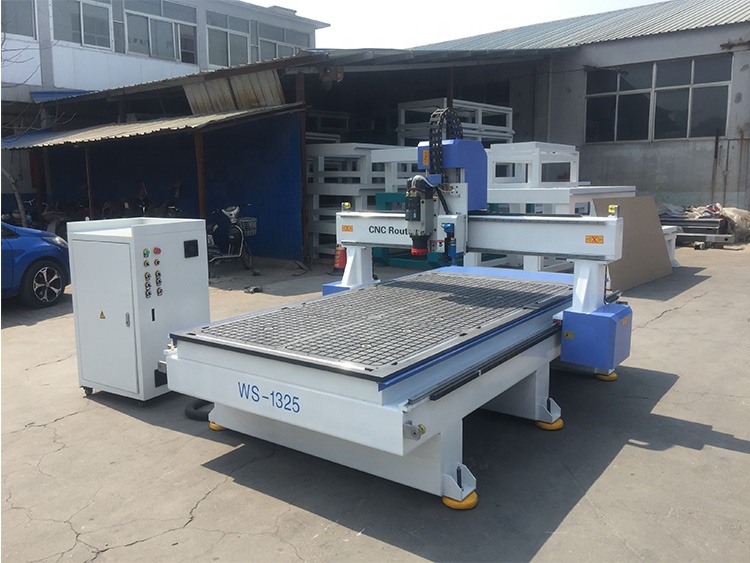

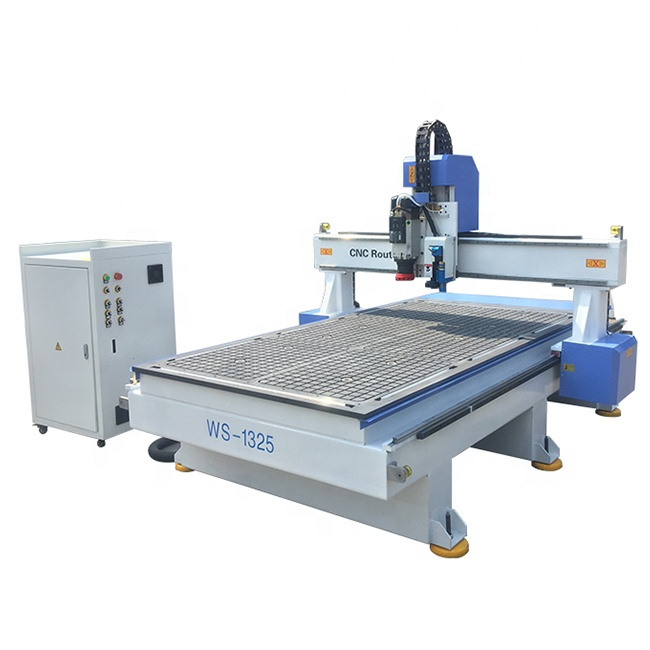

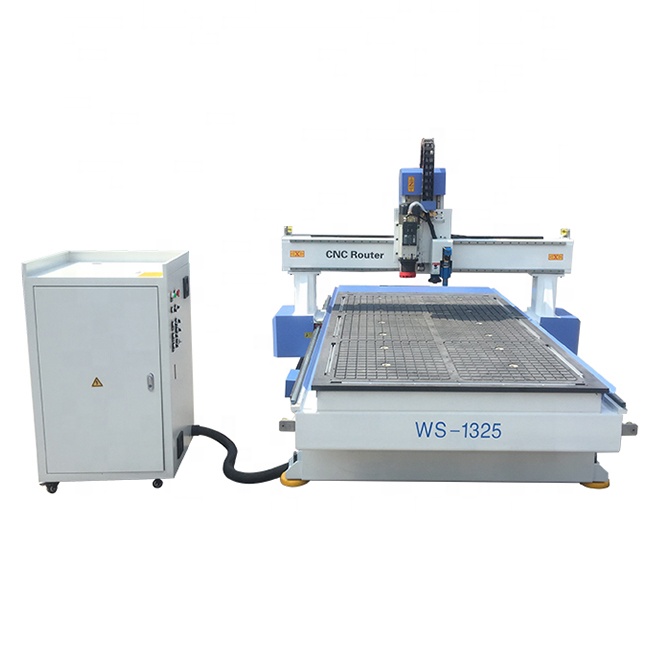

WS-K1325 ATC CNC Router 1325 Oscillating Knife Cutting Machine with CCD Camera
Application:
1. We equipped our machine with the Famous brand Japan Yaskawa servo,and HSD 9kw aircooling ATC spindle,can achieve deep carving work with high precision stably and smoothly.
2.It is mainly used for acrylic,mdf ,pvc board processing, wave board production,various types of artificial board shaped cutting, neon channel literally cutting light box molding, aluminum acrylic cutting.
3.Oscillating knife: Especially for cutting flexible material PVC, KT board, thick foam, aluminium-plastic composite panel, polypropylene hollow sheet, foot pad,leather.
4.CCD System:Automatic tracing-edge CCD camera. It use Four-point positioning technology for label cutting.
Perfect for sign making, such as channel letters carving.also used for door and furniture carving.
Features:
Combine the functions of spindle cutting, CCD camera and oscillating knife cutting.
1. Welded structure by thick steel tube welding under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.High accuracy, long service time, steady movement
2 Adopt linear guide rail, make sure the machine square the accuracy and can withstand large load
3. Mechanical and electrical design, selection of straight excellent brand electrical accessories
4. 9KW HSD ATC spindle power change knife spindle to ensure the machine can be vigorous cutting
5 Breakpoint power function for carving
6 Auto lubricating system, one touch can finish periodic maintenance easily.
7 Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa.
Intelligent processing
8. New function add oscillating knife for cutting soft materials such as gasket, rubber, PVC,carton, PU
Technical parameters:
Model | WS-K1325 |
X,Y Working Area | 1300 x 2500mm |
Z Working Area | 300mm |
Lathe Structure | Heavy Steel lathe bed |
X,Y Structure | Helical Rack and pinion transmission, high precision than vertical one |
Z Structure | Thick ball screw,Hiwin linear Square guide rail |
Spindle | 9.0kw HSD air-cooling spindle |
Spindle Rotate Speed | 18000-24000r/min, variable speed |
Inverter | Fuling, good quality and popular |
Working Mode | Yaskawa Servo motor |
Driver | Yaskawa Servo motor |
Command | G code |
Operating System | Markcut /NC Studio |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | Air-cooling |
Work table | Vacuum absorption for spindle cutting Carpet layer for oscillating knife cutting |
Lubrication | Automatic |
Working Voltage | AC380V/50Hz,3 Phase |
Dust collector | 3.0kw with double bags, good dust collection |
WS-K1325 CNC Router Oscillating Knife Cutting Machine with ATC And CCD Camera Working Samples
After-Sales Service
1. Two years quality guaranty,the machine with parts shall be changed free of charge when if any problem during the warranty period (excluding the consumables).
2. Wholfe Life time maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day,free technical support.
5. Machine has been installed and tested well before shipping.
6. Provide technical service to the door.
