WS-H1325
1300X2500mm
Stepper/Servo
Ruida
Blade
Product Description

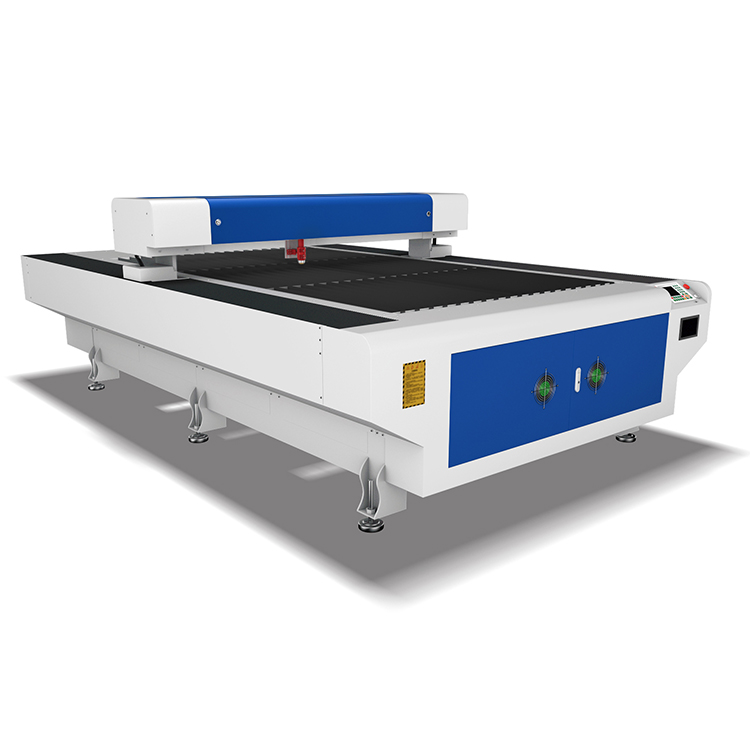

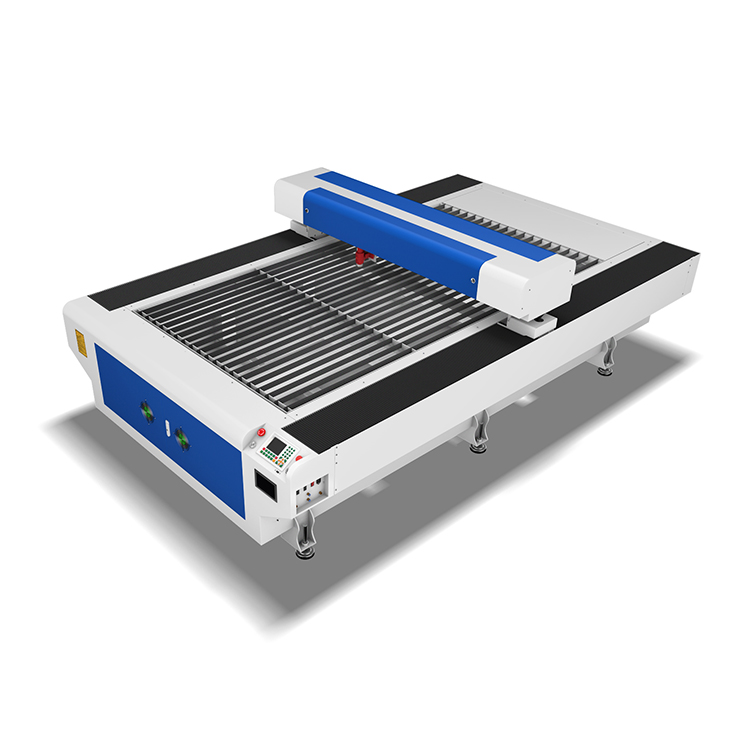

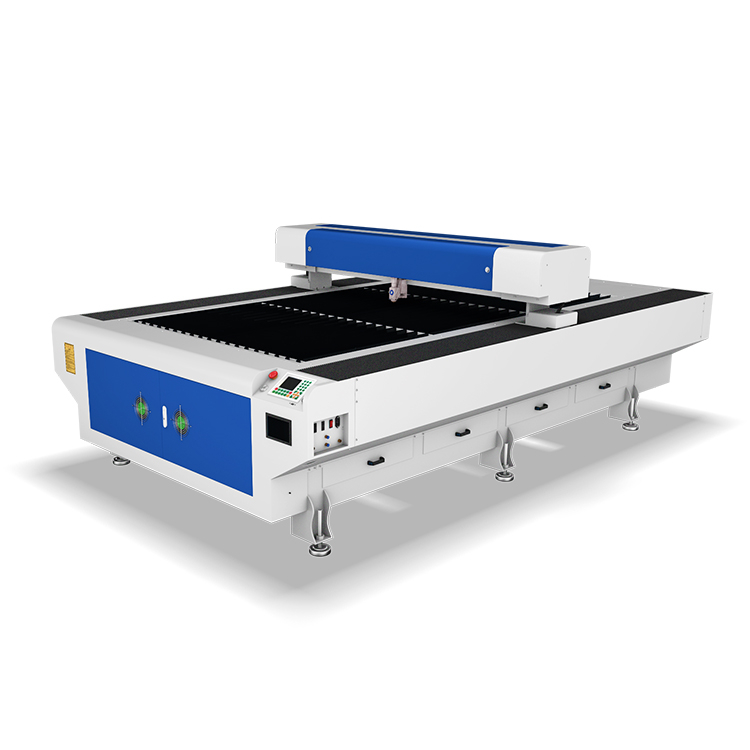

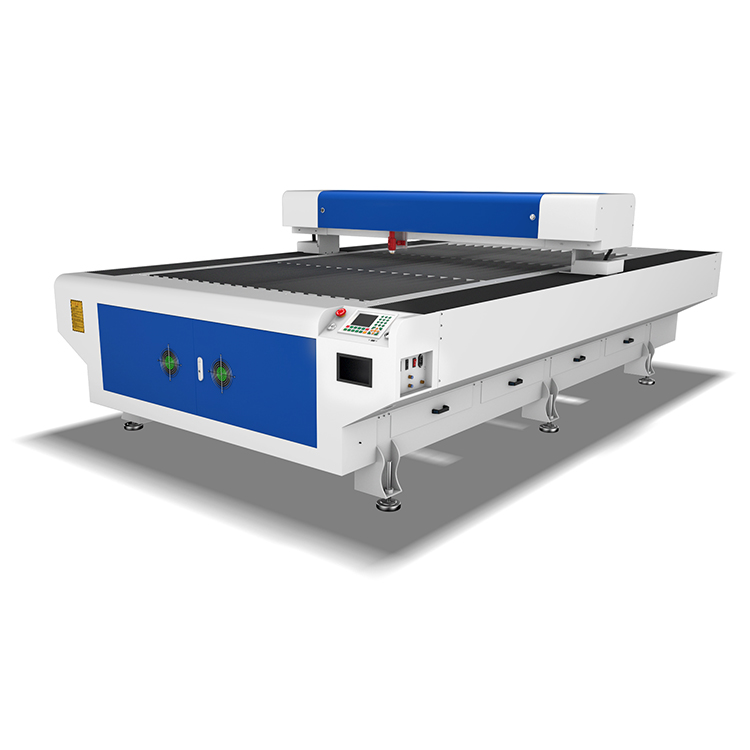

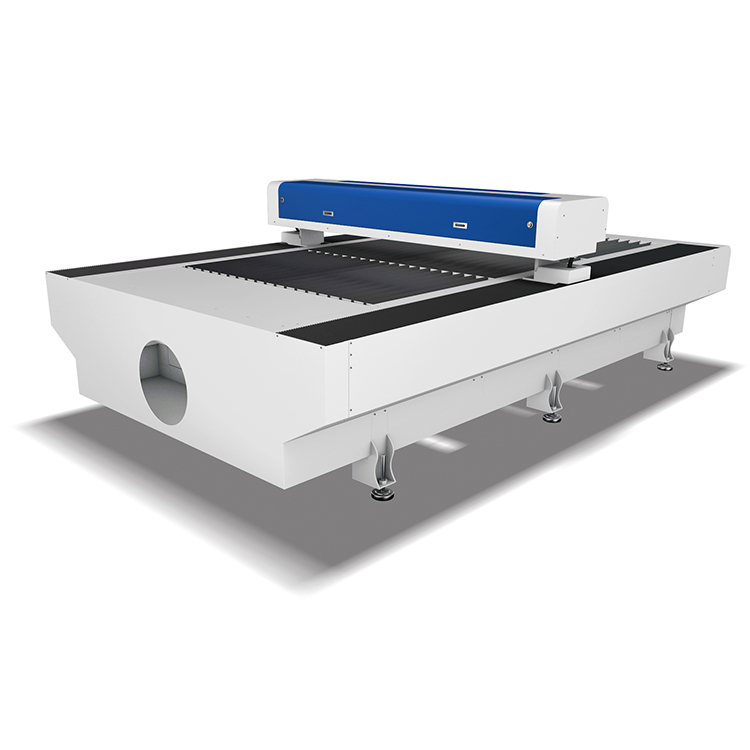

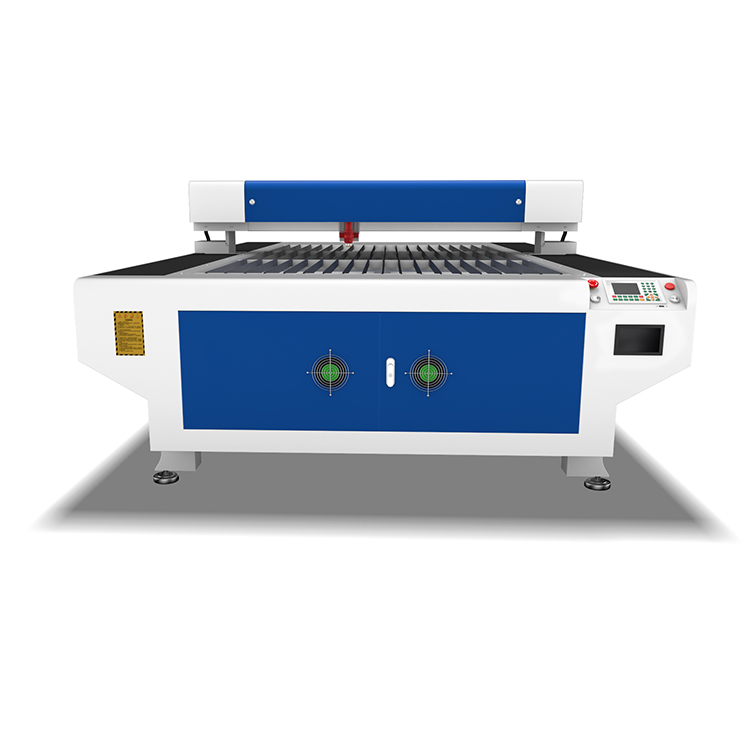

WS-H1325 Gear Rack Transmission 4*8 Feet Cnc Laser Cutting Machine
WS-H1325 Mixed Laser Cutting Machine for Metal And Nonmetal Features:
1 Designed with advance control system and driver to guarantee the stability and accuracy of laser machine.
2 Suitable for Metal and Non-metal Laser CNC Machine, and with high speed for both engraving and cutting.
3 The cutting and engraving depth can be adjusted automatically. So there is no need to making the second processing.
4 The 4*8 Mixed Cutter machine has been widely used for Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), package industry (die board), and so on.
5 Except for Mixed Cutter Machine, Co2 Laser engraving machine/engraver, CO2 Laser cutting machine/cutter and Fiber Laser Cutting machine can be provided for your reference.
Applicable Materials:
Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF and other materials.
Application Industries:
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries
Technical specifications:
| Machine model: | WS-H1325 |
| Working area | 1300*2500mm |
| laser type | Sealed CO2 glass laser tube, wavelength 10.6um |
| laser power | 150W/180W/220W/280W/300W |
| Cooling mode | Pure circulating water cooling |
| Control system | DSP offline control system, laser power software 0-100% adjustable |
| Max. engraving speed | 0-60000mm/min |
| Max cutting speed | 0-30000mm/min |
| Repetition accuracy | ≤±0.01mm |
| Min. letter | Chinese: 2.0*2.0mm; English: 1.0*1.0mm |
| Working voltage | 110V/220V, 50Hz~60Hz |
| Working condition | Temperature: 0-45℃, humidity: 5%-95% (No condensation) |
| File formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, support AutoCAD, CoreDraw software |

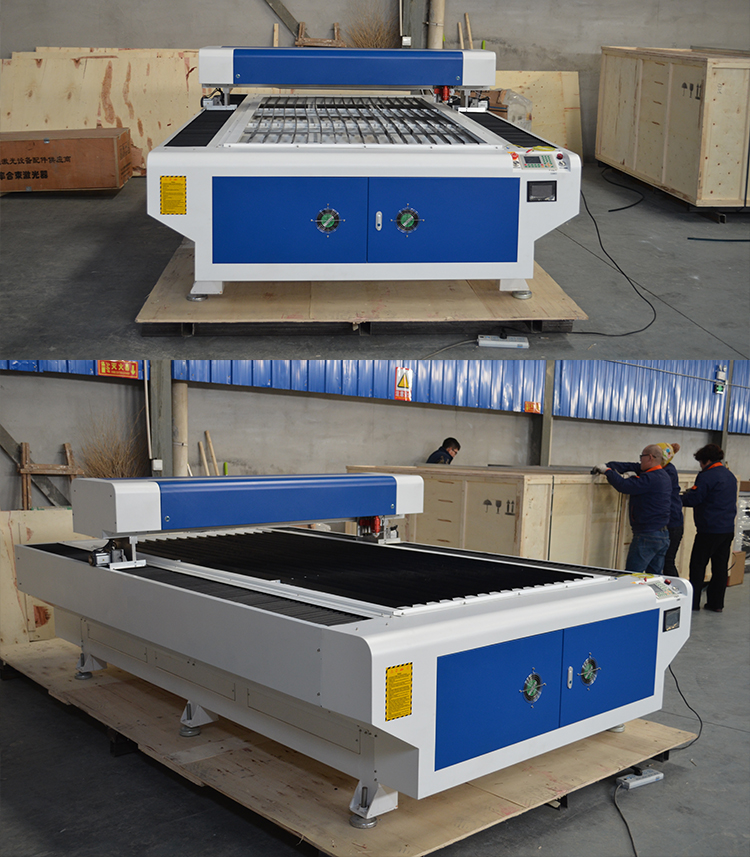

WS-H1325 Mixed Laser Cutting Machine for Metal And Nonmetal Details:
Optional parts:
Motorized up-down table.
With this function, the machine table can be lifted in Z direction (up-and-down) to get more working space. It is necessary if you use rotary or engrave/cut items thicker/higher than 50mm.

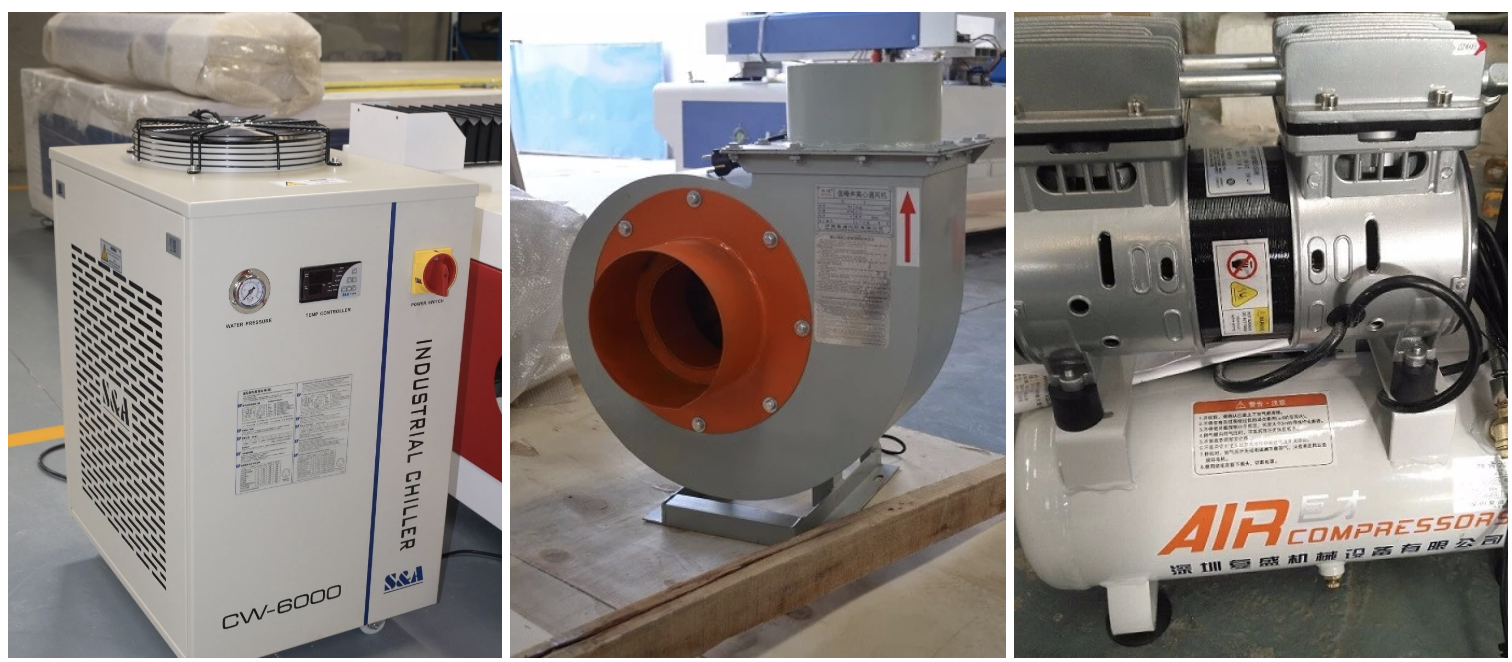

Assistance accessories:
1. Industrial Cooling System S&A brand CW-6000 water chiller
Constant water temperature ensures laser tube a longer service time and high stability
2. Exhaust Fan 1500w
Exhaust fan removes dust and smoke to protect the optical parts and the users.
3. Electromagnetic air compressor is optional
The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.

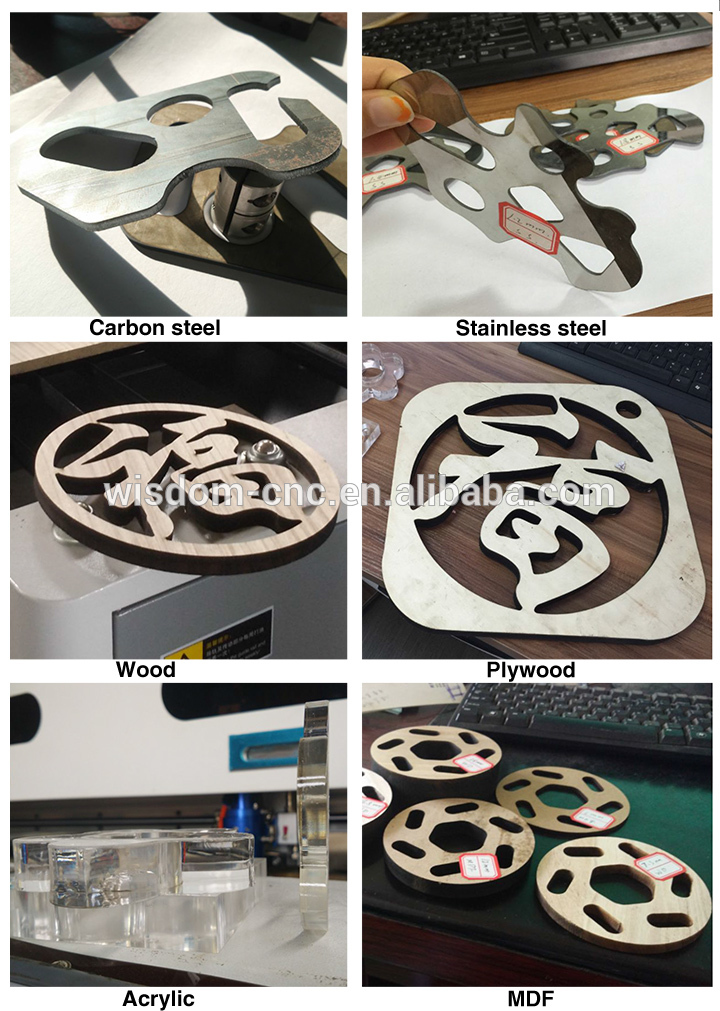

WS-H1325 Mixed Laser Cutting Machine for Metal And Nonmetal Samples
After-Sales Service:
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24/7 on-line receiving your question or requesting.
* Providing solution within 12 hours.
2-YEAR WARRANTY, LIFETIME MAINTENANCE
1.Two-year warranty for the machine, except for consumables.
2.Laser tube warranty:
- CO2 40W, 50W, 60W tubes: 3 months;
- CO2 80W tube: 8 months;
- CO2 100W, 130W, 150W, 180W tubes: 10 months;
- CO2 280W, 300W tubes: 12 months.
3.Optical lens and mirrors are not within warranty scope.
Company Information
Company introduction:
Jinan Wisdom CNC Equipment Co., Ltd is one of the premium and quality-focused manufacturer and supplier in China integrating manufacture, research, marketing and service. We design, develop and manufacture CNC router machine (CNC wood router, stone engraving machine, metal engraving machine, 3 axis CNC router, 4 axis CNC router, 5 axis CNC router, 3D CNC router, CNC milling machine), CNC wood turning lathe, CO2 laser engraving and cutting machine, laser marking machine, fiber laser cutting machine, plasma cutting machine, etc.
Quality makes the core of our organization's philosophy, we are committed to providing customers with high quality products, competitive prices, excellent services and customized solutions. For decade of years development, our products have good market in more than 70 countries and regions including Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. Besides, we have 24hr customer service hot line, regularly consult customers' needs and suggestions to further improve our products and service.
We make use of the rich Internet information, integrate global market resource, and create a unique marketing and brand promoting mode belonging to "Wisdom". We insists on customer-oriented and non-stopping innovating to achieve common benefits, we whole-heartedly supply products with competitive price and perfect solutions to all users in all kinds of industries.
Laser Cutting Machine Workshop
Packing and Delivery
Packaging and delivery:
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
FAQ
FAQ:
A. This is our first cooperation with you, are you believable?
First we are legal China company, with complete formalities.
Second we have been in cnc business industry for 8 years, with long term cooperated agent and end client, and we work for exporting for 8 years, we deal all based on machine quality and honest service.
Third, we can deal from alibaba assurance which can make sure your quality and delivery, we accept all the supervision from the third party.
B. how to select the laser cutting machine for our first time?
We will select suitable machine according to your detailed work, such as working size, engraving or cutting, working materials and thickness.
C. How to deal with you?
We will make a PI according to our negociate with you about the machine details.
Then you can arrange prepayment for us, after we receive prepayment, we will arrange the manufacture, when machine done, we will take pictures and videos for you, if you satisfy please arrange the balanced payment, then i will arrange ship for you.
D. What's the warranty?
We will provide full 24 months warranty, and whole life time free service. Video call, online support, email communications, Teamviewer support are available.
E. how to learning machine?
We will provide operation manual and working video to guide you how to use it. Our engineer always support as well.
F. How to choose a most suitable laser cutting machine?
1. please tell us your processing material? Metal or nonmetal.
---For wood,acrylic,plywood,mdf,etc nonmetal materials engraving and cutting, choose standard laser cutting machine.
---for both thin metal and nonmetal, steel,stainless steel,carbon steel, choose economical hybrid laser cutting machine.
---for fabric,textile,choose auto feeding laser cutting machine or CCD laser cutting machine.
---please tell us your material size?
We have standard size 600x900mm,1300x900mm,1400x900mm, 1600x1000mm, 1300x2500mm,etc.
G.How do you send your laser cutting machine?
They are firstly greased thoroughly and packaged in a free-fumigation wooden crate.
Usually, we send machine by ship, sometimes, as customer’s requirement, send by air or by train.
When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered.
Or we can arrange the cargo agent to send goods to your door.
H.Does machine comes with software?
Yes, we offer intelligent and compatible software with machine, so it will be more convenient for you to operate machine.
I. Do you offer training about products?
Yes, customer could get free training at our factory; or we can assign technician arrive at customer’s company for the training at some charge, and accommodation, food, tickets will be charged.
