Product Description

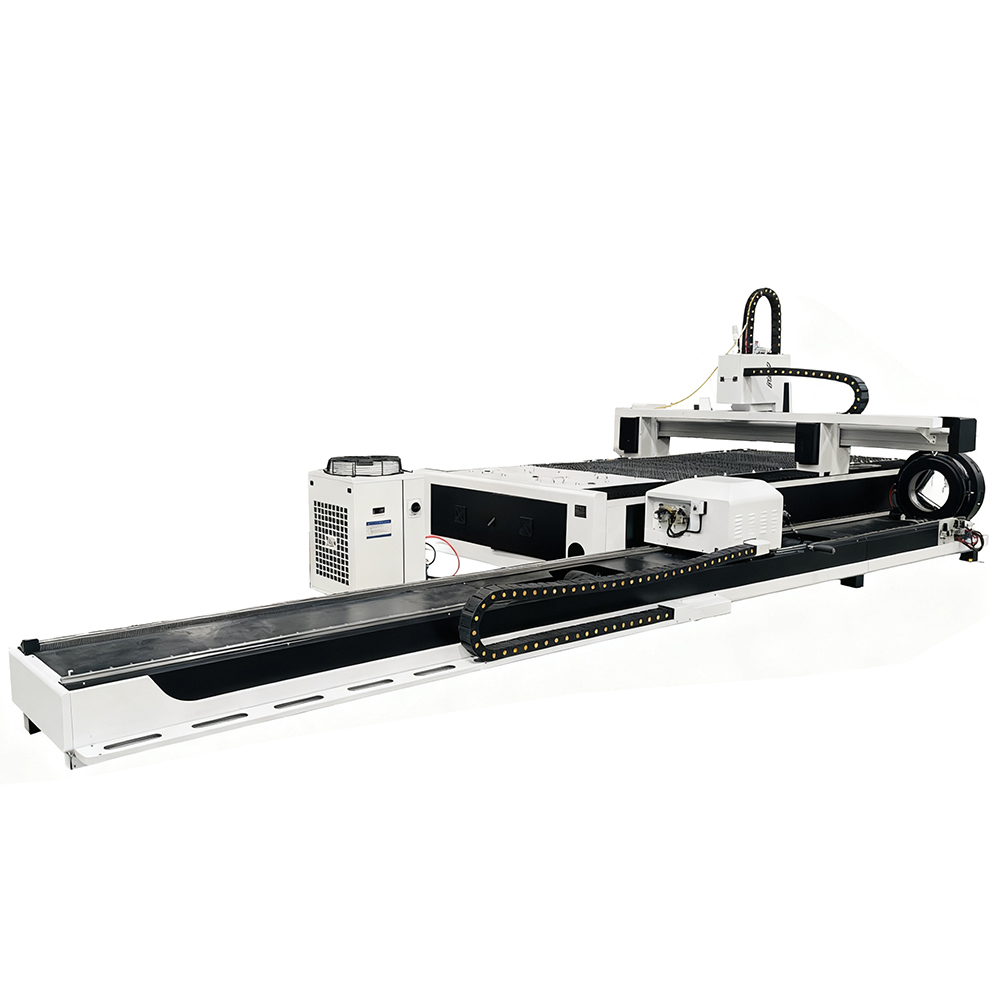

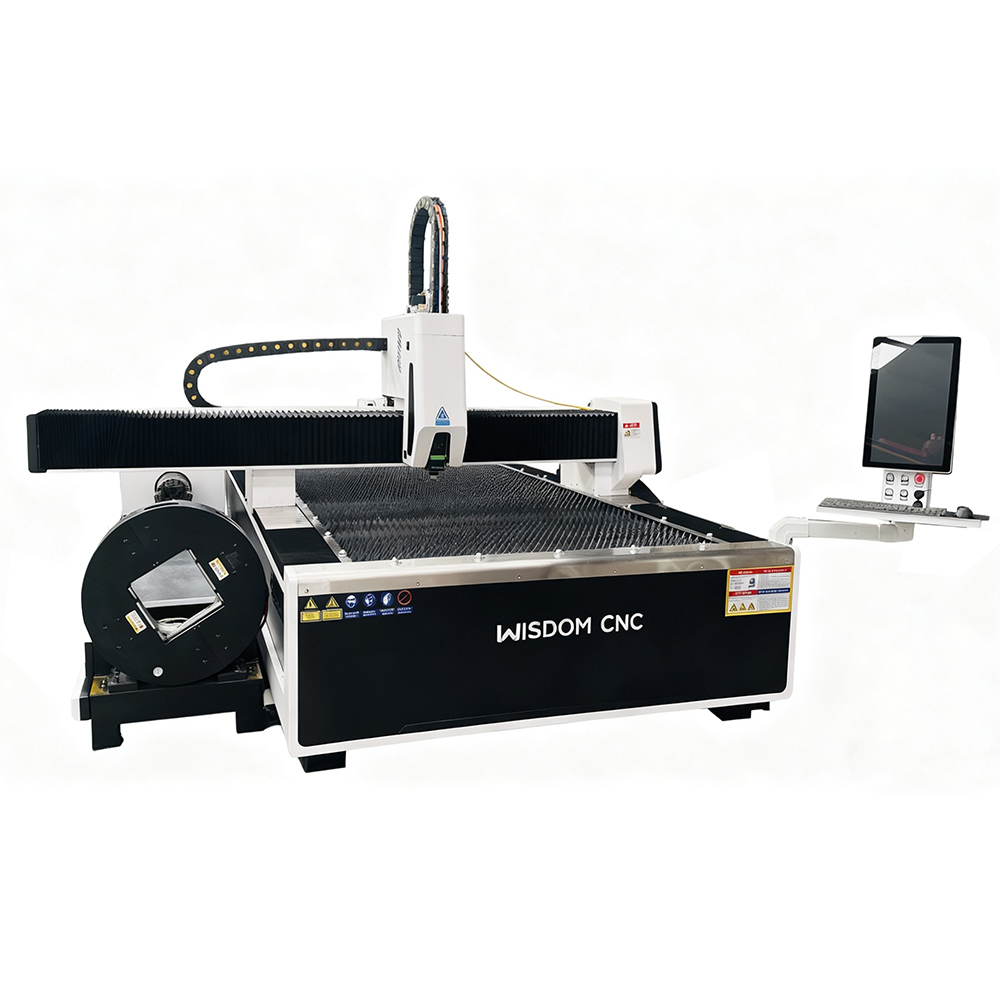

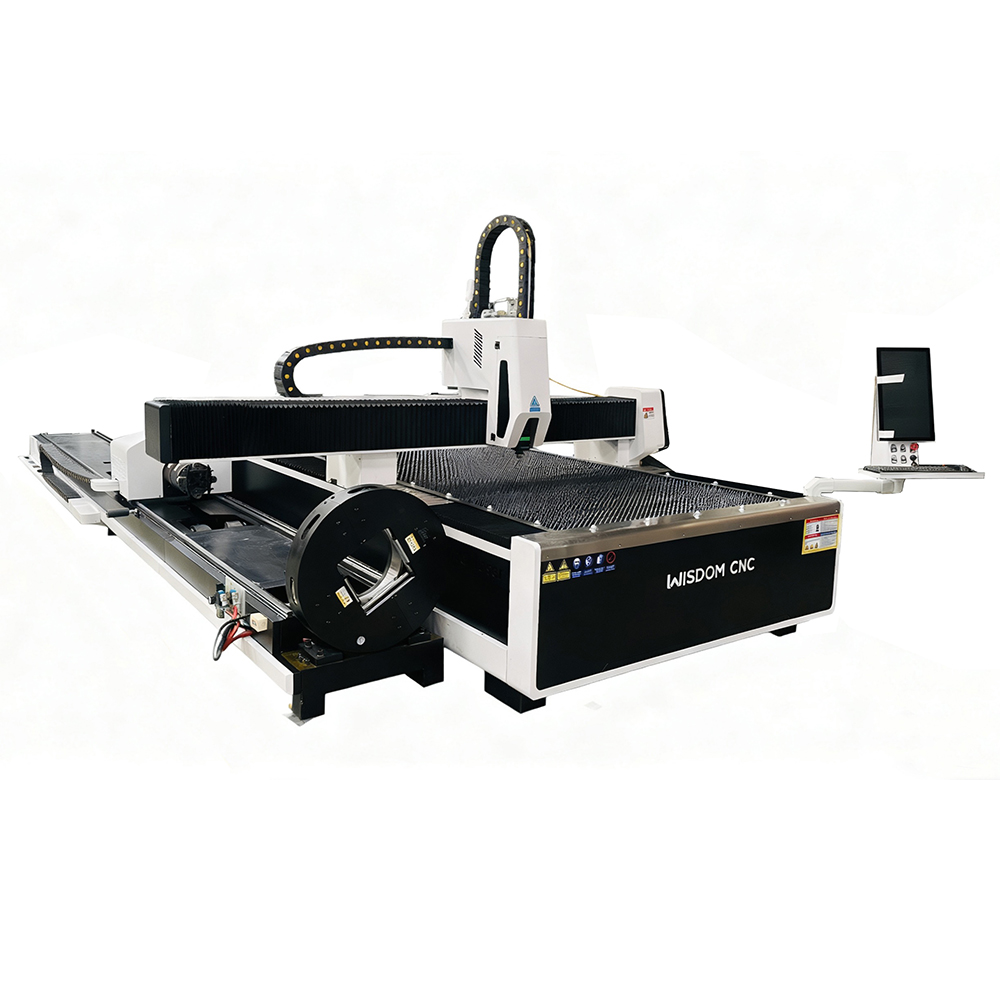

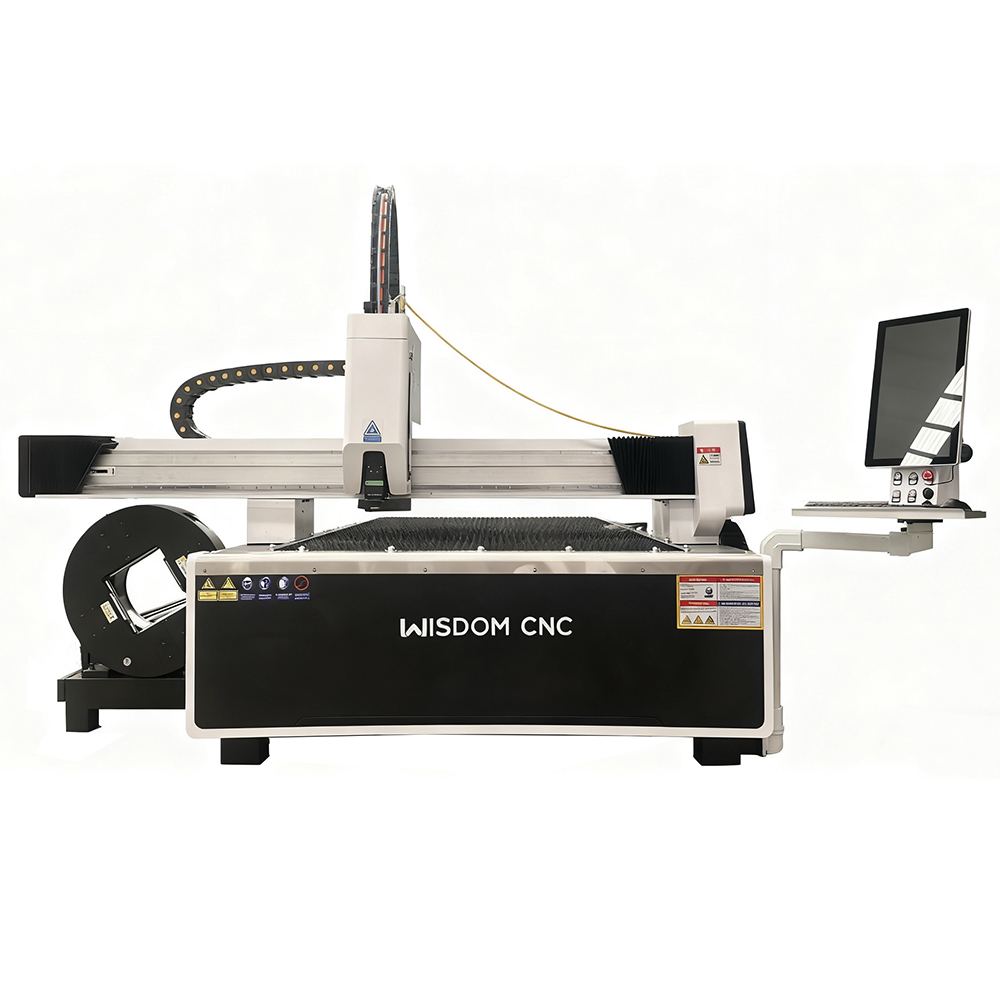

In order to meet the increasingly complex needs of consumers,we independently developed sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.
1. It has strong cutting ability, low operating cost, excellent stability, high-quality processing and strong adaptability, and can process large plates to meet the market's production needs for large-format fiber laser cutting. Its workbench capacity is stronger, and it can also meet the needs of pipe cutting, with various cutting styles. It saves costs and is cost-effective.

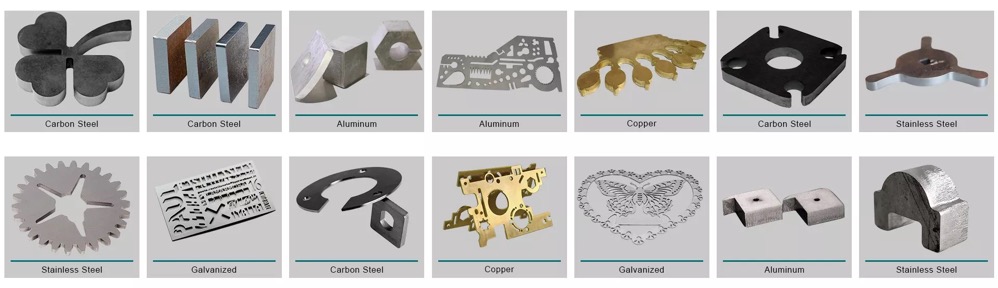

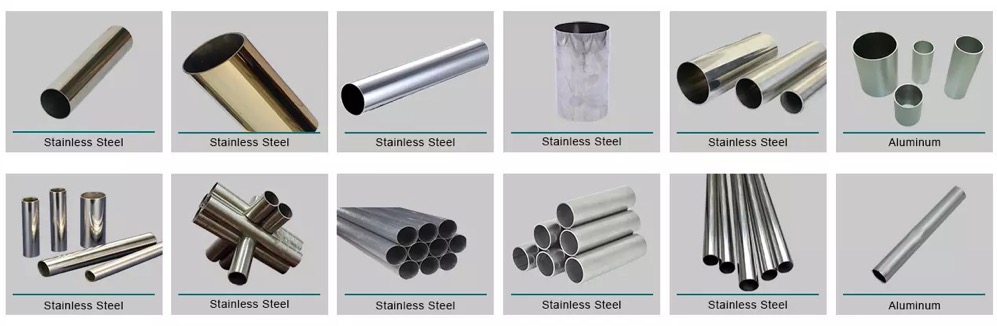

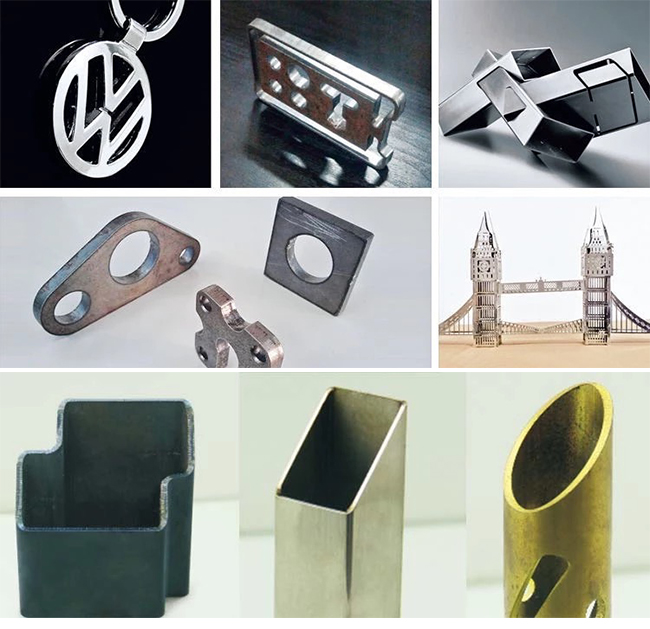

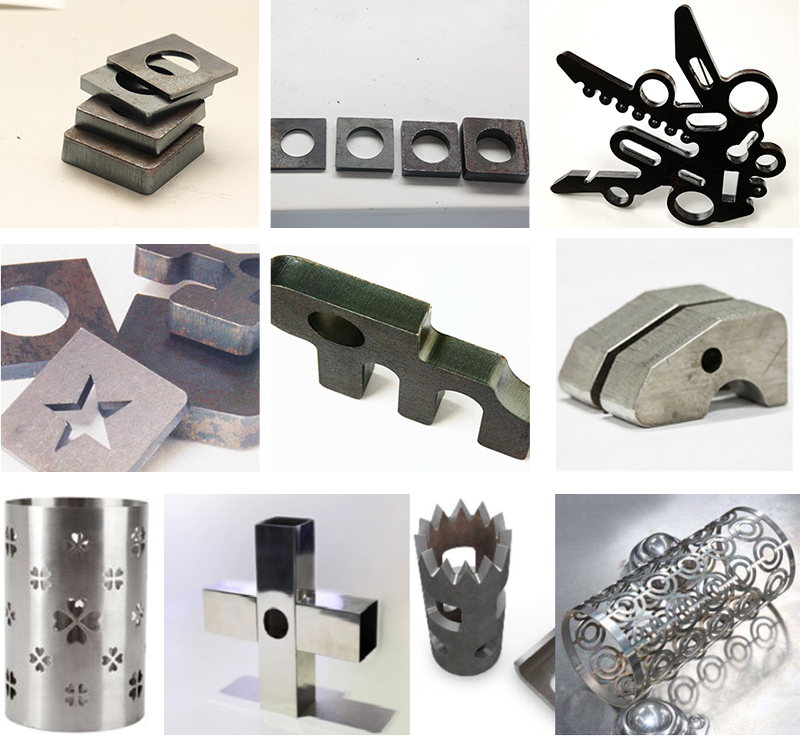

2. Material application: stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver and other metal plate cutting
3. Processing method: pipe and plate cutting.

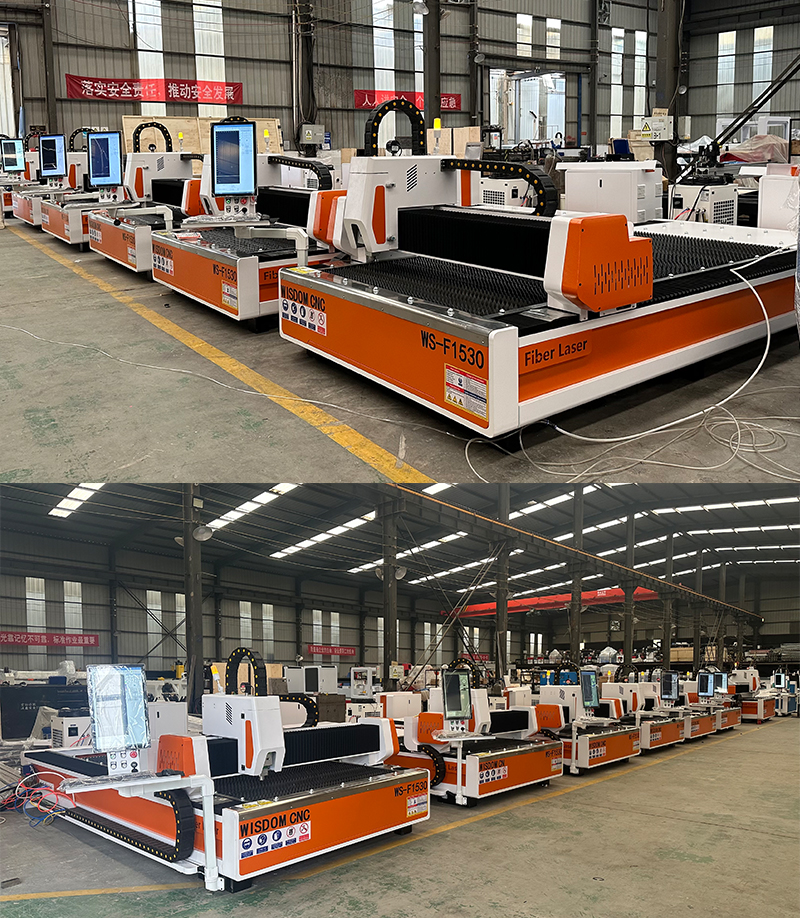

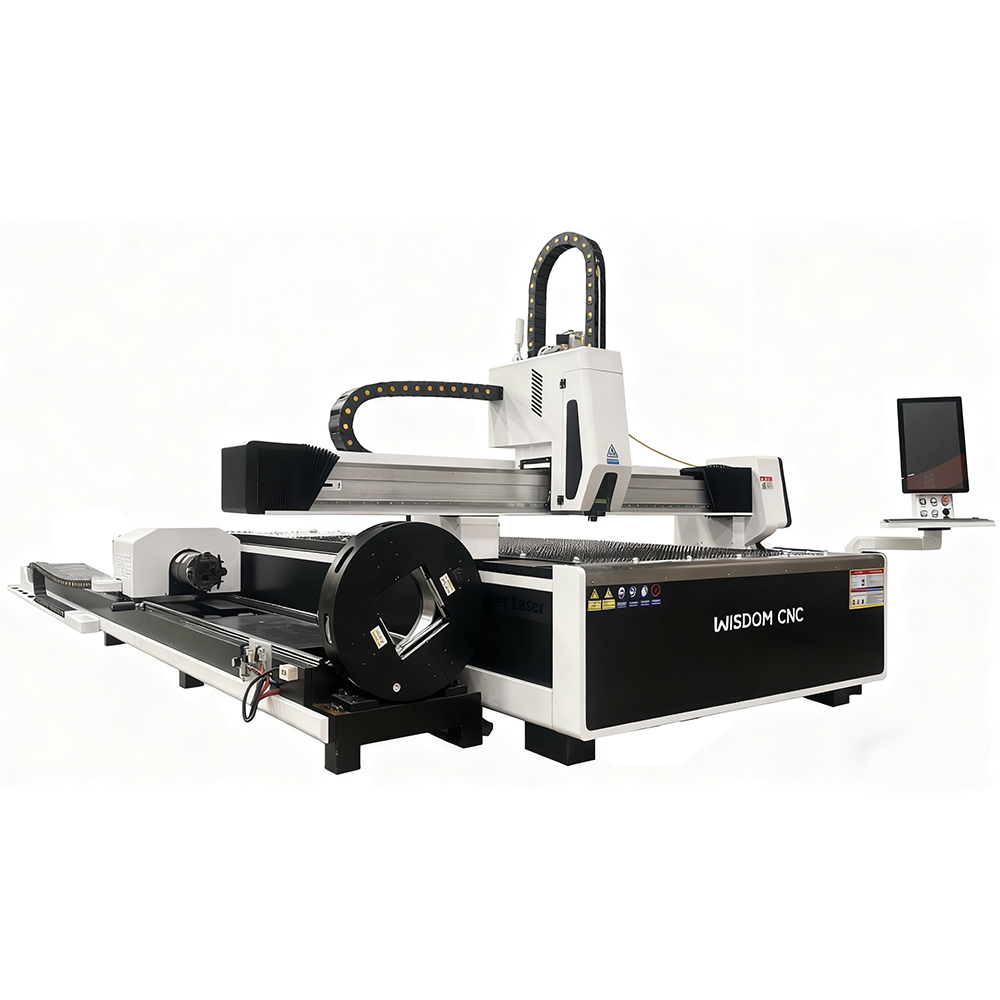

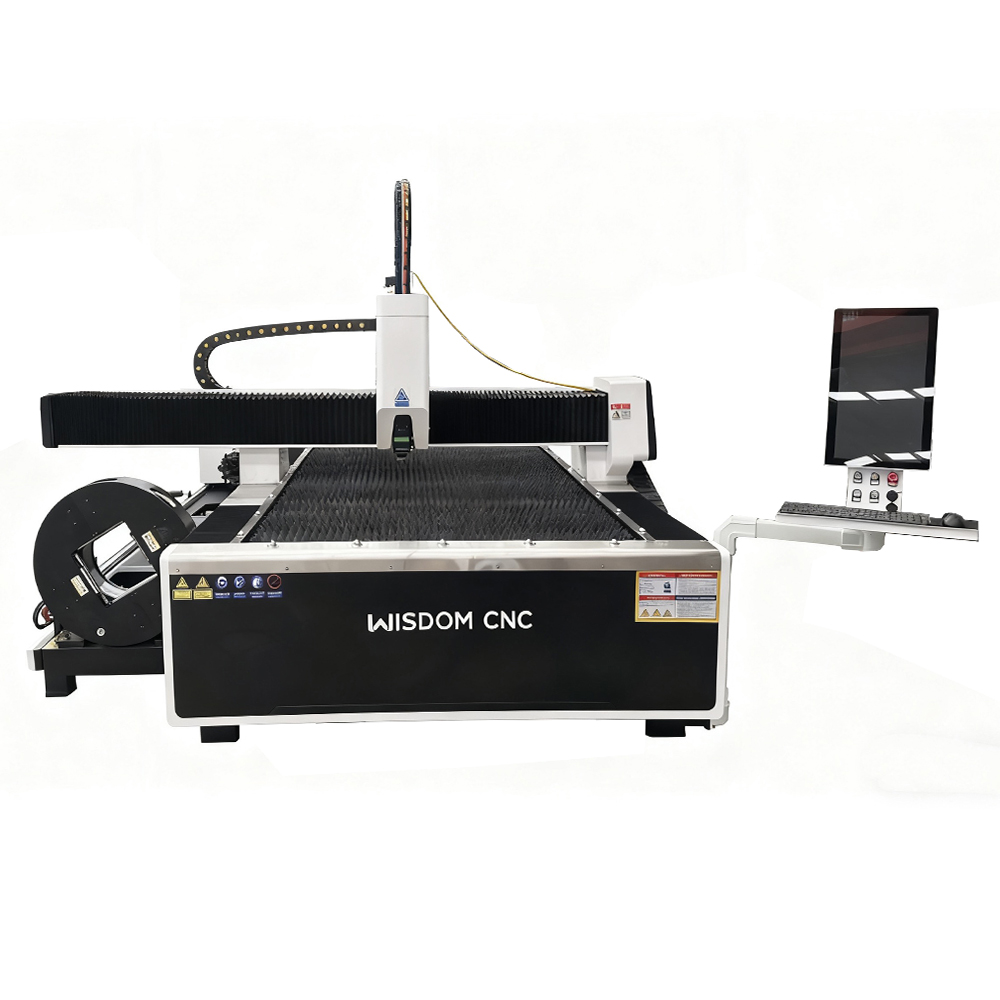

Machine model | WS-F1530 |
Cutting range | 1500*3000mm |
Rotary chuck | Pneumatic |
Tube length | 6000mm |
Positioning accuracy | 0.03mm |
Driving system | Servo motor and drivers (850W /1.3KW /1.8KW) |
Reducer | Japan Shimpo |
Rotary diameter | Max diameter 20-240mm, length 6000mm |
Cooling system | Water chiller |
Support software | DXF , PLT ,AI , LXD , Gerber ,NC , G. code |
Reposition accuracy | 0.02mm |
| ◀ Raytools laser head |

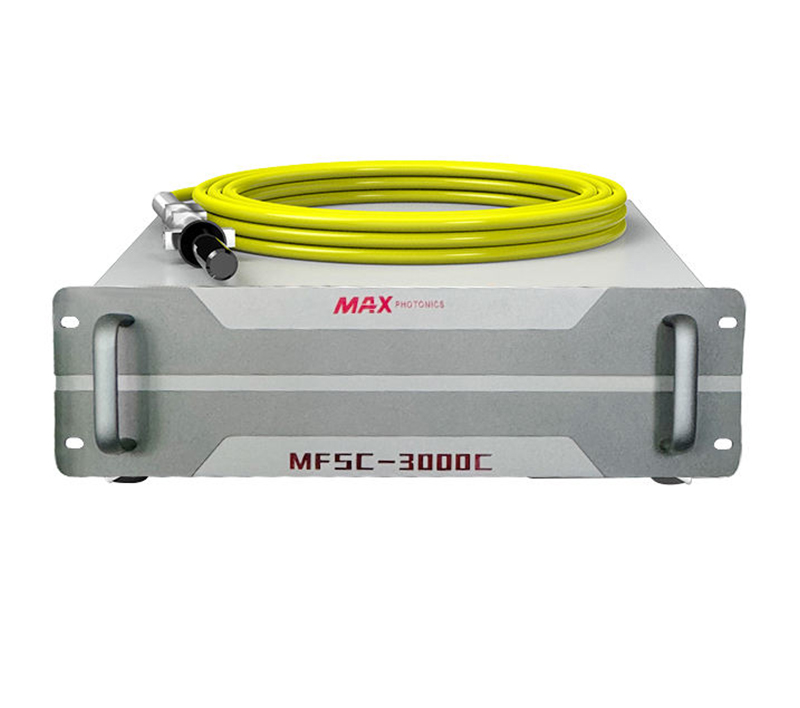

Fiber laser source ▶ 100,000 hours life time, more stable, cost-efficient, free maintenance. |
|

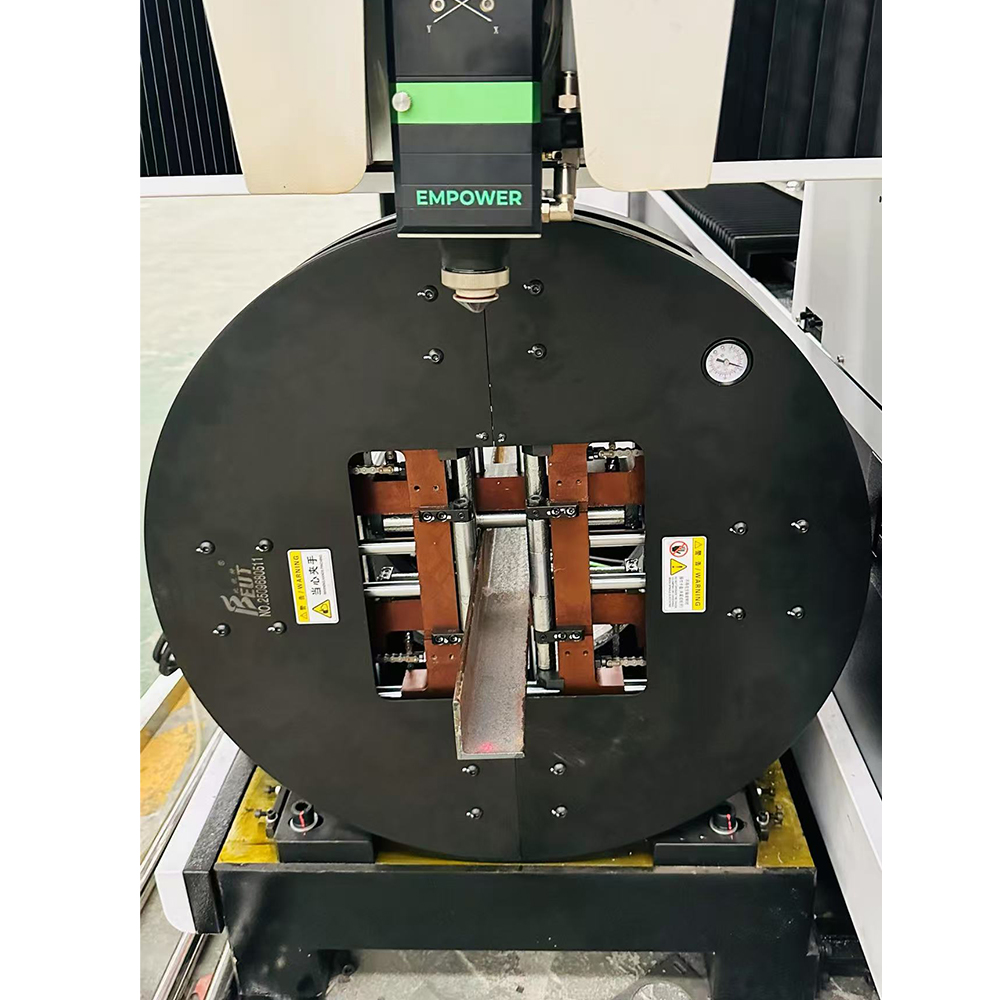

 | ◀Front pneumatic chuck This product is suitable for clamping various pipe fittings and parts in professional pipe cutting machines, pipe plate integrated machines, etc. It is suitable for cutting and processing various types of round pipes, square pipes, rectangular pipes, and elliptical pipes. With slight modification of the claw, it can cut pipes of various shapes |

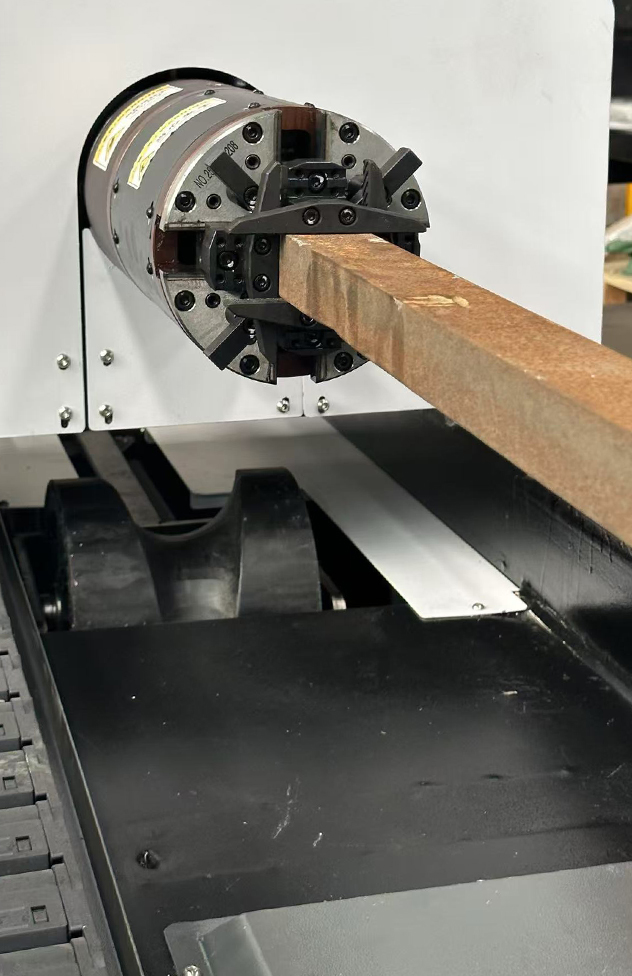

Four-jaw feeding chuck▶ This product has a strong clamping force and stable clamping; Easy adjustment and high efficiency; The stiffness is higher than that of a long claw, and the accuracy can be maintained for a long time; The chuck has a simple structure, light weight, small moment of inertia, and low energy consumption. |  |

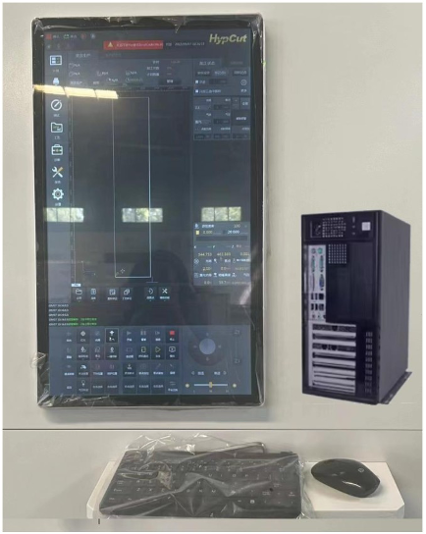

| ◀Computer control A new generation of computer host +22 "vertical screen display + high quality keyboard and mouse. |

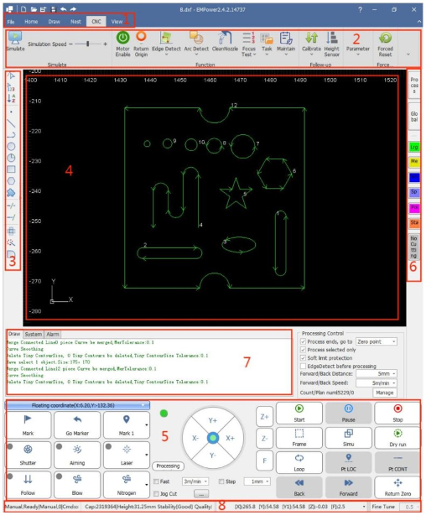

Programming software▶ It is designed for tube cutting control, support standard tube(retangle, circle, oval, ellipse and obround etc.) , free form , and steel channels(T/U/H/L shape) production of high precision and efficiency. |
|

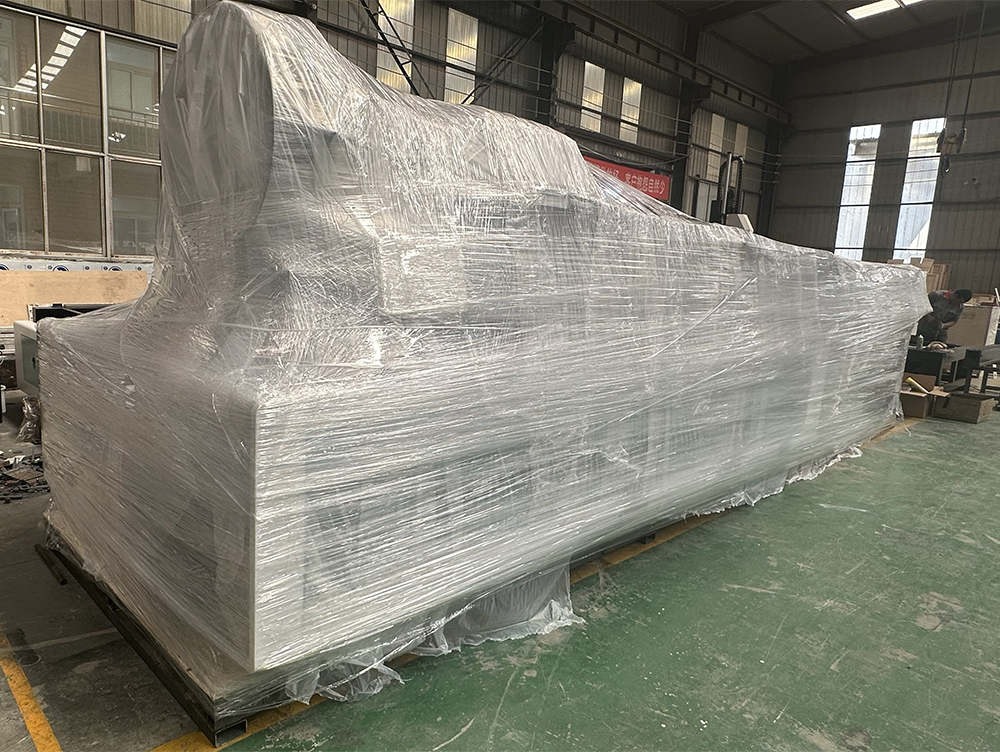

Packing
