WS-1325
1300X2500mm
Stepper
RD6445G
Blade
Product Description

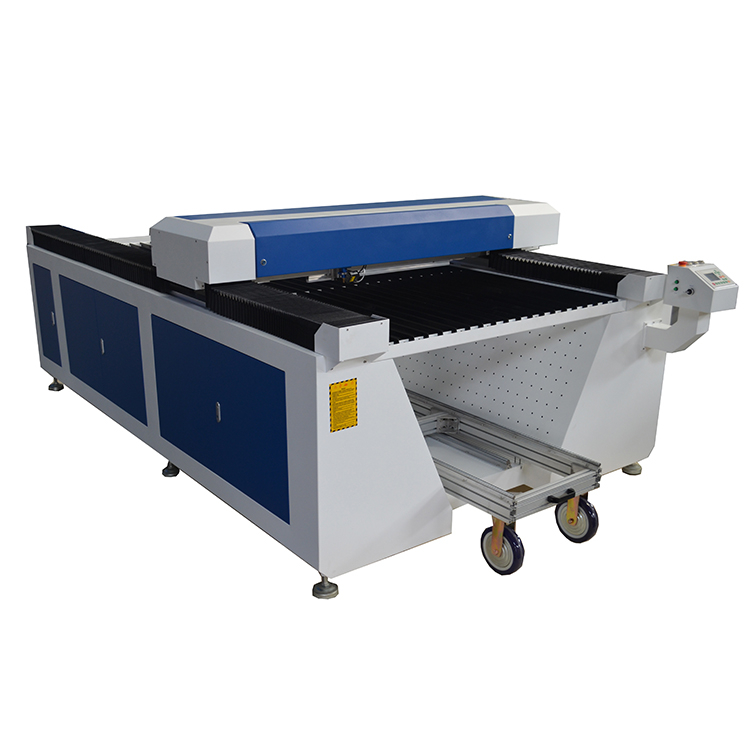

WS-1325 Plywood Die board Laser Cutting Machine 280w 300w
Technical specifications:
| Machine model: | WS-1325 Plywood Dieboard Laser Cutting Machine |
| Working area | 1300*2500mm |
| laser type | Sealed CO2 glass laser tube, wavelength 10.6um |
| laser power | 180W/280W/300W |
| Cooling mode | Pure circulating water cooling |
| Control system | DSP offline control system, laser power software 0-100% adjustable |
| Max. engraving speed | 0-60000mm/min |
| Max cutting speed | 0-30000mm/min |
| Repetition accuracy | ≤±0.01mm |
| Min. letter | Chinese: 2.0*2.0mm; English: 1.0*1.0mm |
| Working voltage | 110V/220V, 50Hz~60Hz |
| Working condition | Temperature: 0-45℃, humidity: 5%-95% (No condensation) |
| File formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, support AutoCAD, CoreDraw software |
Plywood Die board Laser Cutting Machine 280w 300w Features:
1). Special function follow-moving laser head for non-metal, higher precision when cutting die board.
2). Leadshine brand stepper motor and drivers transmission,no need feedback signal to control with high precision.
3). Interior LED Work area light to help see products during laser processing.

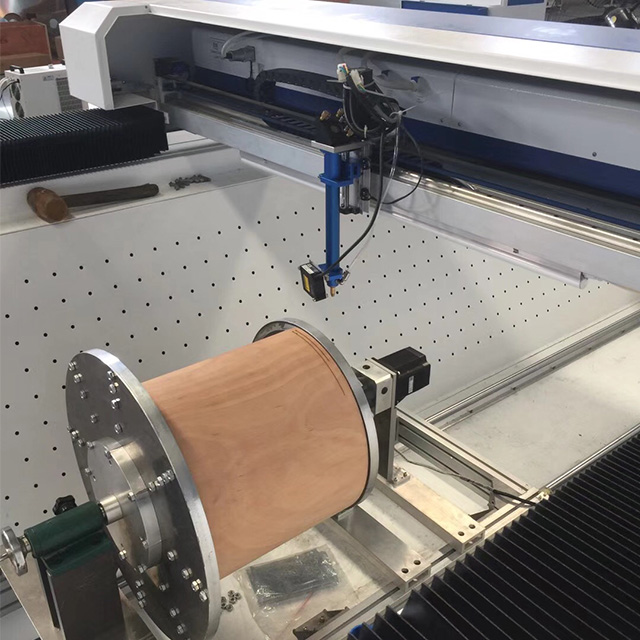

4). Dual workable to put rotary attachment and T-blade table, used for cutting both round dieboard and flat materials.

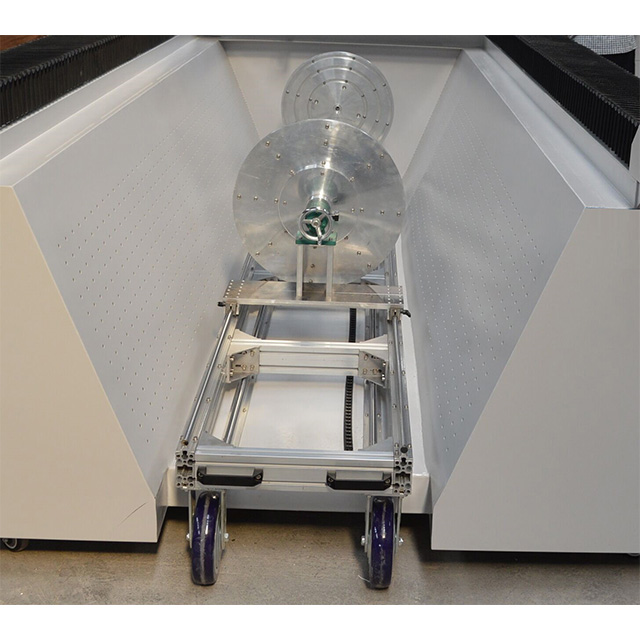

5). Heavy rotary attachment is equipped with wheels, easy to move conveniently.
6). Red-Dot pointer to help you see the expected laser beam position.
7). Advanced water chiller for cooling laser tube, adjust temperature automatically. Besides, it has the function that protect the laser tube from damaging caused by any incidents.
8). DSP control system with USB interface, no need to connect with computer when working.
9). Imported lens and mirrors from America with good reflective effect.
10). With double channel exhaust fans for clean the cutting chippings.
11). Taiwan PMI square linear guide rail installed on X Y axis, make sure the works stably and precisely.

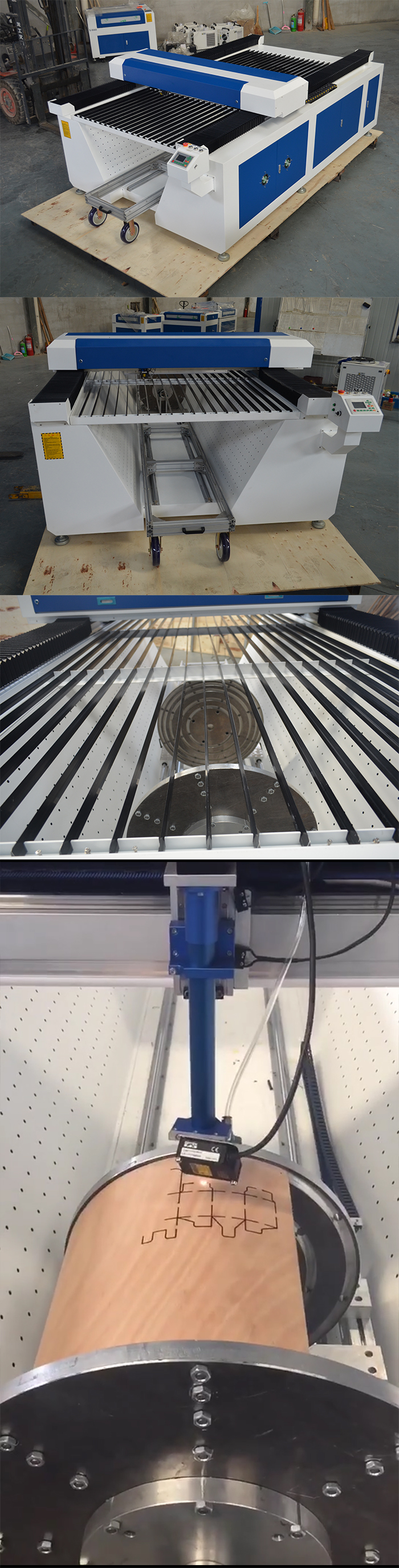

Plywood Die board Laser Cutting Machine details

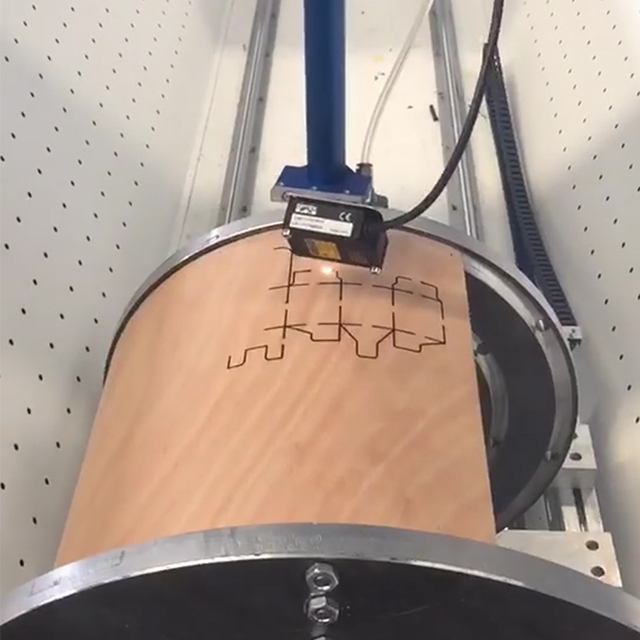

Plywood Die board Laser Cutting Machine 300w Samples
After-Sales Service:
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24/7 on-line receiving your question or requesting.
* Providing solution within 12 hours.
2-YEAR WARRANTY, LIFETIME MAINTENANCE
1.Two-year warranty for the machine, except for consumables.
2.Laser tube warranty:
- CO2 100W, 130W, 150W, 180W tubes: 10 months;
- CO2 280W, 300W tubes: 12 months.
3.Optical lens and mirrors are not within warranty scope.
