WISDOM CNC Plasma and Flame Cutting Machine

You are here: Home » Plasma Cutting Machine » Metal Sheet Plasma Cutting Machine » WISDOM CNC Plasma and Flame Cutting Machine

Control System	Starfire
Driving System	Stepper motor and drivers
Power Supplier	American Hypertherm or China Huayuan
Oil lubrication	Automatic
Transmission system	HIWIN square guide rail and rack pinon
THC( torch height controller )	Automatic
Plasma Torch	One set
Flame Torch	One cut
Nesting Software	FASTCAM
Packing	Wooden case

Model	WS-P1530
Working Voltage	AC 220V/380V, 50HZ/60HZ
Working Size	1500mm*3000mm
Cutting Speed	0-12000mm/min
Plasma Cutting Thickness	0-30mm
Flame Cutting Thickness	20-200mm
Power source	LGK63A /100A /120A /160A /200A China Huayuan Powermax 45A /85A /105A /125A /200A US Hypertherm
Working position accuracy	±0.1mm
File output mode	USB interface
Command Code	G code/.MMG/.PLT/*.eng

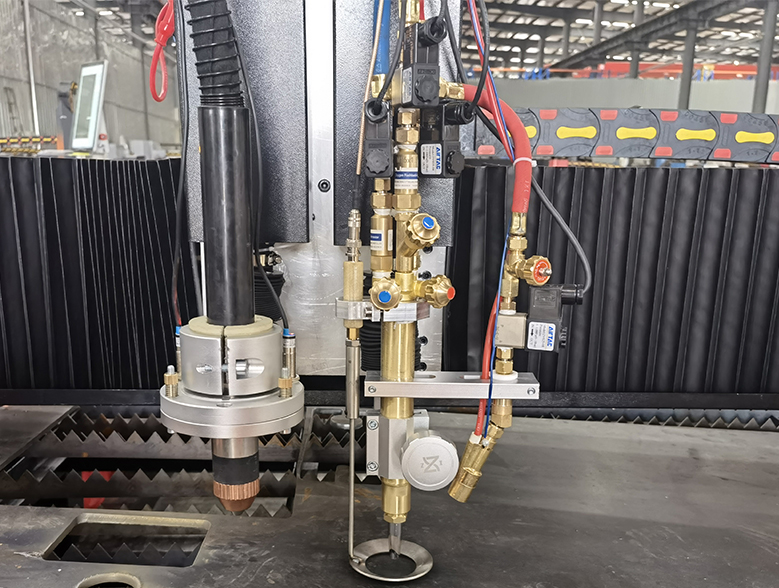

	◀ Plasma and Flame Cutting Head Used for different application and different cutting usage
Advanced Starfire controller ▶ It support different languages such as Chinese /English /RUSSIAN /Spainsh /French /Czech /Janpanese /Slovakian etc. Functional, intelligent and easy to operate.

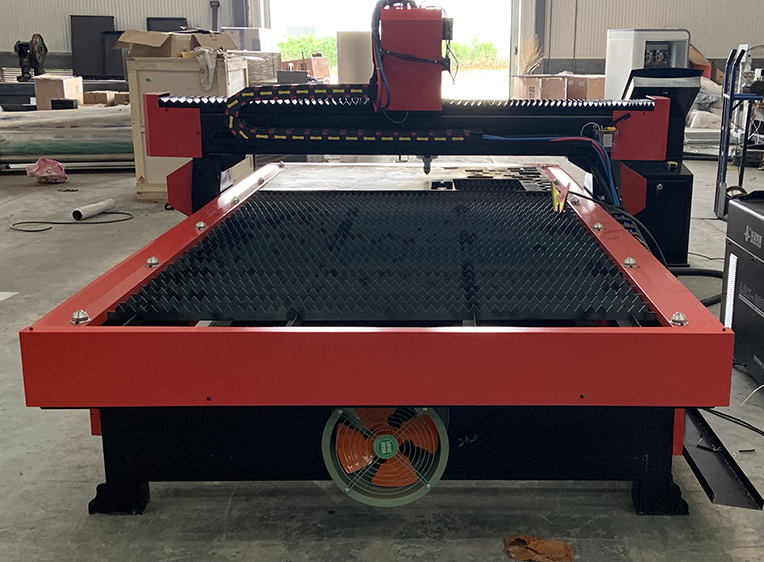

	◀Sawtooth working table and exhaust fan
China LGK 200A plasma source▶ Powerful and high cutting efficiency.

Plasma Source	Power	Suggested cutting thickness	Stainless steel
China brand HUAYUAN	LGK 63A	6mm	3mm
	LGK 100A	12mm	6mm
	LGK 120A	15mm	8mm
	LGK 160A	20mm	10mm
	LGK 200A	25mm	12mm
US brand Hypertherm	Powermax 45A	6mm	3mm
	Powermax 65A	10mm	5mm
	Powermax 85A	12mm	6mm
	Powermax 105A	15mm	8mm
	Powermax 125A	20mm	10mm
	Powermax 200A	30mm	15mm
