Product Description

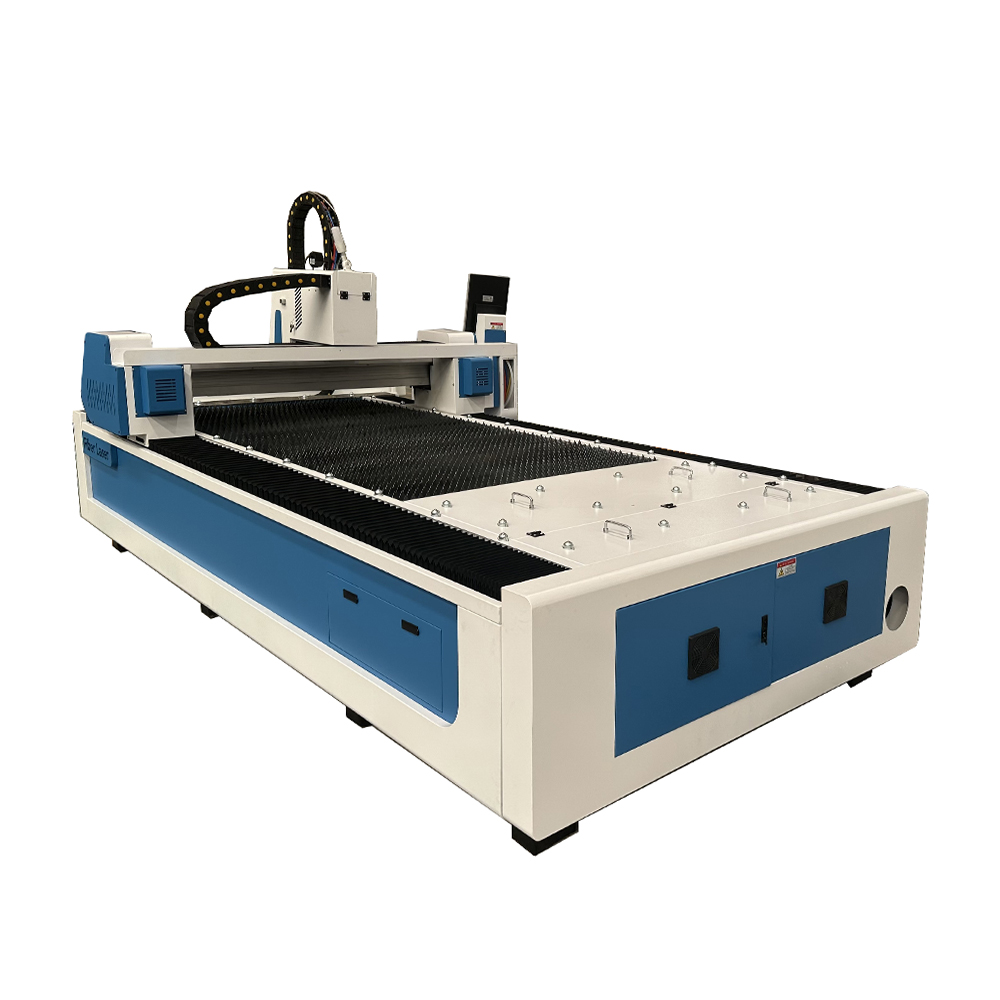

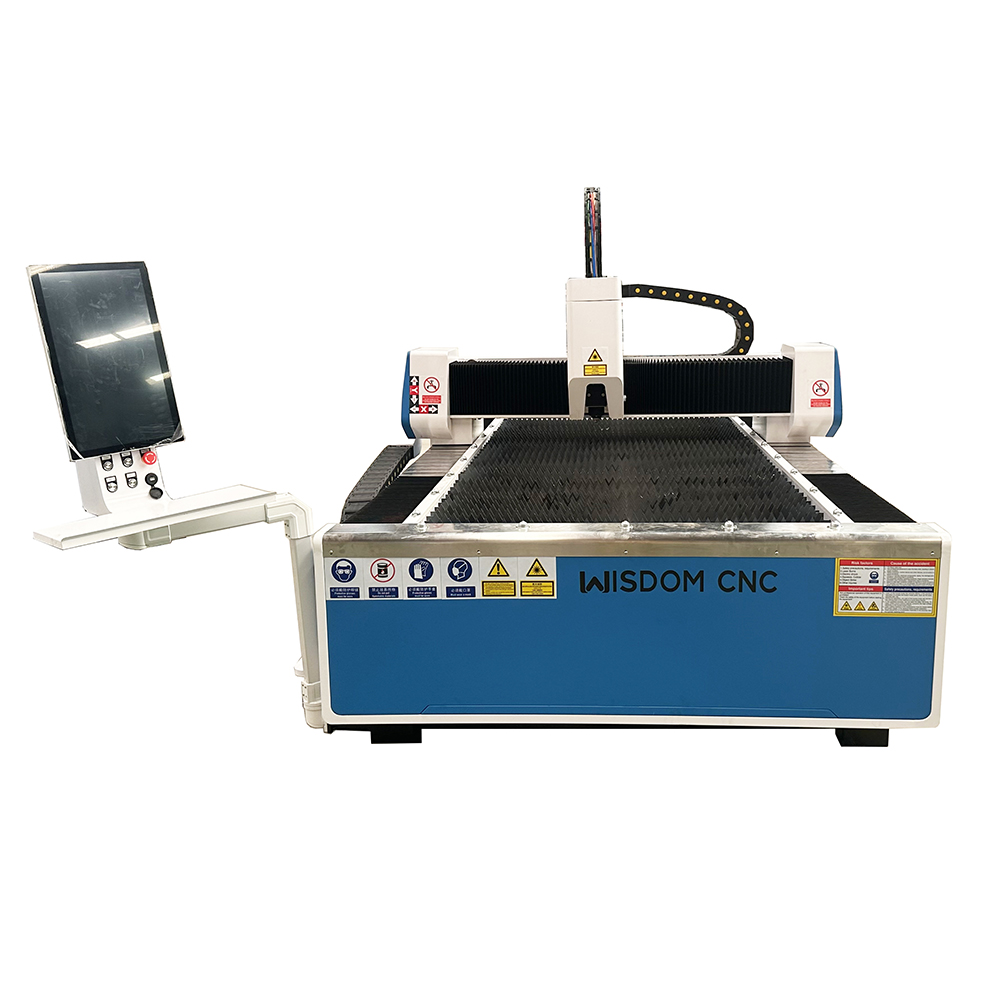

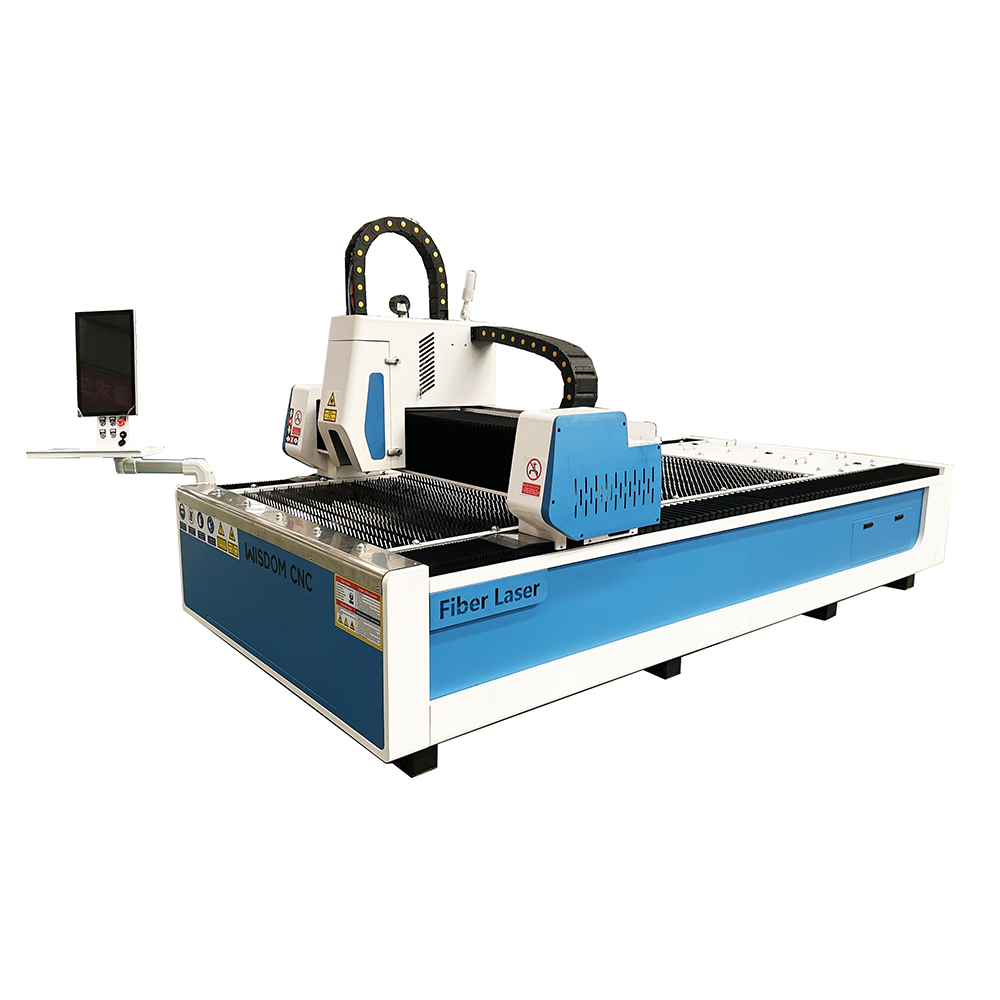

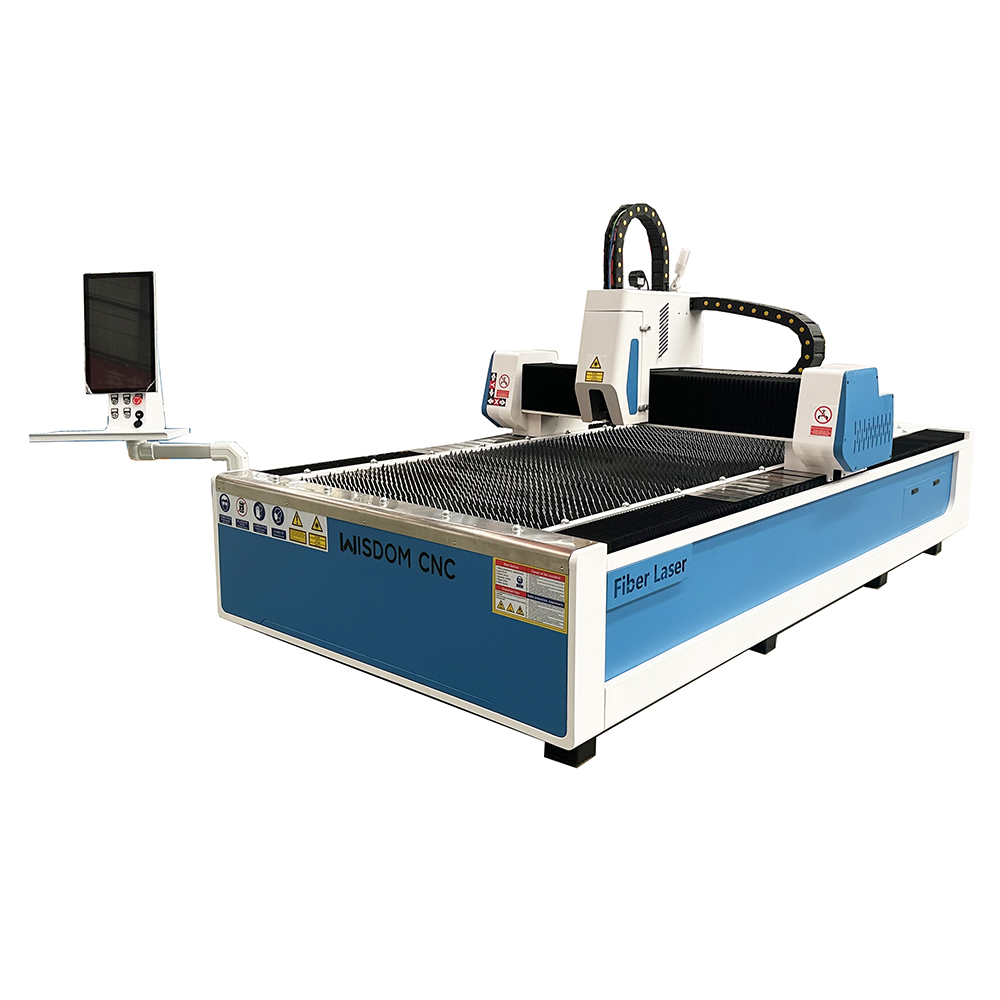

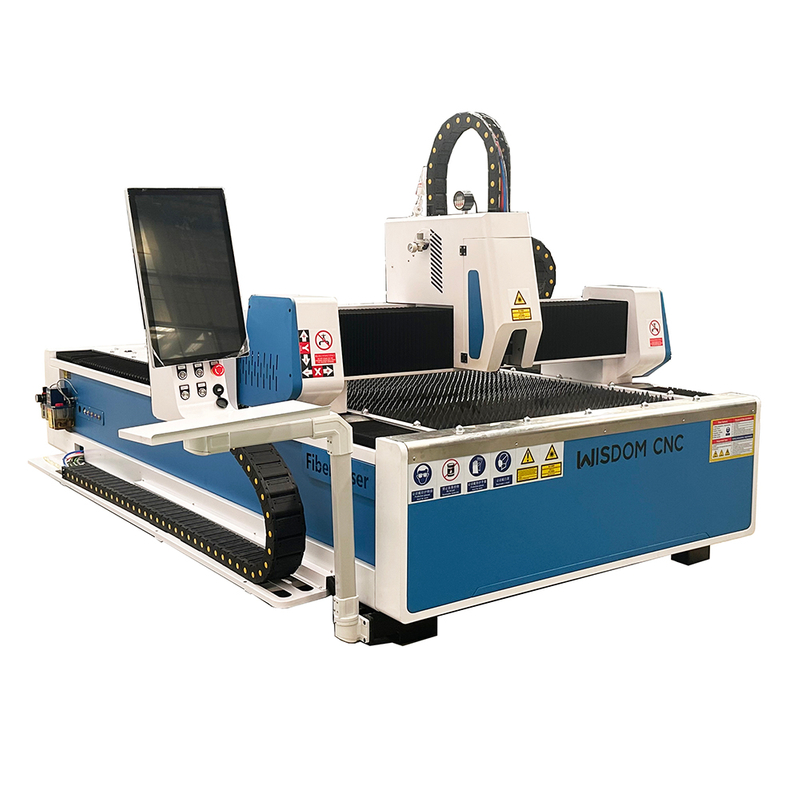

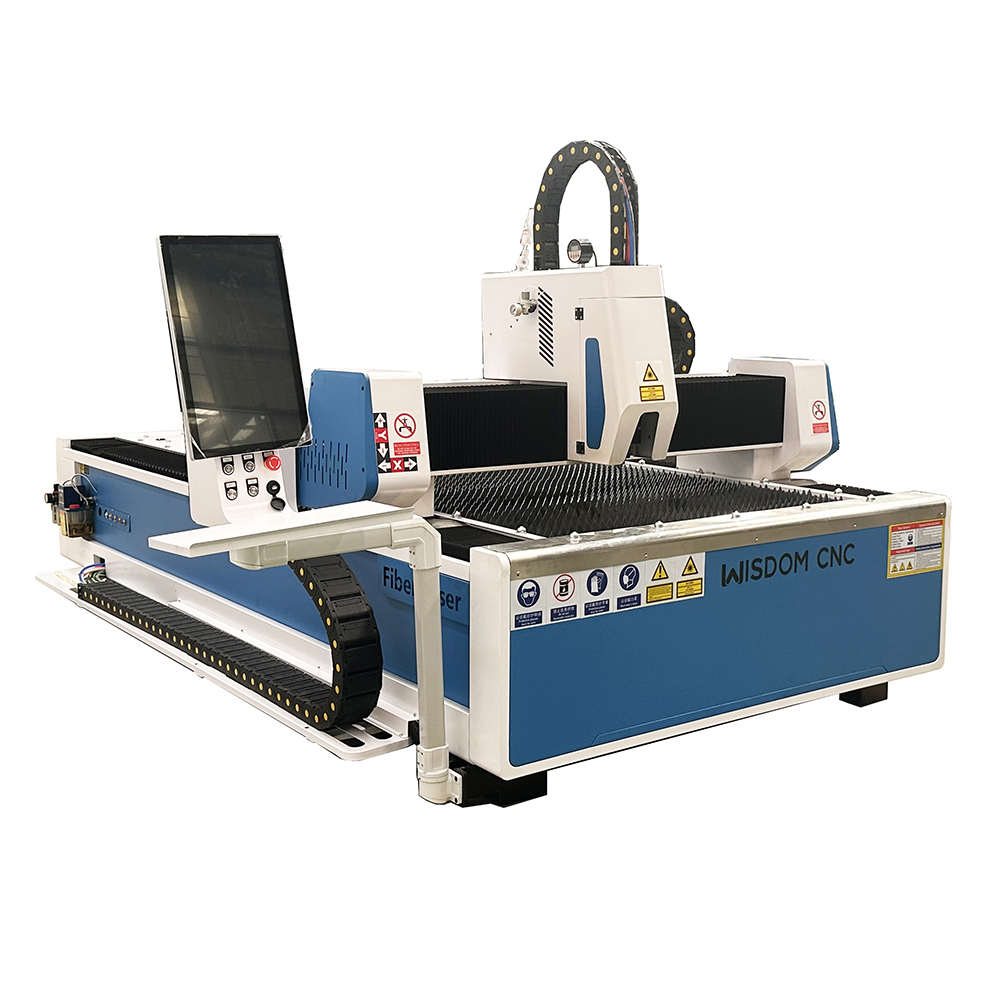

Fiber Laser Cutting Machine is also called as fiber laser cutter or metal laser cutter, which is a kind of CNC laser metal cutting equipment with high quality, high speed, high precision and high efficiency. Affordable Fiber Laser Cutting Machine is suitable for all kinds of metal cutting, which will be your good metal working partner. The best fiber laser cutting machines are equipped with different laser powers (1500W,3000W, 6000W popular) for cutting metal sheets and plates, including stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials with different thickness.

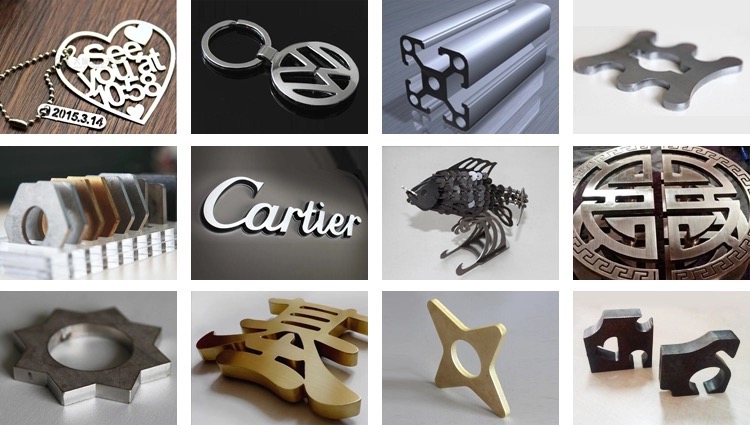

Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
1 | WS-F1530 | 1500*3000mm | 1 set |
2 | 1500W /3000W /6000W | Fiber laser source | 1 set |
3 | Water chiller S&A | Special water chiller for fiber laser generator | 1 set |
4 | Laser head | High accuracy professional fiber Raytools laser head | 1 set |
5 | Control system | Cypcut | 1 set |
6 | Driving system | Servo motor and drivers | 4 sets |
7 | Reducer | Japan Shimpo | 3 set |
8 | Electric components | Schneider | 1 set |
9 | Guide rail | From Japan | 1 set |
10 | Rack pinion | YYC | 1 set |
11 | Proportional valve | From Japan | 1 set |
Model | WS-F1530 | ||
Metal Plate Cutting area | 1500*3000mm | Reposition accuracy | ±0.03mm/1000mm |
Laser type | Fiber laser generator | Graphic format supported | CAD. DXF (etc) |
Laser power | 1500w/3000w/6000w | Working environment | Temp:0-40℃, humidity: ≤80%, No condensation |
Transmission system | Gantry double-drive structure | Lubrication system | Full-automatic |
| ◀ Raytools laser head |

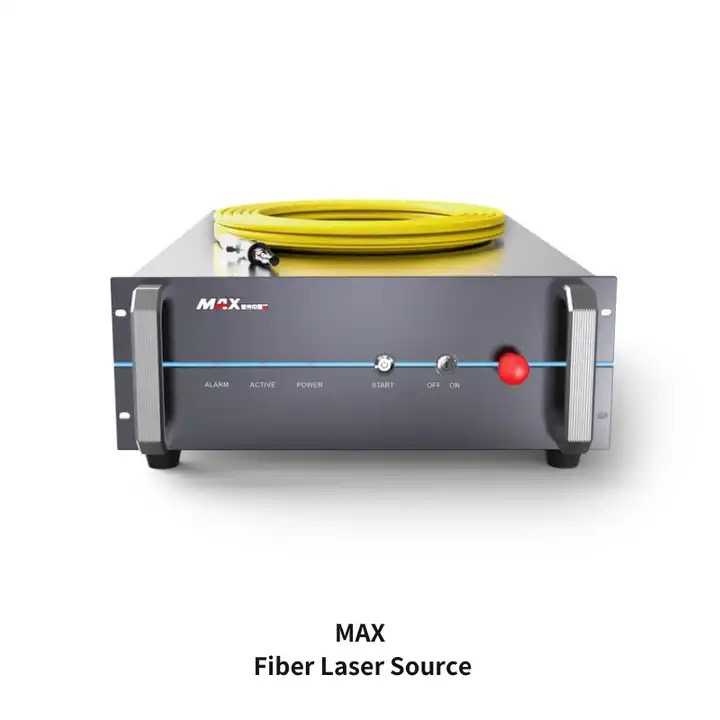

Fiber laser source ▶ Different brand optional (Raycus, MAX, RECI etc). |
|
| ◀Powerful Servo motor driving |

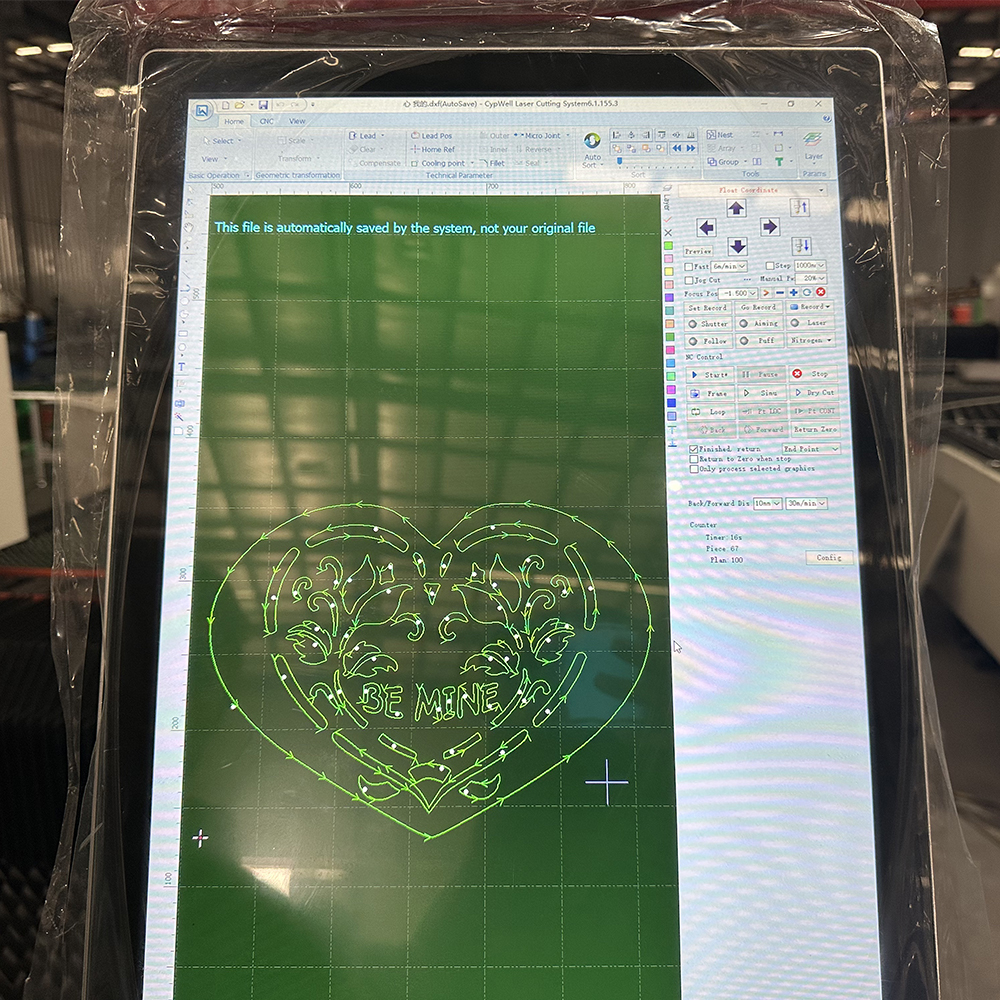

Cypcut control system▶ Advanced technology, suitable for kinds of material cutting. 1.Auto edge seeking function, flying cutting function and nesting function. 2.Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC, GBX etc... 3. More flexible to operate---after finishing making design by drawing software such as Solidworks, CAD, Then operator can put the design into CYPCUT control system for cutting directly and no need any programming, and transfer to code. |
|
For technical specifications and more working videos, please contact with us by email or whatsapp.

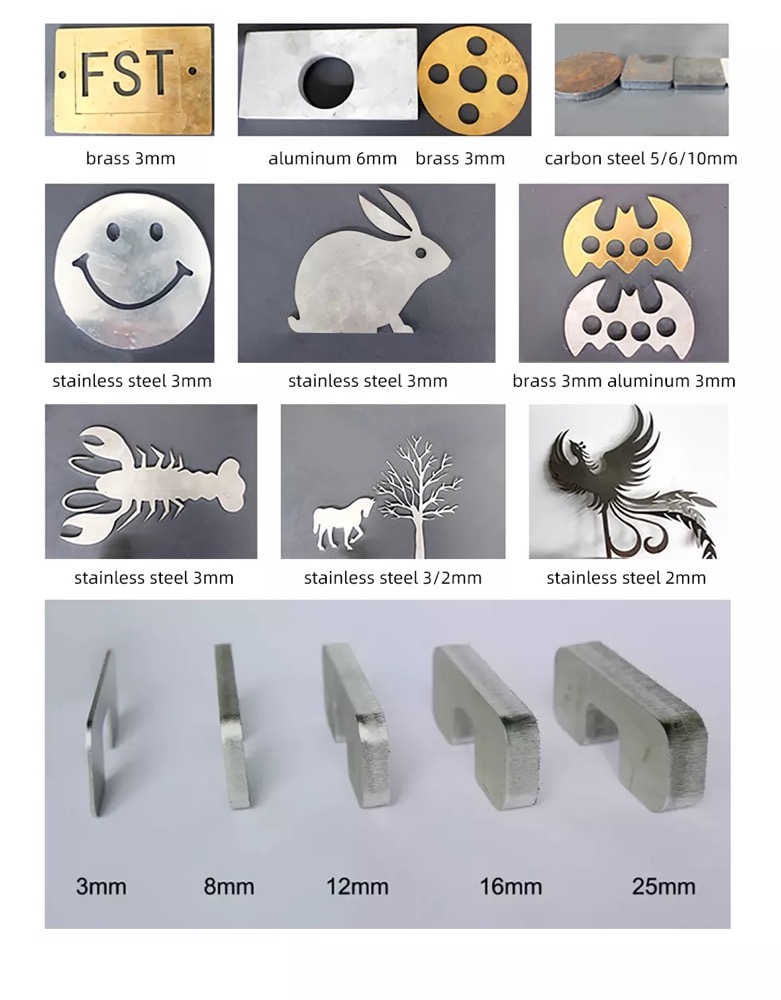

Stainless Steel, Mild Steel, Carbon Steel, Steel, Iron Plate | √ |
Galvanized Sheet, Aluminum, Copper, Brass, Bronze | √ |
Gold Plate, Silver Plate, Titanium Plate | √ |
Material | Thickness (mm) | 1500W | 3000W | 6000W |
Recommend cutting speed | ||||
| 1 | 20 | 30 | 30-45 |
2 | 10 | 18 | 20-25 | |
3 | 4.5 | 6 | 12-14 | |
4 | 3 | 4 | 7-8 | |
5 | 2.5 | 3.5 | 5-6 | |
6 | 2 | 3 | 4.5-5 | |
8 | 1.5 | 2 | 2.2-2.5 | |
10 | 1 | 1.5 | 2.0-2.3 | |
12 | 0.8 | 1.2 | 1.9-2.1 | |
16 | 0.6 | 1 | 1.4-1.7 | |
| 20 | 0.8 | 1.2-1.4 | ||
| 22 | 0.5-0.6 | |||
| 25 | 0.4-0.5 | |||

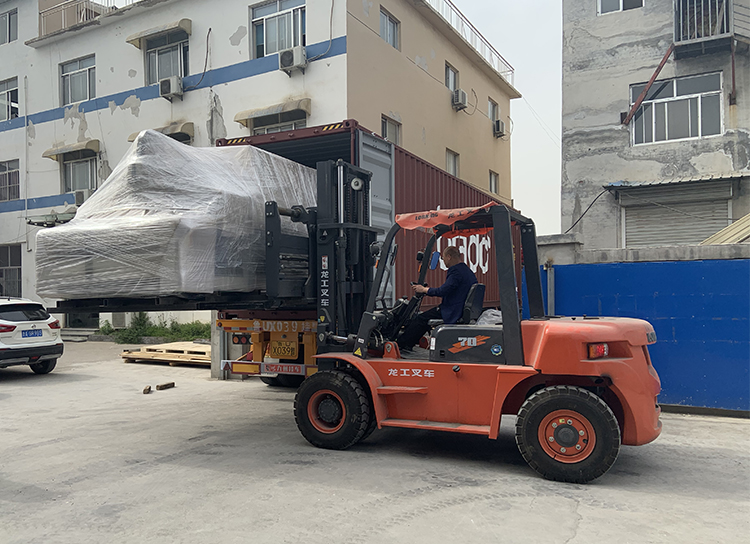

Packing and Delivery
Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.
 |  |
