Product Description

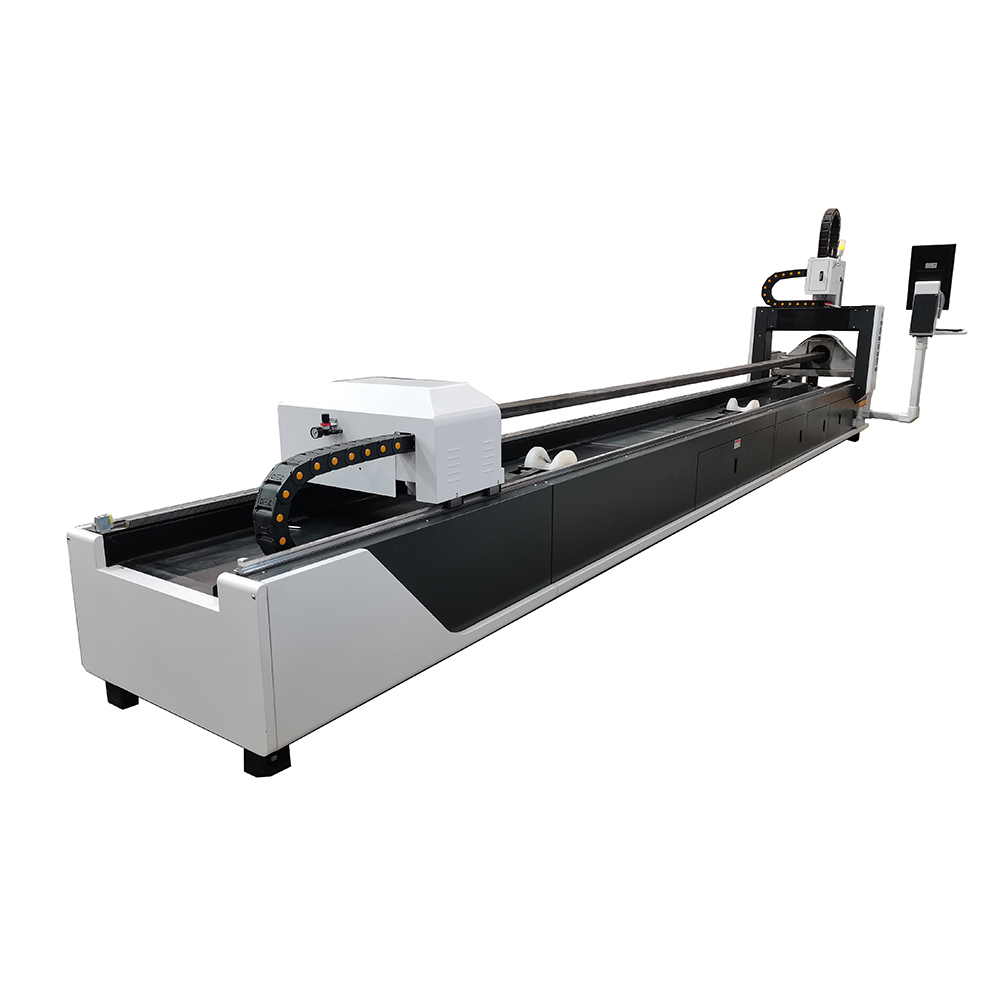

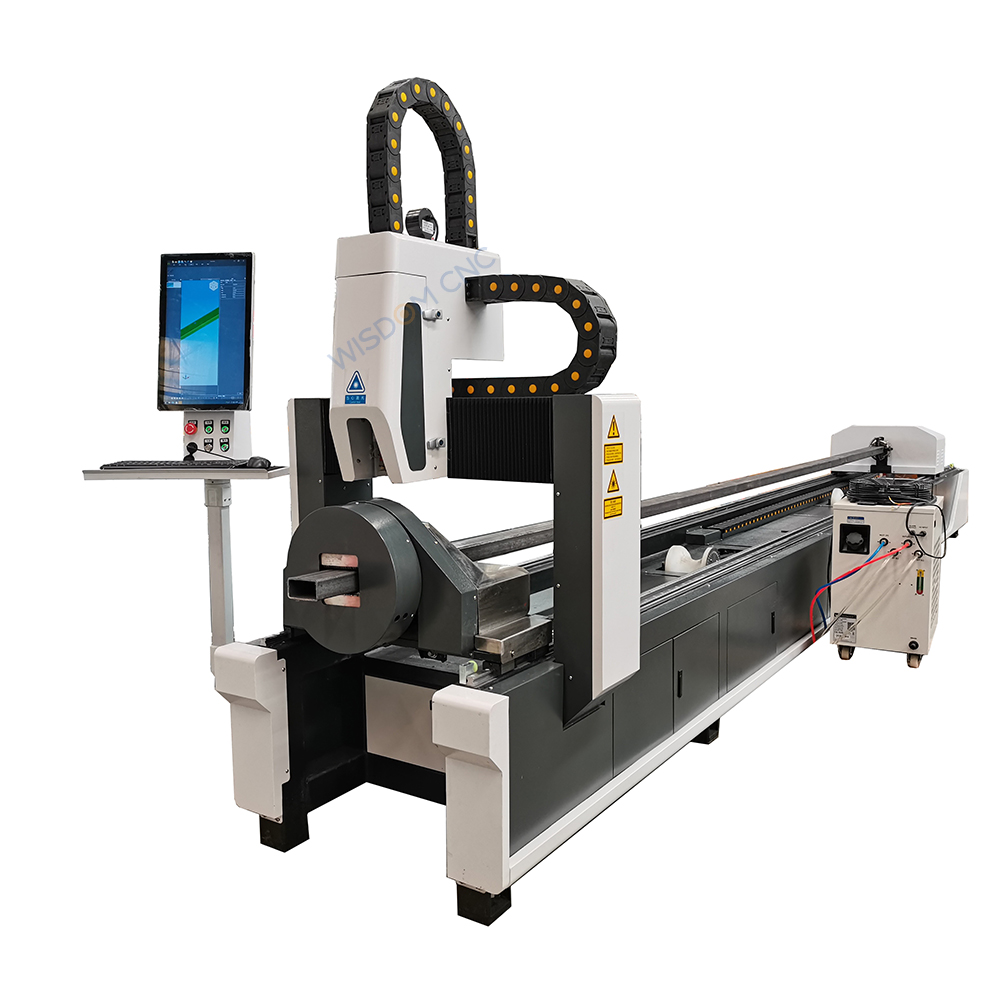

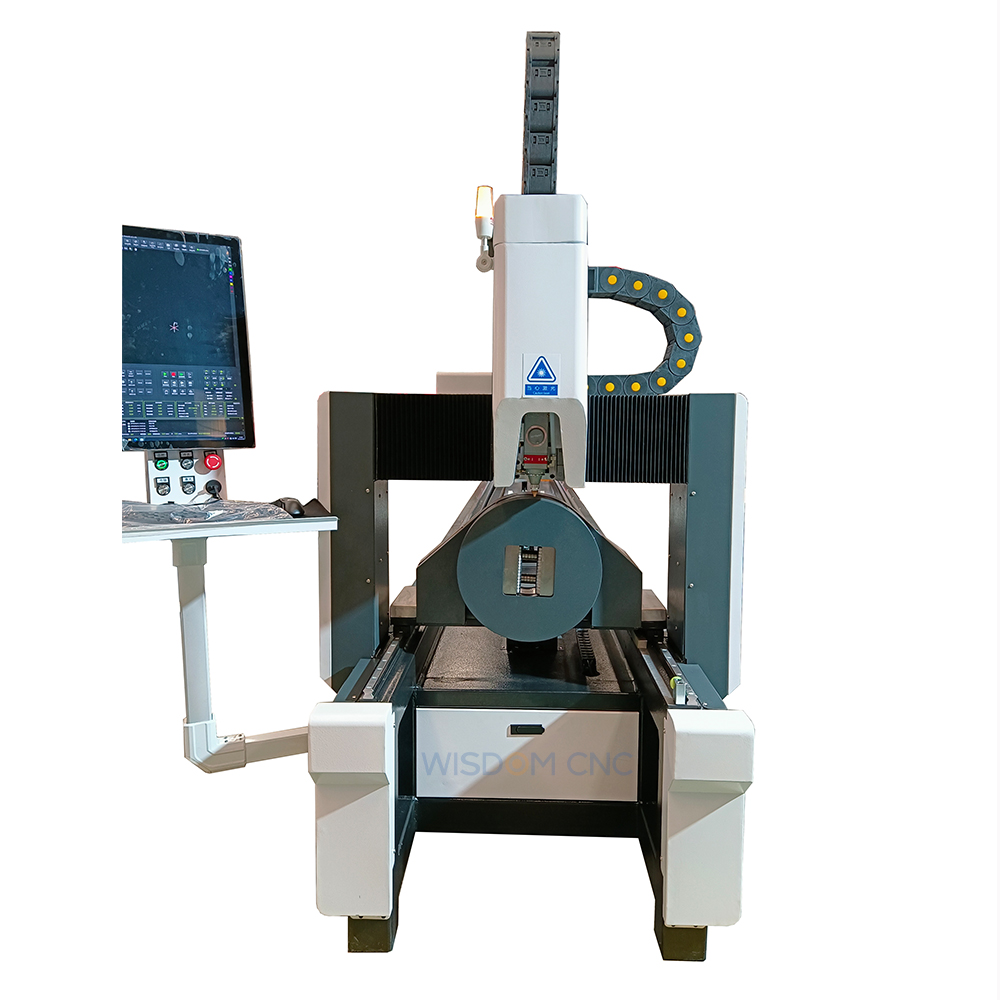

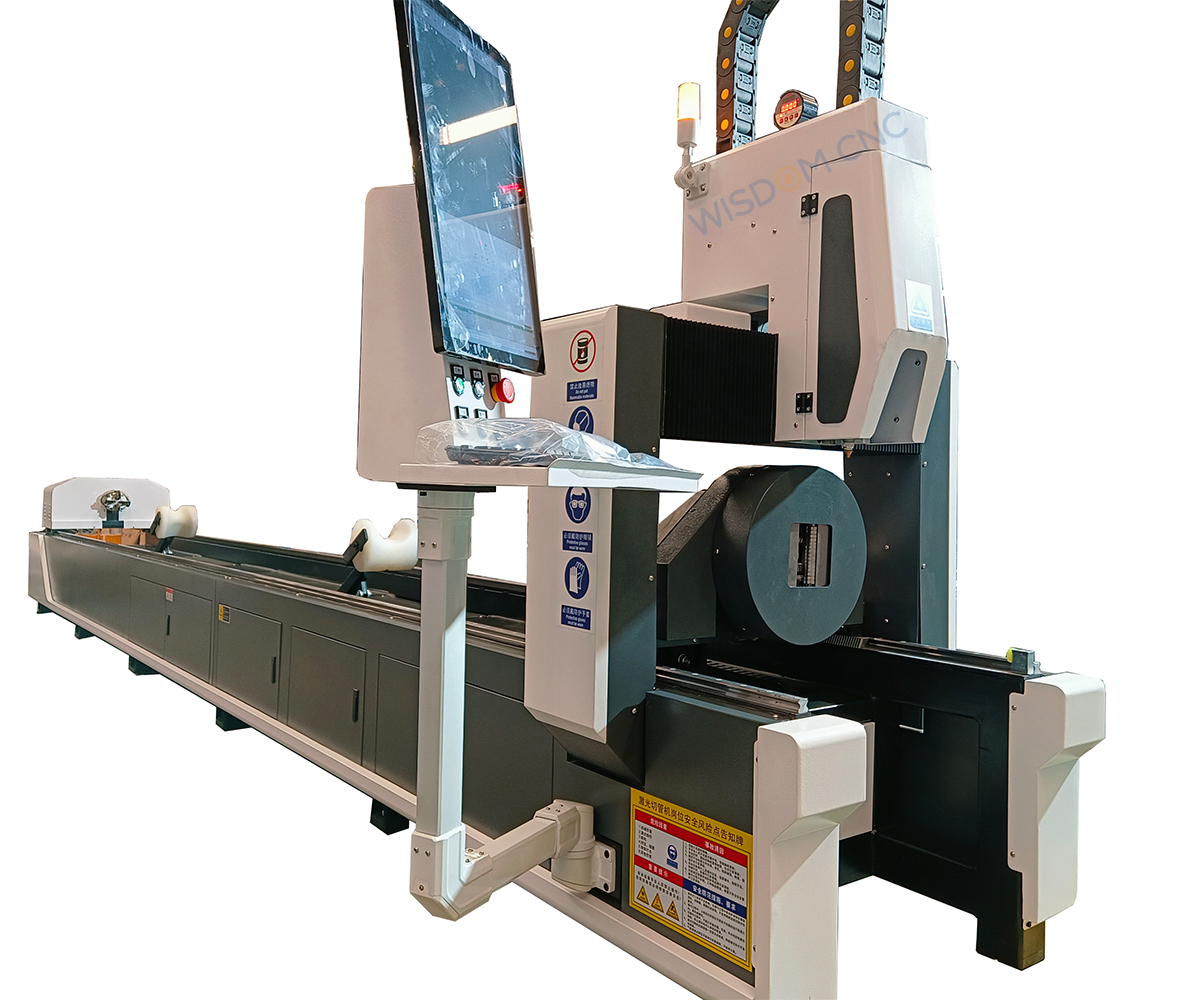

Fiber laser specially cutting middle thick and thin materials such as stainless steel, mild steel/carbon steel, copper, alloy
steel, spring steel, galvanized plate etc.

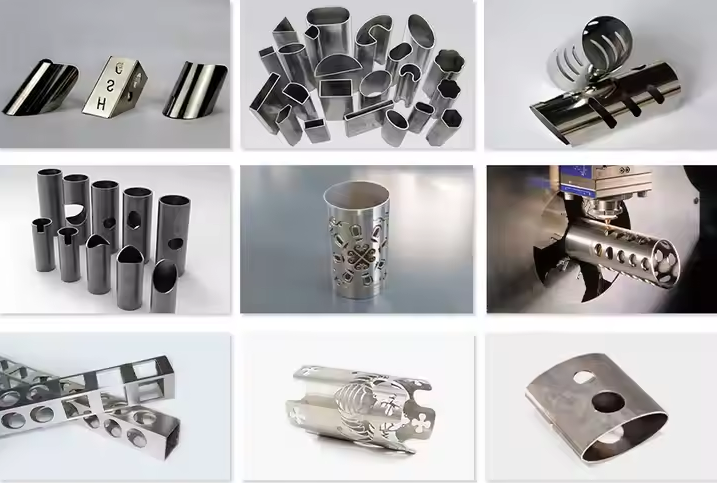

Applicable fields: aviation, aerospace, electronics, appliances, subway accessories, automobile, machinery, precision parts, ships, saw blades, elevators, craft gifts, decoration, advertising, etc.
NO. | Model | Name |
1 | WS-F6000 | Fiber laser cutting machine |
2 | 1500W/2000W/3000W | Laser generator |
3 | Water chiller | Special water chiller for fiber laser generator |
4 | Laser head | High accuracy professional fiber laser head |
5 | Control system | Fangling |
6 | Driving system | High speed servo motor |
7 | Reducer | Japan Shimpo |
9 | Guide rail | Hiwin |
10 | Rack | YYC |
11 | Proportional valve | imported |
12 | Double display screen | Wisdom CNC |
13 | Spare parts | Protective lens, nozzles |
| Max Fiber Laser Source Stable efficiency, high performance, lower maintenance |

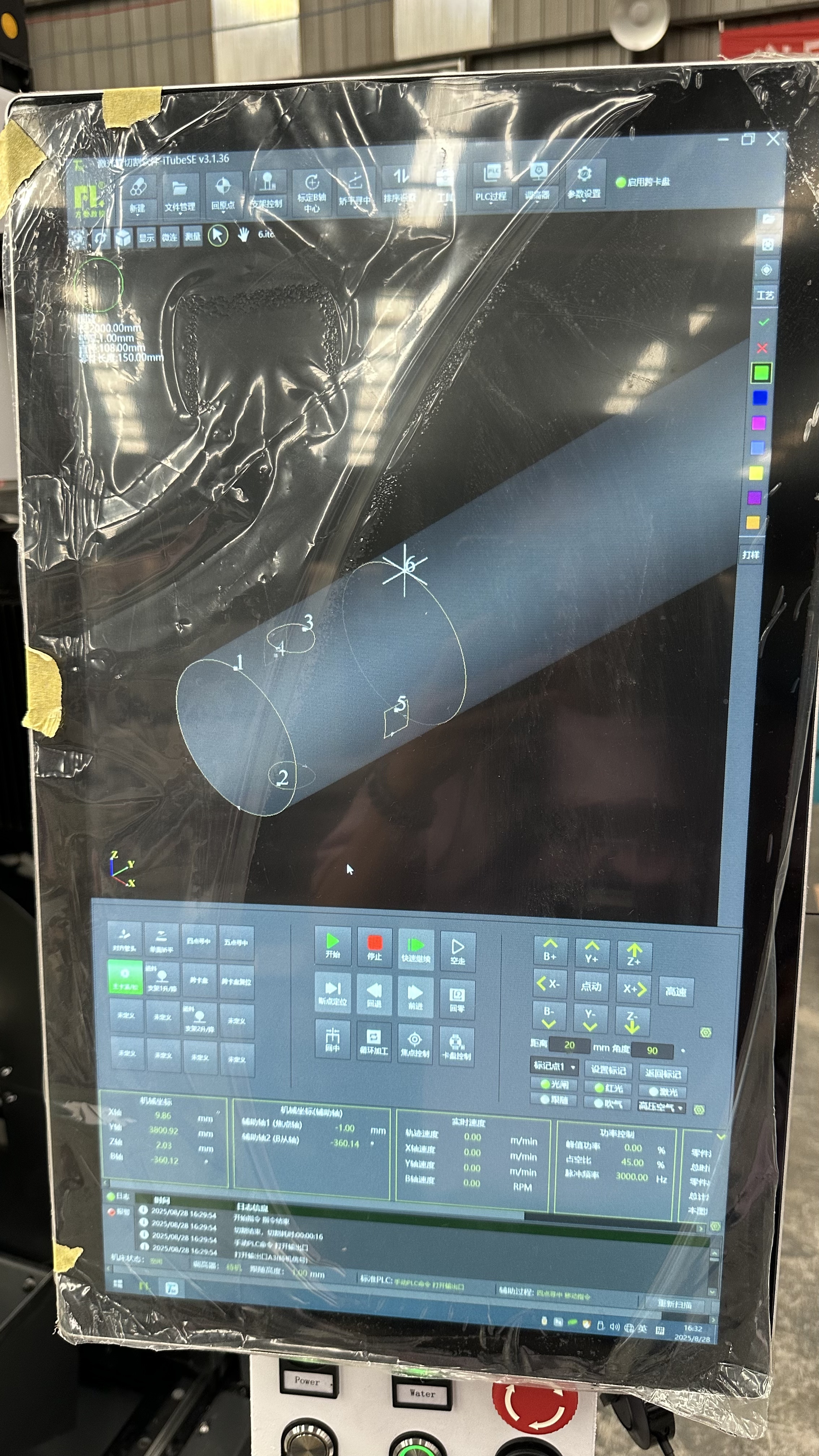

| Fangling control system
The L6000 series CNC laser tube cutting control system is a high-performance laser tube cutting motion control system independently developed and produced by Shanghai FANGLING CNC technology. Support square tube, round tube, waist round tube, elliptical tube, angle steel, channel steel, flat steel, I-beam, and other irregular pipes.
|

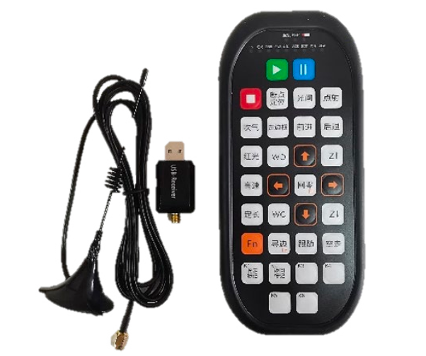

| Handle remote controller
The laser cutting machine remote control is a device used to control the laser cutting machine, which has multiple functions, including on/off, mode switching, parameter setting, controlling XY translation and Z-axis lifting, etc.
|
| Raytools laser head Equipped with a built-in motor drive unit, which drives the focusing mirror to automatically change position within a range of 24mm through a linear mechanism. Users can set continuous focusing through a program to complete rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. |

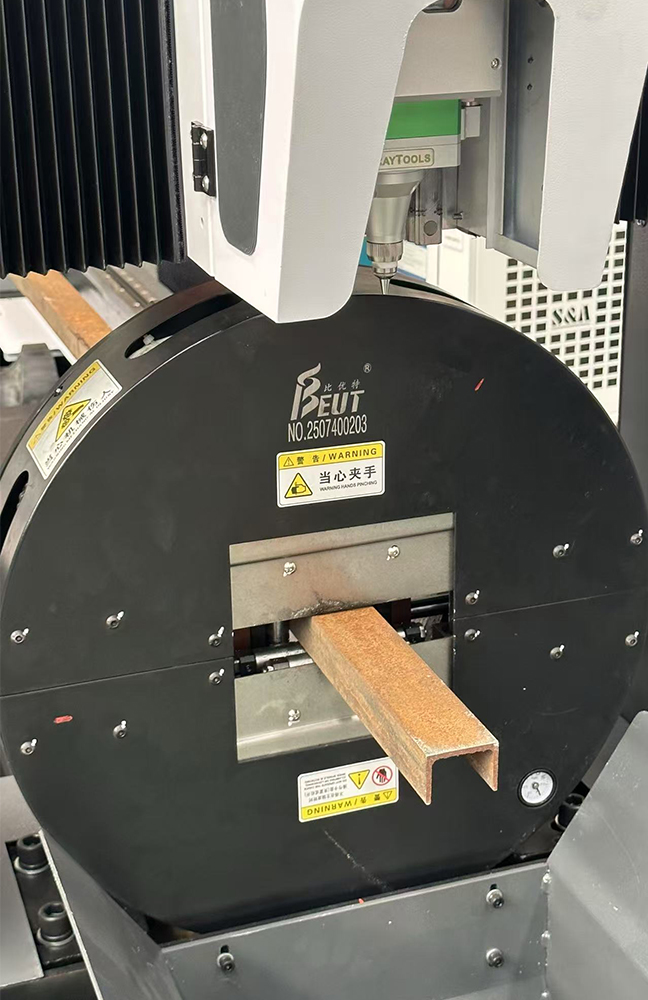

| Front rotary chuck This product is suitable for clamping various pipe fittings and parts in professional pipe cutting machines, pipe plate integrated machines, etc. It is suitable for cutting and processing various types of round pipes, square pipes, rectangular pipes, and elliptical pipes. With slight modification of the claw, it can cut pipes of various shapes
|
| Four-jaw feeding chuck
This product has a strong clamping force and stable clamping; Easy adjustment and high efficiency; The stiffness is higher than that of a long claw, and the accuracy can be maintained for a long time; The chuck has a simple structure, light weight, small moment of inertia, and low energy consumption. |
