Product Description
Auto feeding cnc turning milling carving lathe wood lathe center machine with below functions:
1) Wood lathe cutter: for wood turning, make all regular wooden legs
2) Wood router spindle: Milling+Twisting line+Hollowout+Engraving+Pulling groove+Cylinder engrave
3) Wood Planer: make the irregular furniture wooden legs, chair legs with fast speed and high efficiency
4) Sander optional for polishing
Various of cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc.

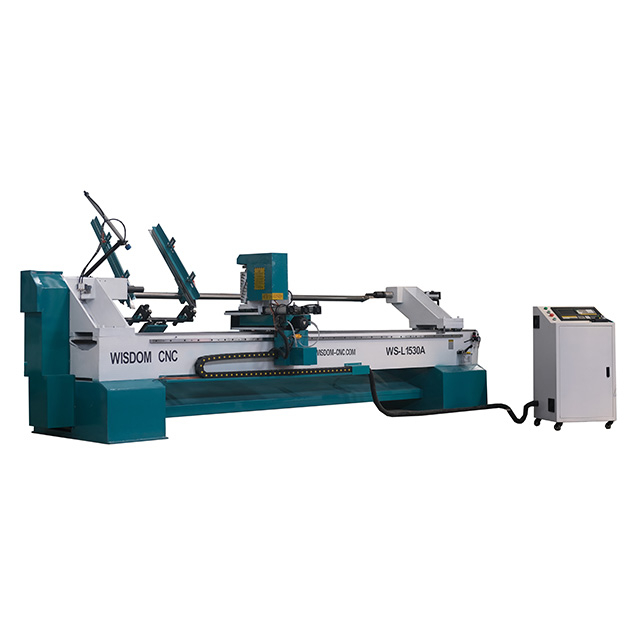

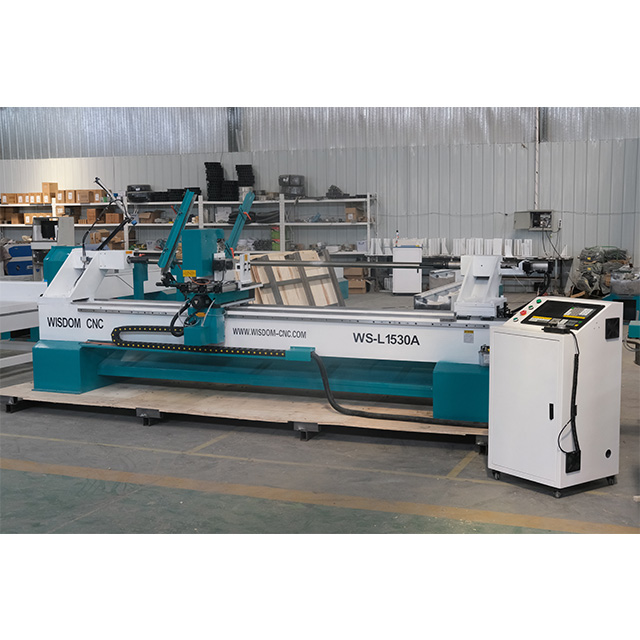

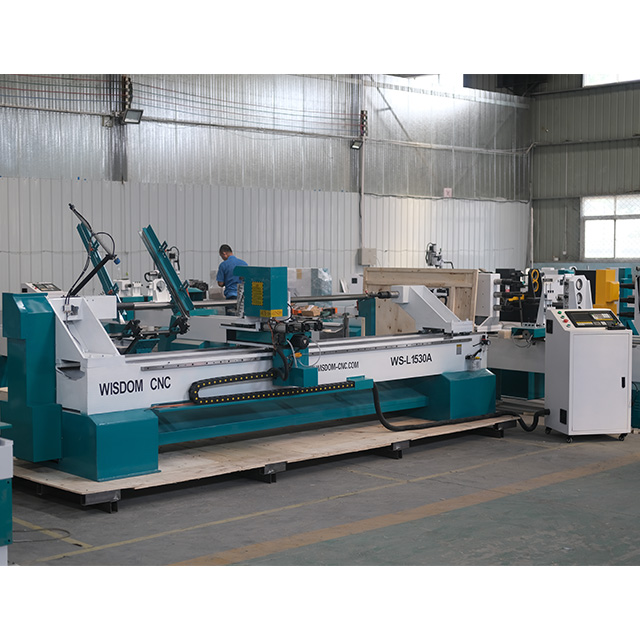

Model | WS-L1530A |
Working size | Max diameter 300-400mm length 1500mm, 2500mm or 3000mm Different size can be done as customized |
Spindle Power | 3.5kw Aircooling spindle (for engraving, broaching, twisting, grooving etc) |
Functions | Turning and milling Automatic loading unloading Spindle engraving carving twisting grooving Planer cutting Option: sanding polishing |
Feeding device | Auto loading unloading materials |
Maximum feed rate | 200cm/min |
Minimum setting unit | 0.01cm |
Control system | Wisdom CNC LCD screen panel |
Support command | G code |
Air pressure | 0.6-0.8Mpa |
Tailstock | Pneumatic material clamping top |
Rail system | Taiwan Hiwin square guide rail Ball screw and rack pinion transmission |
Driving mode | Servo motor and drivers |
Working voltage | 380V or 220V 50/60HZ |
Software | CAD |
Packaging dimension | 320x135x150cm |
Weight | 1600KGS |
Wood Turning | √ |
Wood Milling | √ |
Wood Broaching | √ |
Wood Grooving | √ |
Wood Twisting Line | √ |
Wood Engraving | √ |
Wood Planning | √ |

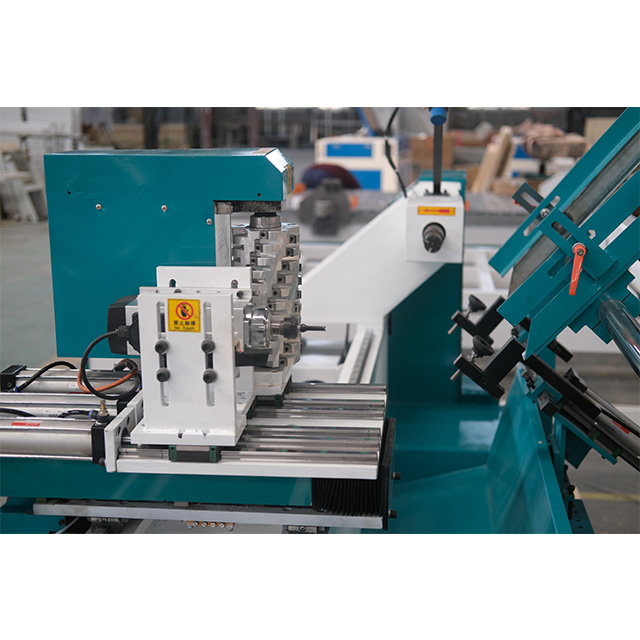

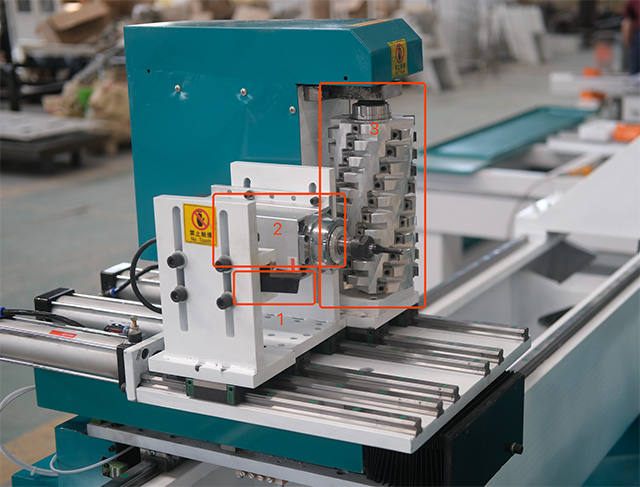

| ◀ Tool1: lathe cutter for turning and milling◀Tool2: 3 axis router spindle for engraving carving and grooving◀Tool3: planer for irregular wood planing and milling |

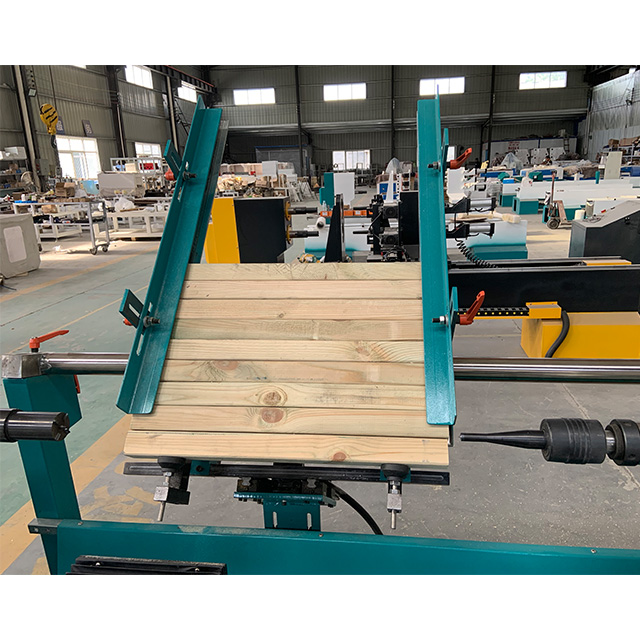

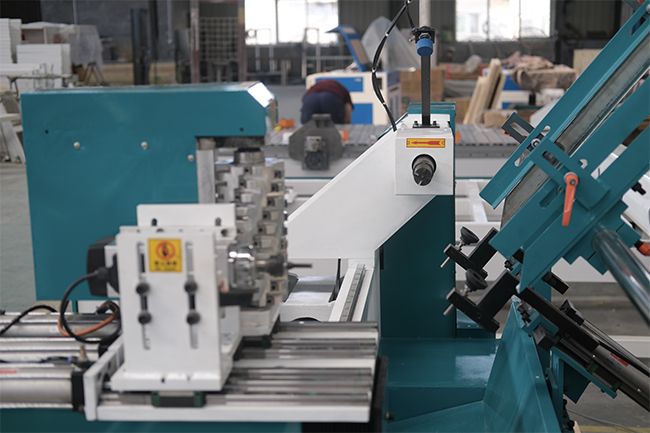

Auto feeding device ▶It will loading unloading materials automatically |  |

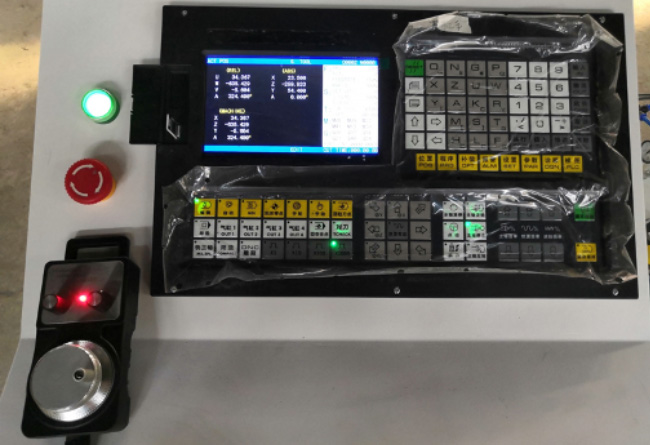

 | ◀Advanced LCD wood lathe control systemVisible screen, show drawing line clearly Easy operation, support CAD software, transfer .dxf files to machine by USB directly. |

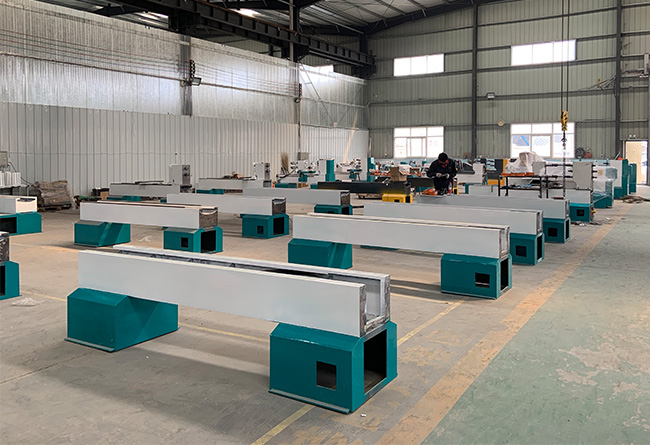

Wholly cast iron lathe bed ▶high temperature annealing and vibrating stress relief, stabilized and will not be deformed forever |  |
 | ◀Transmission systemTaiwan TBI ball screw and Taiwan Hiwin Square guide rail with high precision and long lifetime. |
If you want to know more details of this wood lathe machine, welcome to contact with us now for detailed specifications and special wood lathe machine price.
Wood Lathe Machine Samples
This multifunction wood lathe machine center can make all the kinds of woodworking:
