Product Description
Cutting: The straight-row tool-changing machining center can complete the cutting operation in one go, which is suitable for large-scale production needs.
Drilling and cutting: The equipment is equipped with a high-power tool-changing spindle and a straight-row tool magazine, which is suitable for long-term high-speed cutting and various shapes of engraving and milling processing.
Engraving and modeling: It can engrave complex patterns such as lattices, texts, plaques, reliefs, etc. to meet personalized design needs.
Chamfering and punching: It can perform chamfering and punching operations, which is suitable for the installation hole processing of various furniture connectors.
High-power spindle: Usually equipped with a 9.0KW high-power air-cooled tool-changing spindle, suitable for long-term high-speed cutting and engraving and milling processing.
Vacuum adsorption table: It has a vacuum adsorption table to ensure that small plates do not shift during processing and ensure processing accuracy.
Servo motor: It uses a servo motor with a Xinbao reducer, which has a large torque and ensures the processing speed and stability of the equipment.
Automatic memory function: It has an automatic memory function. There is no need to re-check the mechanical origin when starting the machine again, ensuring the accuracy of the origin position.
| Model | WS-A6090 / WS-A1212 /WS-A1313 /WS-A1515 available |
| Working area | 600*900mm /1200*1200mm /1300*1300mm /1500*1500mm |
| Spindle | 2.2kw /4.5kw /9.0kw |
| Inverter | Fuling |

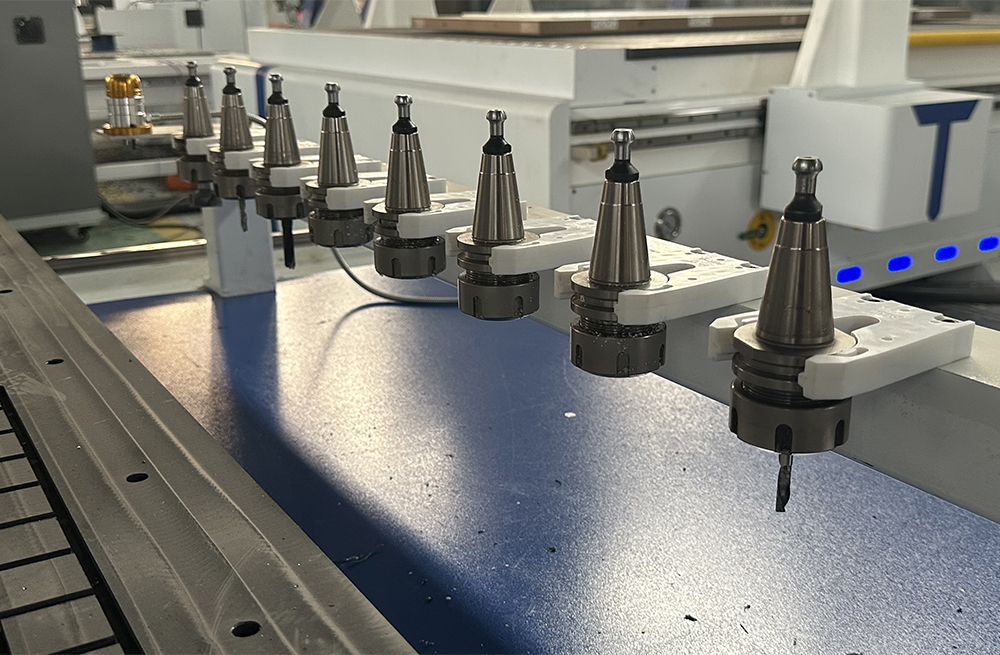

| Tool magazine | Linear tools changer |

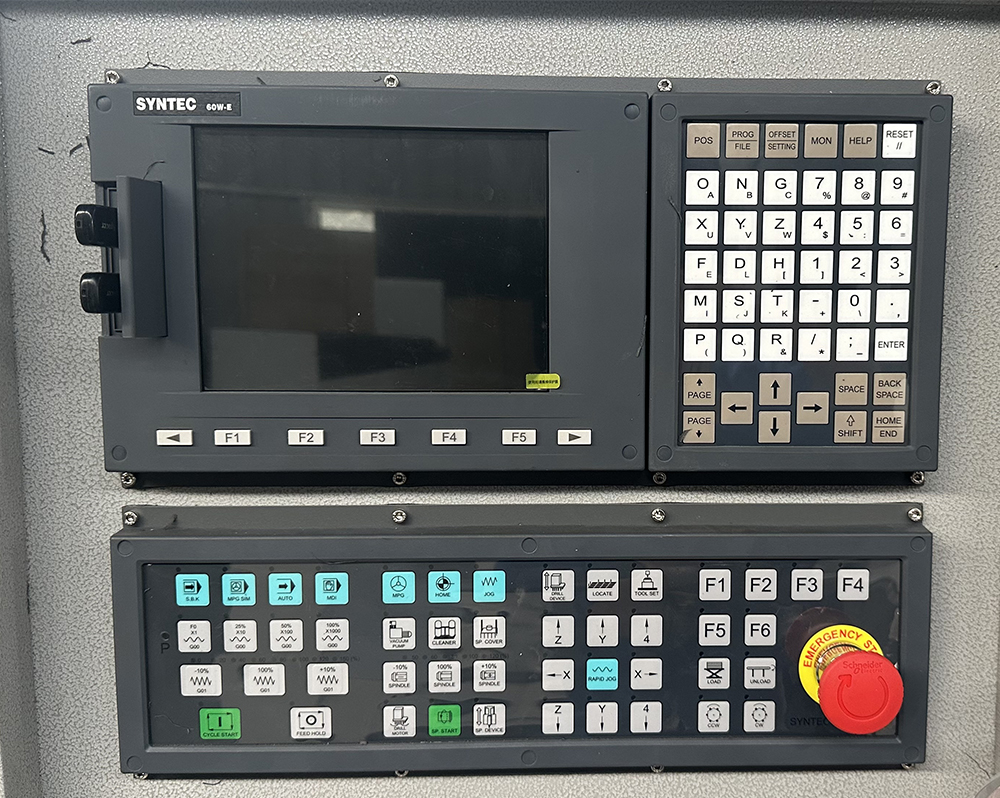

| Control system | Syntec |
| Motor and driver | Servo motors and drivers |
| Working Table | T-slot & Vacuum working table |
| limit switch | Japan OMRON |
| Frame structure | Welded Steel tube |
| Software compatible | Artcam /JDPaint etc |
| Dust collector | 3.0kw |
| Tool sensor | Auto-tool sensor calibration |
| Cabinet | Separated |
