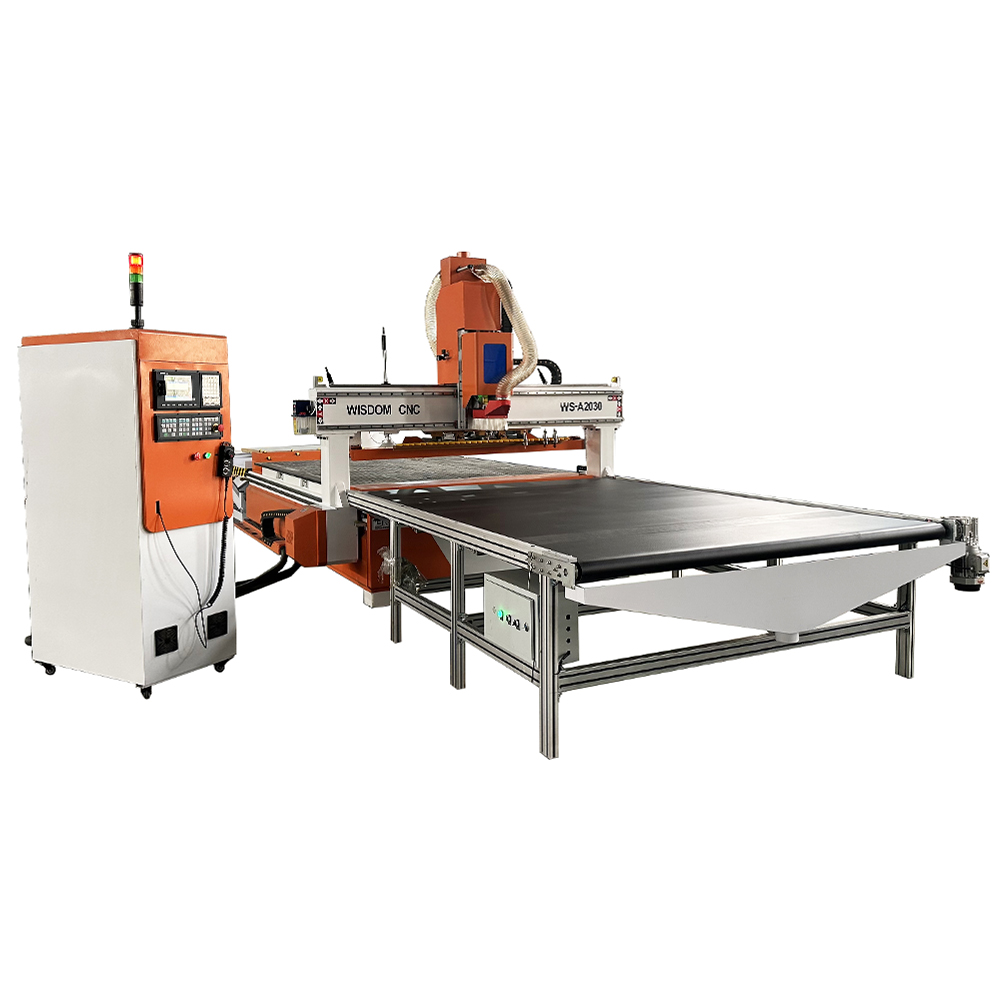

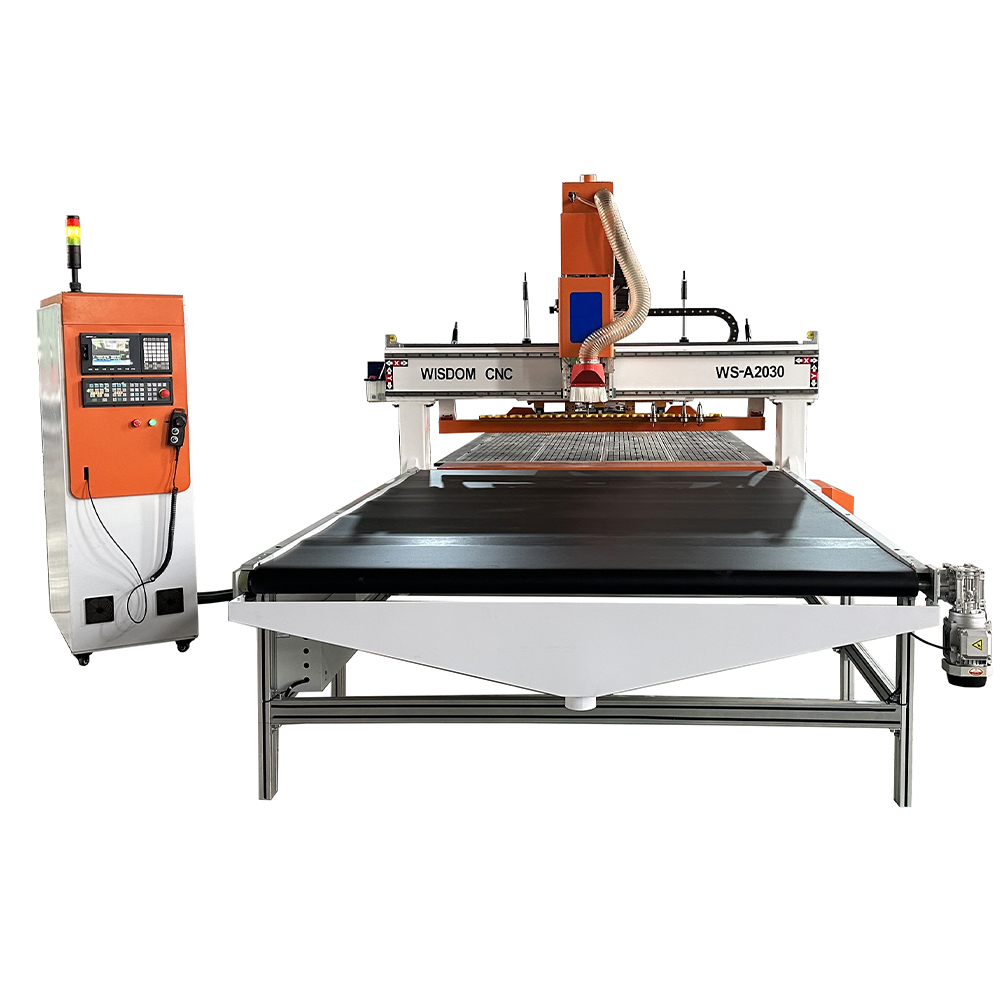

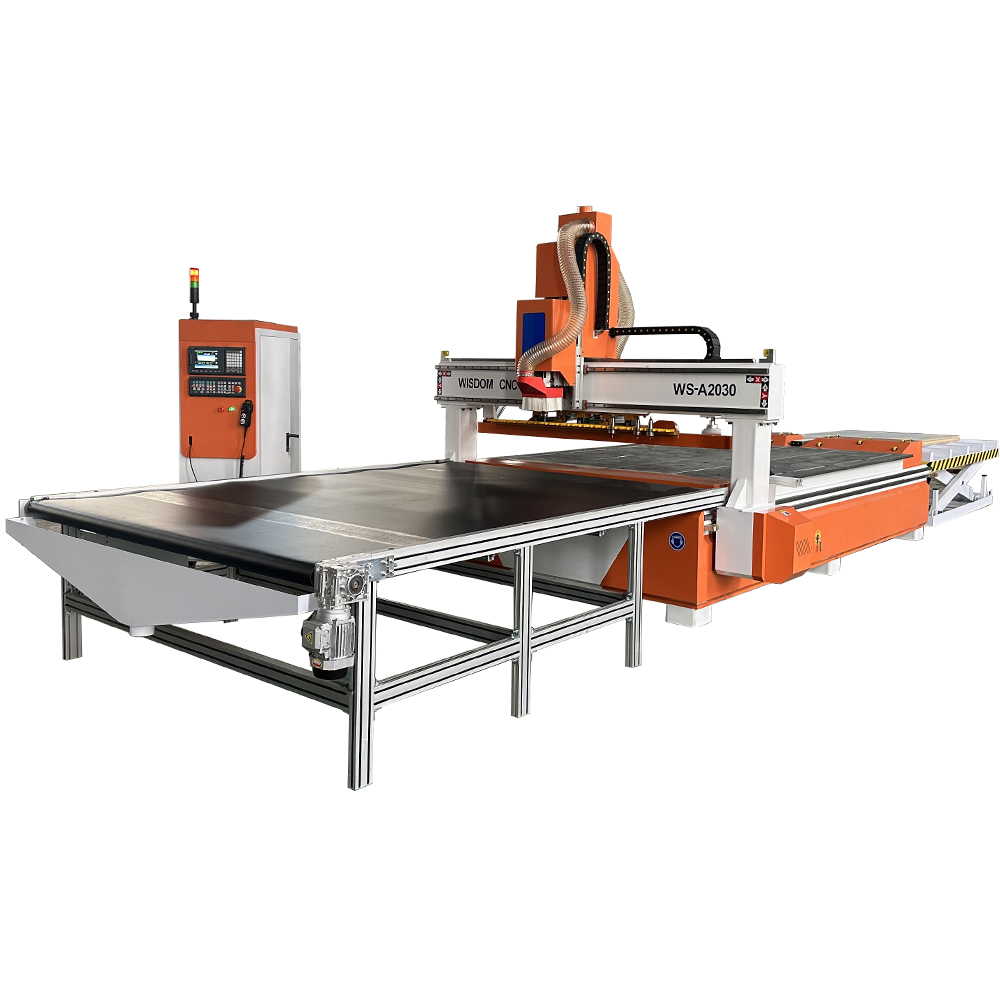

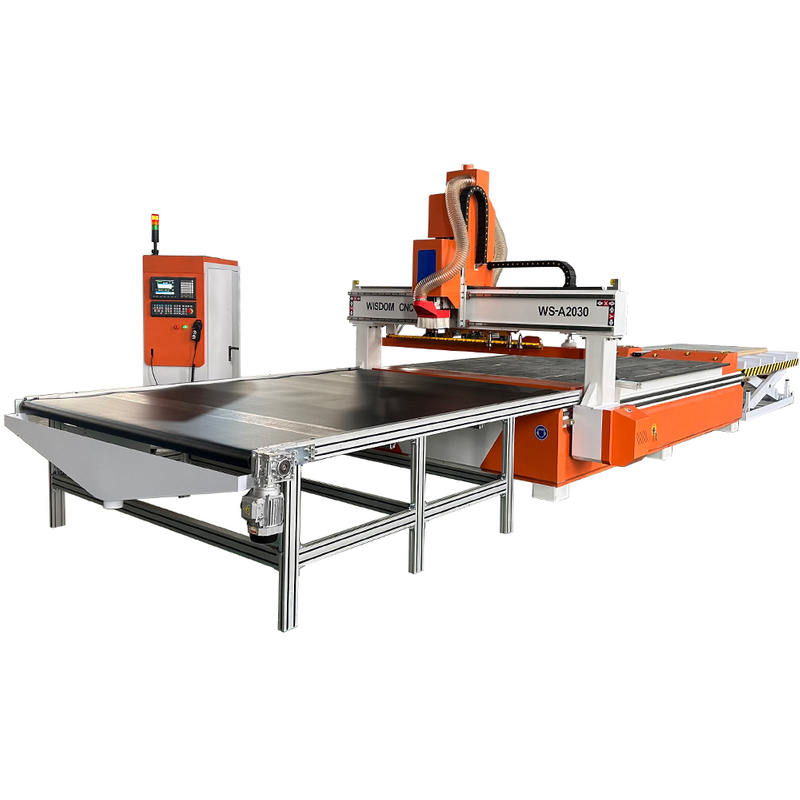

WS-A2030
2000x3000mm
4.5kw/6.0kw/9.0kw HSD
Japan Servo
Syntec
Vacuum
Artcam,JDpaint,Ucancam
Product Description
>Production and processing of various furniture: cabinets, wardrobes, office furniture, computer desks, children's furniture, panel furniture, cutting, grooving and perforating, decorative hollow frames, production of soft bag background walls, etc.;
>Wooden doors and furniture decoration industry: solid wood composite doors, cabinet doors, large-area board carvings, solid wood, panel furniture carvings, solid wood art murals, etc.;
>Wood product processing: clocks, electronic countertops, sporting goods and equipment;
>Musical instrument industry: three-dimensional curved surfaces and shape cutting that can be engraved on musical instruments;
>Crafts industry: photo frames, jewelry boxes.

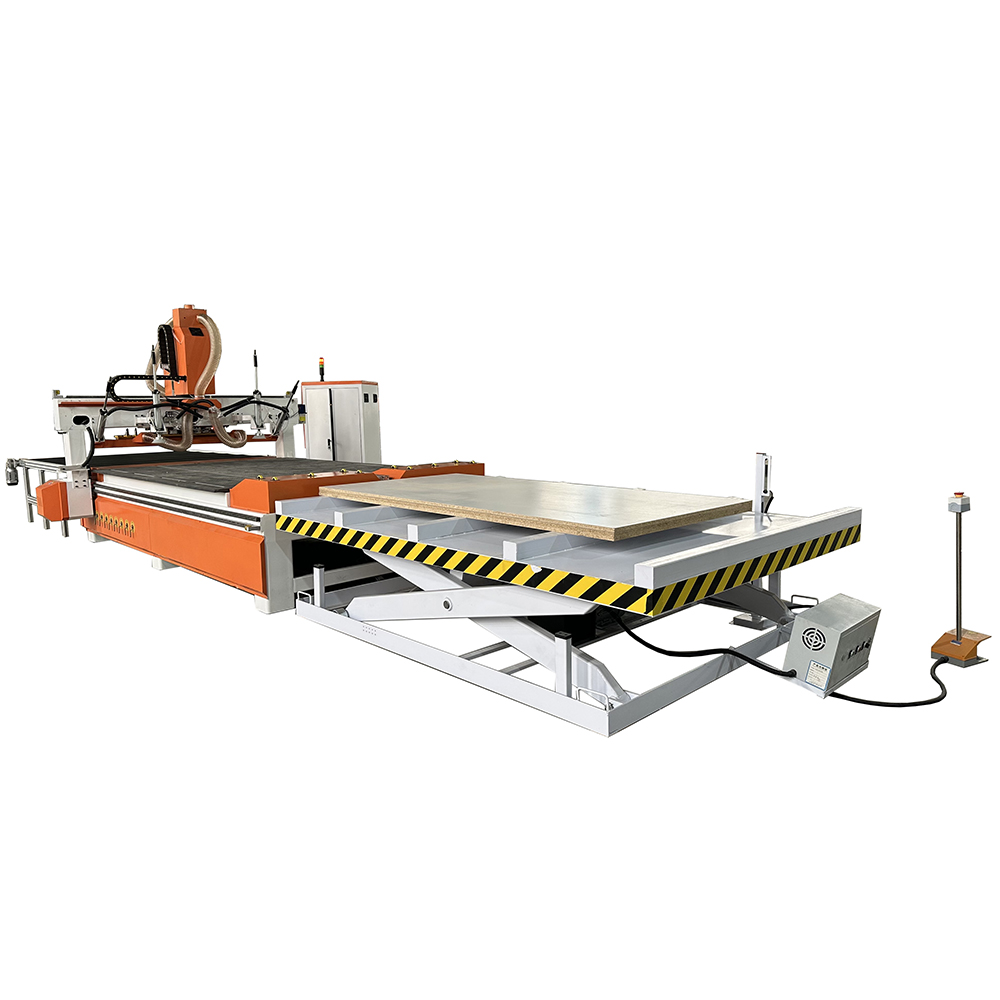

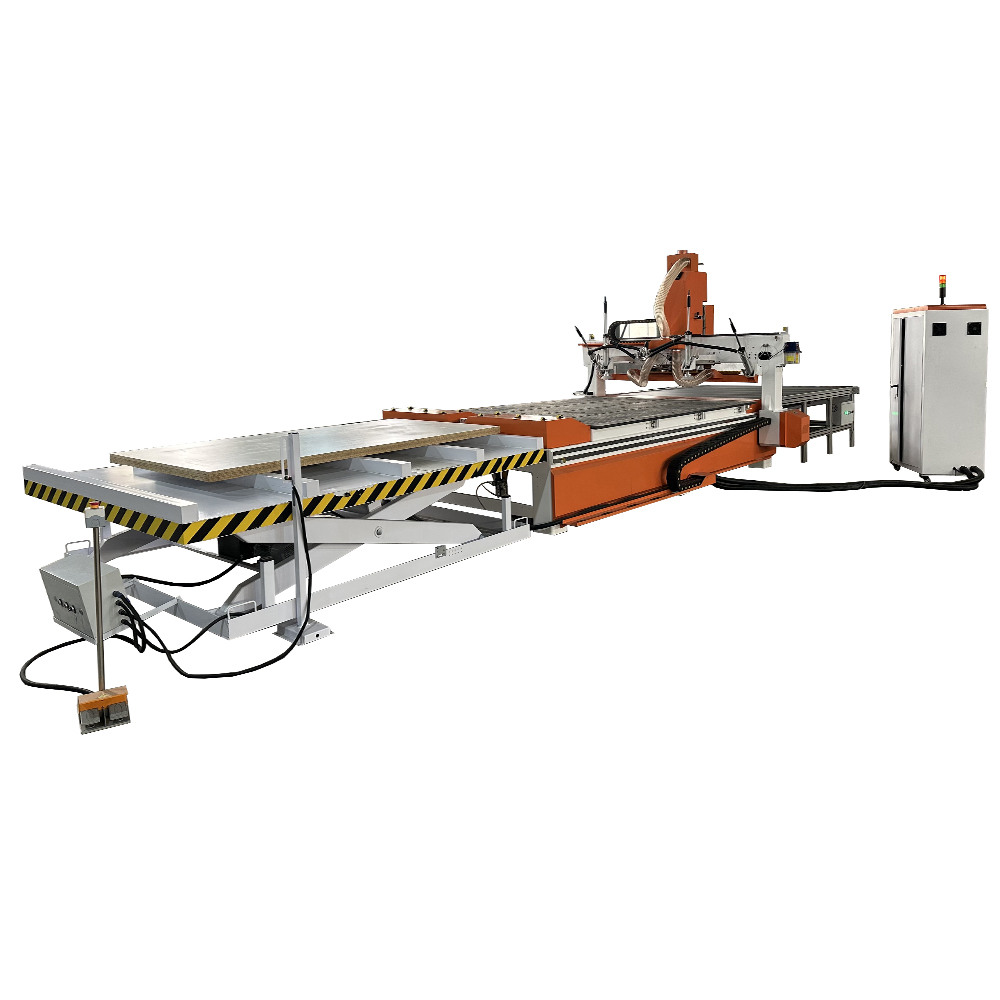

1. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.
2. Adopt 9.0kw powerful air-cooling spindle, automatic tool changer, Servo driving motors, Taiwan Syntec controller, Japan Shimpo reducer and transmissions etc, which ensures high efficiency and long service time.
3. Double layer vacuum table can hold small pieces for excellent cutting, realize all kinds of customized furnitures.
4. High efficiency advanced automatic tool change program, without human intervention, program automatically.
5. Through industrial grade overall welding lathe bed with tempering and aging treatment, deformation is avoided and the stability and processing precision of the machine toolare improved.
6. Truly versatile: nesting, routing, vertical drilling, cutting,side milling and edge grinding all in one. It is well-suited for panel furniture, office furniture, cabinets production.
Working area | 2010x3000x300mm | X x Y x Z |
Spindle | 9.0kw,aircooling | HQD/HSD option |
Collet | ISO30 | |
Inverter | 11.0kw | Fuling |
Tool magazine (ATC) | 8 tools holder | Linear/Carrousel |
Driving system | Servo motor | Japan Shimpo reducer |
Transmission | Linear guide rail X Y Ball screw Y axis | Taiwan Hiwin and TBI brand |
Operation system | Syntec | with hand wheel |
Software compatibility | Artcam,Ucancam,JDPaint,etc. | Support 2D & 3D working |
Working platform | Vacuum +T-slot | vacuum pump |
Gantry | Whole cast steel | With strong rigidity, stable moving |
Lathe bed | Thicken steel tube | Heavy duty, keep high accuracy |
Electronic parts | Schneider | From France |
Limit switch | OMRON | From Japan |
Oil lubrication | Automatic | |
Tool calibration | Automatic | |
Dust collector | 3.0kw | With double bags |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 45000mm/min | |
Max Working speed | 25000mm/min | |
Working voltage | 380V/220V 3PH | 50/60HZ |
 9.0kw air-cooling spindle |  Linear auto tools changer |
 Automatic loading table |  Taiwan Syntec controller |
Automatic oil lubrication |  Automatic tools sensor |
 Vacuum table |  Auto positioning cylinder |
