Product Description

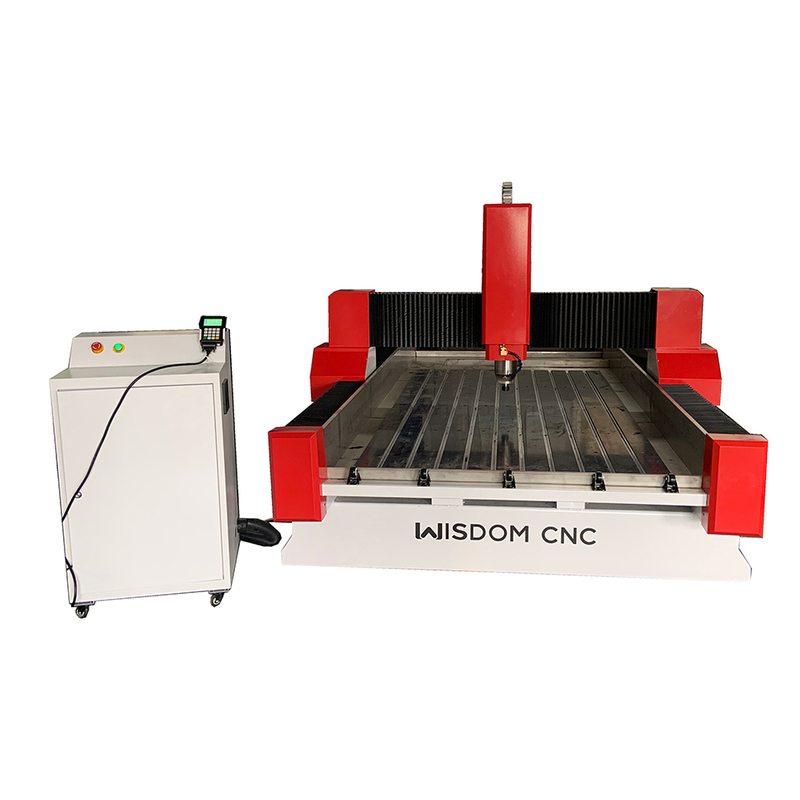

This heavy stone CNC router is mainly used for engraving and carving natural marble, granite, bluestone, sandstone, artifical stone, tombstone, milestone, etc. Water tank and automatic water cooling system make stone processing works easier and more convenient.
Model | WS-S1325 | |
Working area | 1300x2500mm | |
Spindle power | 5.5kw | |
Spindle speed | 0~24000rpm/min | |
Driving system | Stepper motor and drivers | |
Transmission | Taiwan Hiwin Square linear guide rails with X Y axis TBI Ball screw with Z axis | |
Operation system | DSP control system | |
Water table | Groove with water sprayer system | |
Oil lubrication | Automatic | |
Software compatibility | Artcam,Ucancam,JDpaint,etc | |
Working platform | T-slot and stainless steel water groove | |
Lathe bed | Thicken welded steel tube | |
Relocating accuracy | ±0.05 mm | |
Max Moving speed | 25000mm/min | |
Max Working speed | 15000mm/min | |
Working voltage | 380v 220v/ 50/60HZ | |
| ◀ 5.5kw powerful water-cooling spindle |
Feeding roller ▶ |
|

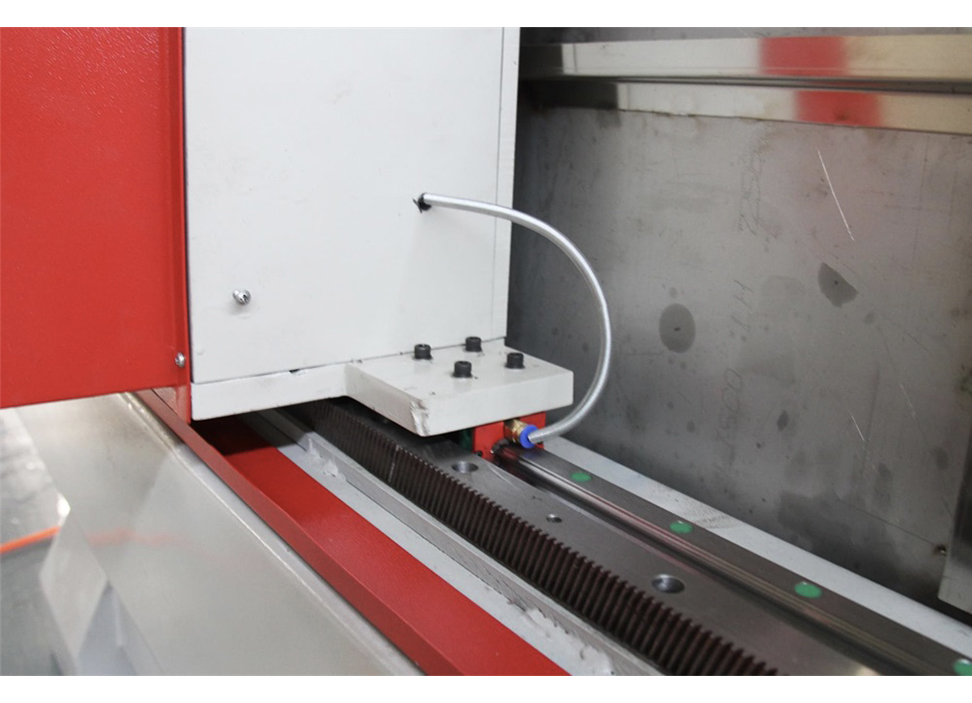

| ◀Hiwin square guide rail and rack pinion transmission system |

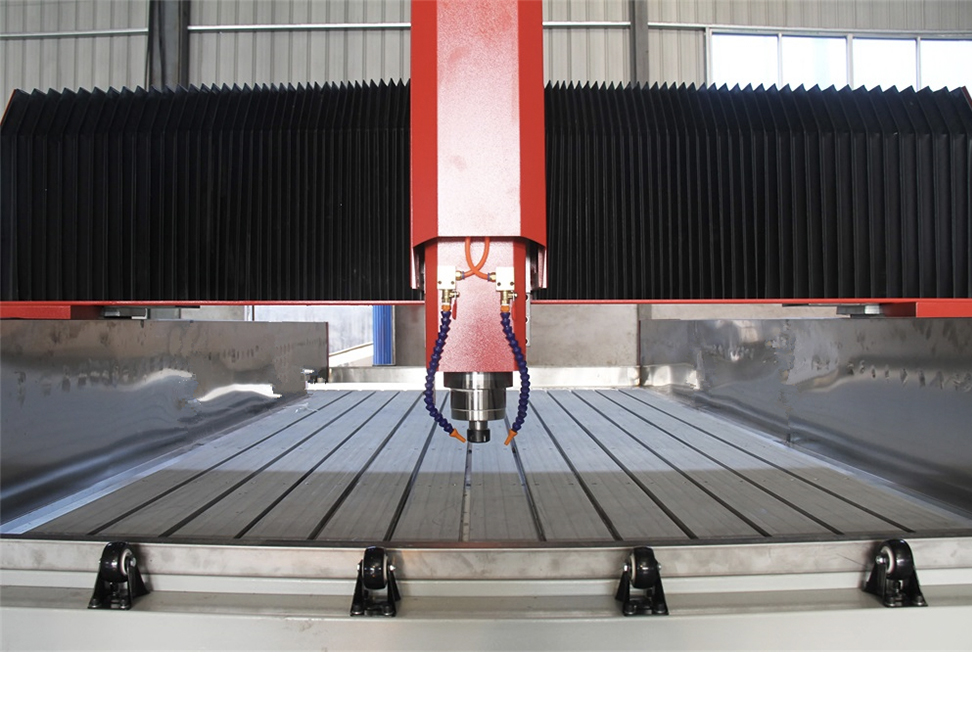

| Stainless steel water groove table ▶ |  |
 | ◀Oil lubrication system |
